Product Model:

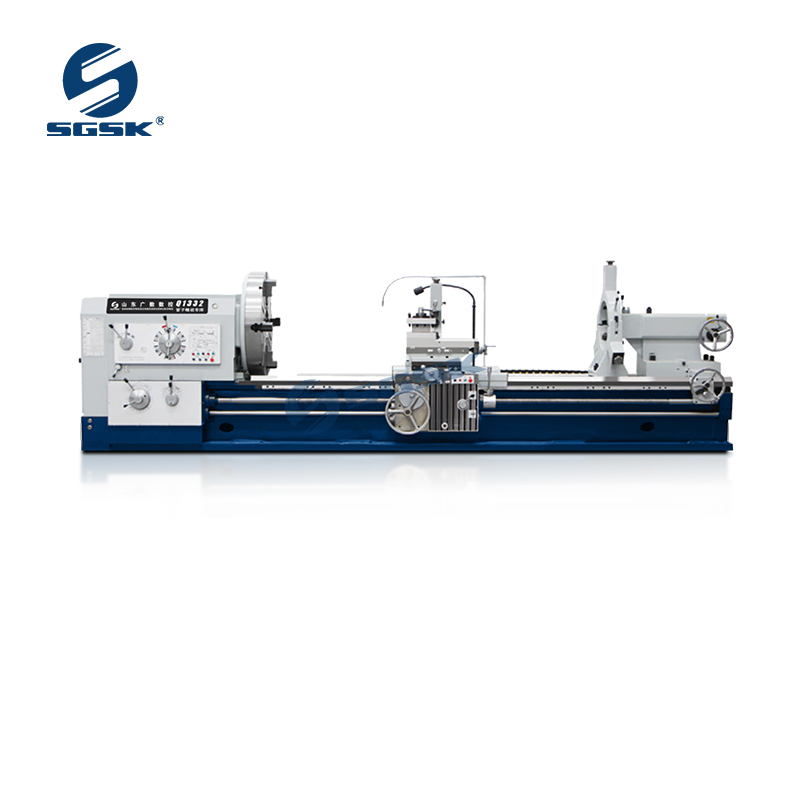

Q1327 Pipe Threading Lathe Machine

Product Main Technical Parameters

 Pipe Threading Lathe Machine Main Performance Characteristics:

Big spindle bore and double chuck allows clamp and process big diameter pipes;

Integral machine bed adopts high strength iron to relize high rigidity and precision;

Ultrasonic requency quenched guide-ways are hard enough for good wear-resistance;

Equiped with taper guide bar device this enables the machine to process taper threads.


 Pipe Threading Lathe Machine Application:

Q1327 heavy duty pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.

This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.


 Pipe Threading Lathe Machine Main Technical Parameters:

SPECIFICATIONSUnitsQ1327
Swing over bedmm800
Swing over cross slidemm480
Distance between centersmm1500/3000
Pipe threading rangemm130-270
Guideway widthmm600
Max. load capacitykg4000
Spindle boremm280
Spindle speed steps-VF. 4 steps
Spindle speed rangerpm20-420
Chuckmmφ630 4-jaw manual
Turret/tool post-Manual 4 position
Tool shank sizemm32 x 32
X axis travelmm420
Z axis travelmm1350/2850
X axis feed steps/rangemm/r22/0.02-0.45
Z axis feed steps/rangemm/r26/0.07-1.33
X axis rapid traversemm/min2300
Z axis rapid traversemm/min4000
Metric thread kinds /rangemm1-15
Inch thread kinds /rangeT.P.I14-1
Tailstock quill diametermm120
Tailstock quill taper-MT6
Tailstock quill travelmm250
Main spindle motorkw15
Rapid traverse motorkw1.1
Coolant pump motorkw0.125
Weight for 1500kg8000
Weight for 3000kg9000
Dimension for 1500mm4100x1700x1600
Dimension for 3000mm5600x1700x1600
Standard accessories:Optional accessories:

Tool post,

Tailstock,

Chuck,

Taper guide bar,

Lighting lamp,

Coolant pump,

Rear support bracket,

Pad iron etc.

Digital readout,

Faceplate,

Chasing dial,

Center rest,

Signal light,

Protective cover(lead-screw,chuck,tool post),

Grinding attachment etc.
