Product Main Technical Parameters

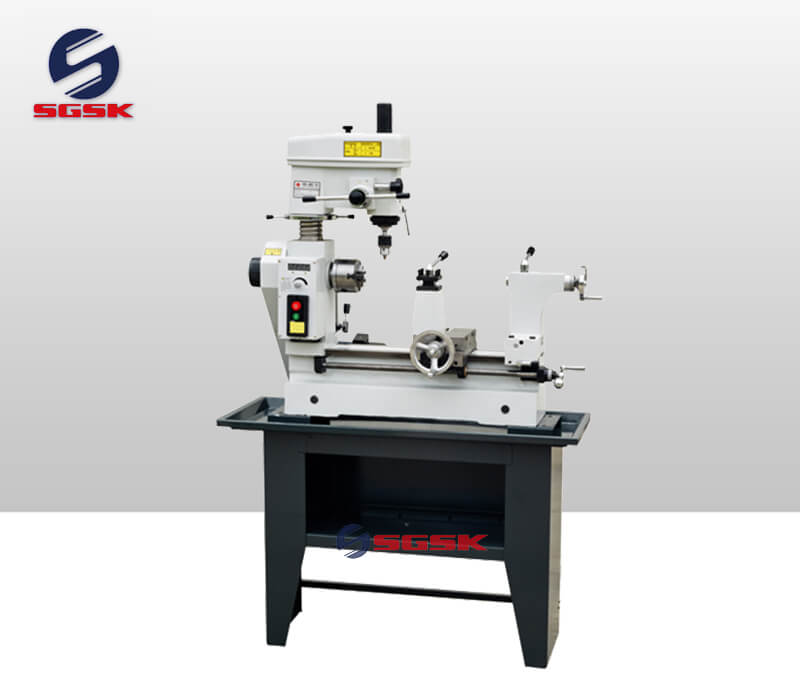

Combination Lathe Milling Machine Features:
Metric or Imperial thread cutting
Combination Metal Lathe/Milling/Drilling/Threading
Various functions, small area occupation and economization
A kind of combination machines with turning, milling, drilling and threading
Combination Lathe Milling Machine Main Technical Specifications:
| Specifications | HQ400(HQ400/1) | |
| TURNING | Swing over bed | φ420mm |
| Distance between centers | 400mm | |
| Max. longitudinal travel | 380mm | |
| Max. cross travel | 120mm | |
| Taper of spindle | M.T.3 | |
| Spindle hole | φ20mm | |
| Step of spindle speed | 3 | |
| Range of spindle speed | 500,900,1600r.p.m | |
| Barrel travel | 70mm | |
| Taper of center | M.T.3 | |
| DRILLING & MILLING | Max. drilling capacity | φ15mm |
| Worktable size (L*W) | 200×150mm² | |
| Max. end mill capacity | φ20mm | |
| Max. face capacity | φ63mm | |
| Spindle travel | 85mm | |
| Headstock travel of up and down | HQ400/1：80mm | |
| Spindle taper | M.T.3 | |
| Step of spindle speed | 6 | |
| Range of spindle speed | 375-1600r.p.m | |
| Swivel angle of headstock | ±360° | |
| MOTOR | Motor power | 0.55Kw |
| SHIPMENT DATA | Packing size | 1030×580×1070mm |
| N. weight/G. weight | 155kg/185kg | |
| Loading amount | 44pcs/20’container | |
