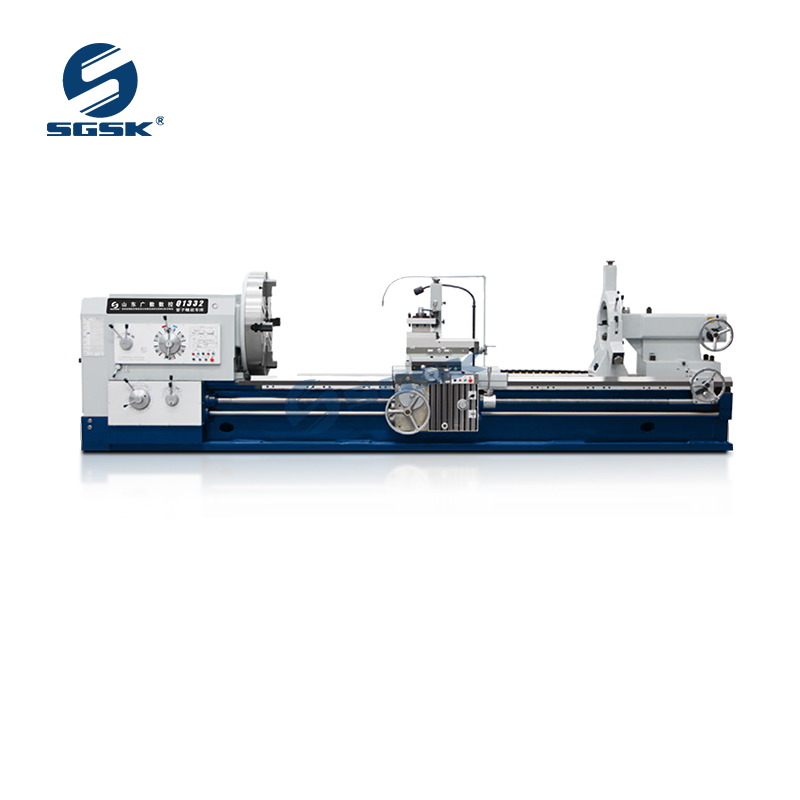

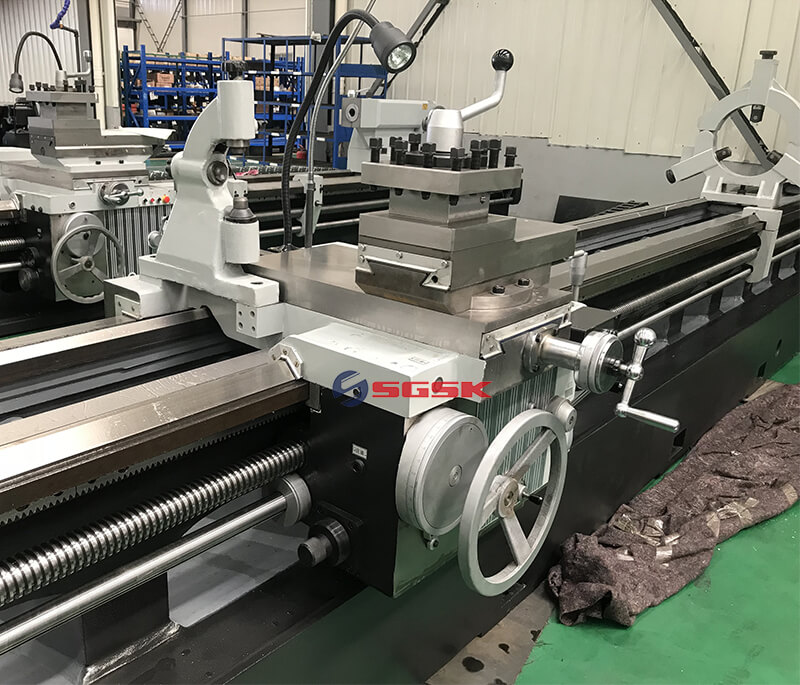

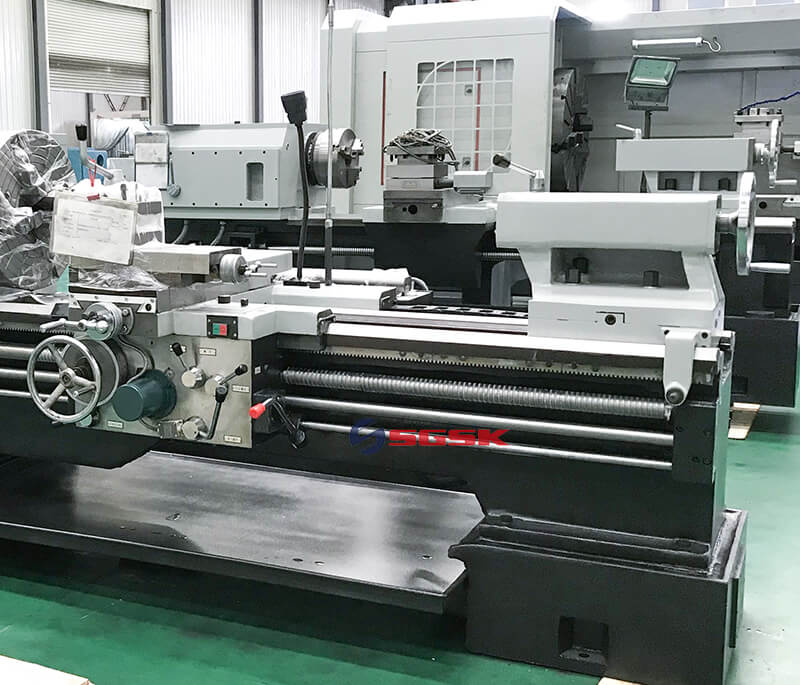

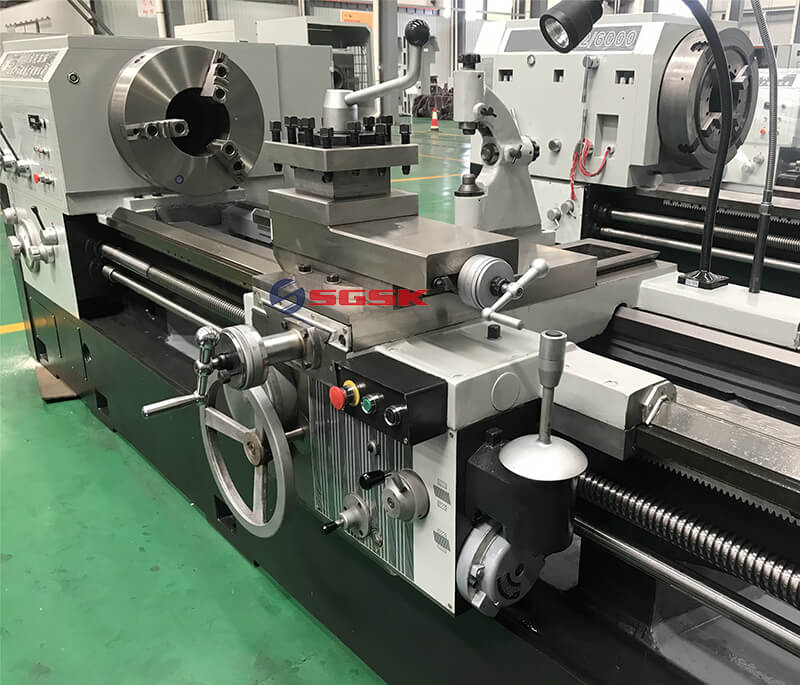

Q1325 Pipe Threading Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Pipe Threading Lathe Machine Main Performance Characteristics：

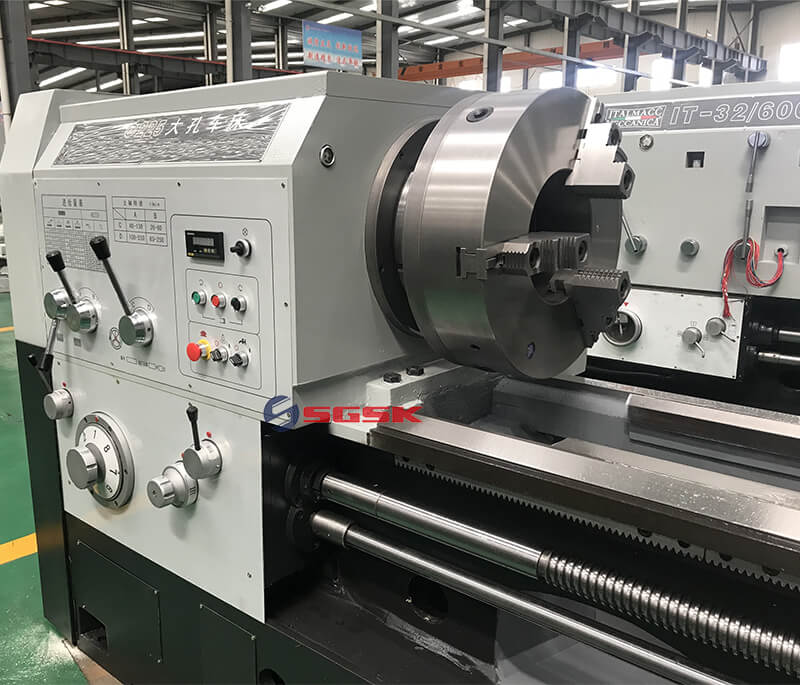

1.Big spindle bore and double chuck allows clamp and process big diameter pipes;

2.Integral machine bed adopts high strength iron to relize high rigidity and precision;

3.Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;

4.Equiped with taper guide bar device this enables the machine to process taper threads.

Pipe Threading Lathe Machine Application:

Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.

This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.

Pipe Threading Lathe Machine Main Technical Parameters:

SPECIFICATIONS	Units	Q1325
Swing over bed	mm	800
Swing over cross slide	mm	480
Distance between centers	mm	1500/3000
Pipe threading range	mm	120-250
Guideway width	mm	600
Max. load capacity	kg	4000
Spindle bore	mm	255
Spindle speed steps	-	VF. 4 steps
Spindle speed range	rpm	20-420
Chuck	mm	φ630 4-jaw manual
Turret/tool post	-	Manual 4 position
Tool shank size	mm	32 x 32
X axis travel	mm	420
Z axis travel	mm	1350/2850
X axis feed steps/range	mm/r	22/0.02-0.45
Z axis feed steps/range	mm/r	26/0.07-1.33
X axis rapid traverse	mm/min	2300
Z axis rapid traverse	mm/min	4000
Metric thread kinds /range	mm	1-15
Inch thread kinds /range	T.P.I	14-1
Tailstock quill diameter	mm	120
Tailstock quill taper	-	MT6
Tailstock quill travel	mm	250
Main spindle motor	kw	15
Rapid traverse motor	kw	1.1
Coolant pump motor	kw	0.125
Weight for 1500	kg	8000
Weight for 3000	kg	9000
Dimension for 1500	mm	4100x1700x1600
Dimension for 3000	mm	5600x1700x1600
