Product Main Technical Parameters

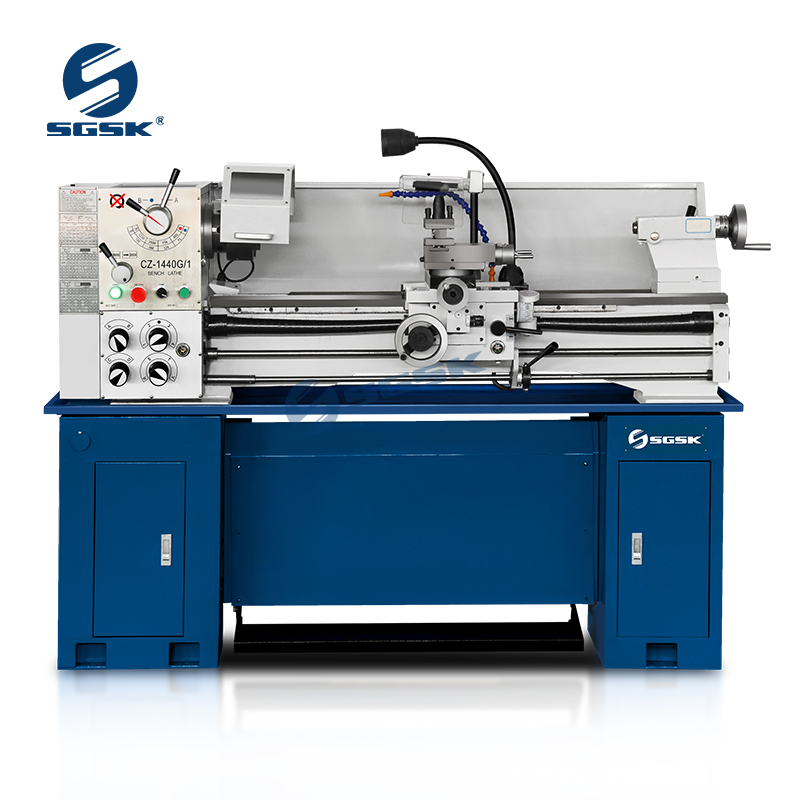

Bench Lathe Machine Main Technical Parameters:
| Specifications | CZ1340V | CZ1440V | |
| Swing over bed | mm | 330 | 350 |
| Swing over carriage | mm | 195 | 220 |
| Swing over gap | mm | 476 | 500 |
| Width of bed-way | mm | 186 | |
| Distance between centers | mm | 1000 | |
| Spindle taper | MT5 | ||
| Spindle bore | mm | 38 | 51 |
| Step of speed | 8 | 8 | |
| Range of speed | rpm | 70-2000 | 84-1850 |
| Head nose | D1-4 | D5 with D5’ chuck | |
| Metric thread | mm | 26 kinds(0.4-7) | |
| Inch thread | TPI | 34 kinds(4-56) | |
| Module thread | MP | 16 kinds(0.35-5) | |
| Diametral thread | DP | 36 kinds(6-104) | |
| Longitudinal feeds | mm/r | 0.052-1.392(0.002’’-0.0548’’) | 0.091-2.533(0.0036’’-0.1005’’) |
| Cross feeds | mm/r | 0.014-0.38(0.00055’’-0.015’’) | 0.025-0.69(0.0012’’-0.0345) |
| Diameter of lead screw | mm | 22 | |
| Pitch of lead screw | 3mm or 8 T.P.I | ||
| Saddle travel | mm | 1000 | |
| Cross travel | mm | 170 | 160 |
| Compound travel | mm | 74 | 70 |
| Barrel travel | mm | 95 | |
| Barrel diameter | mm | 32 | |
| Taper of center | mm | MT3 | |
| Motor power | Kw | 1.5(2HP) | |
| Coolant motor | Kw | 0.04(0.055HP) | |
| Machine(L×W×H) | mm | 1920x760x760 | |
| Stand (right)(L×W×H) | mm | 440x410x700 | |
| Stand (right)(L×W×H) | mm | 370x410x700 | |
| Machine(N.W/G.W) | Kg | 505/565 | |
| Stand(N.W/G.W) | Kg | 70/75 | |
| Standard accessories: | Optional accessories : |

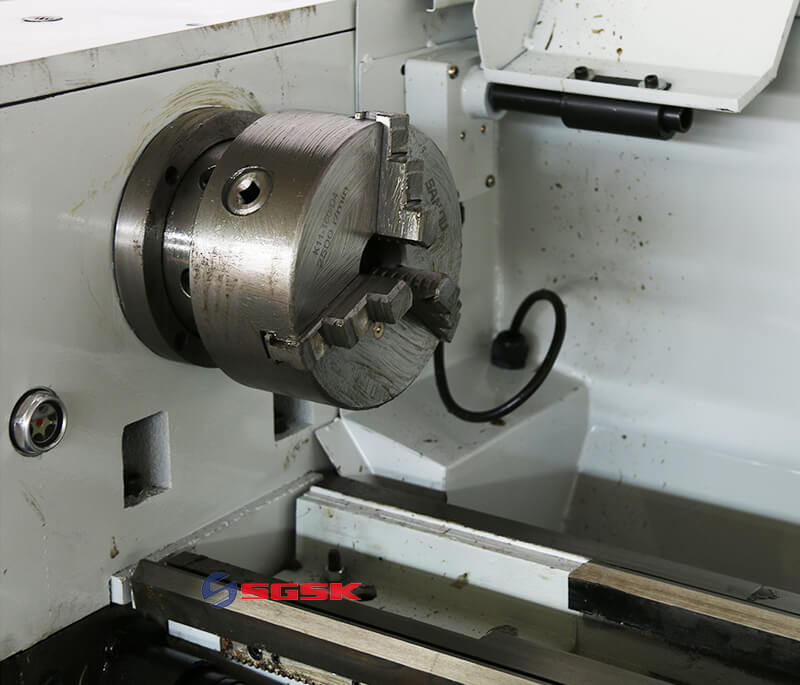

Stand, 3 jaw chuck, Work lamp, Coolant pump, Brake, Dead center , Manual tailstock , | Drill chuck, Lead screw guard, Taper shank, Tool post guard, Live centers, Chuck guard, Face plate, Taper attachment, Back plate |
