Product Model:

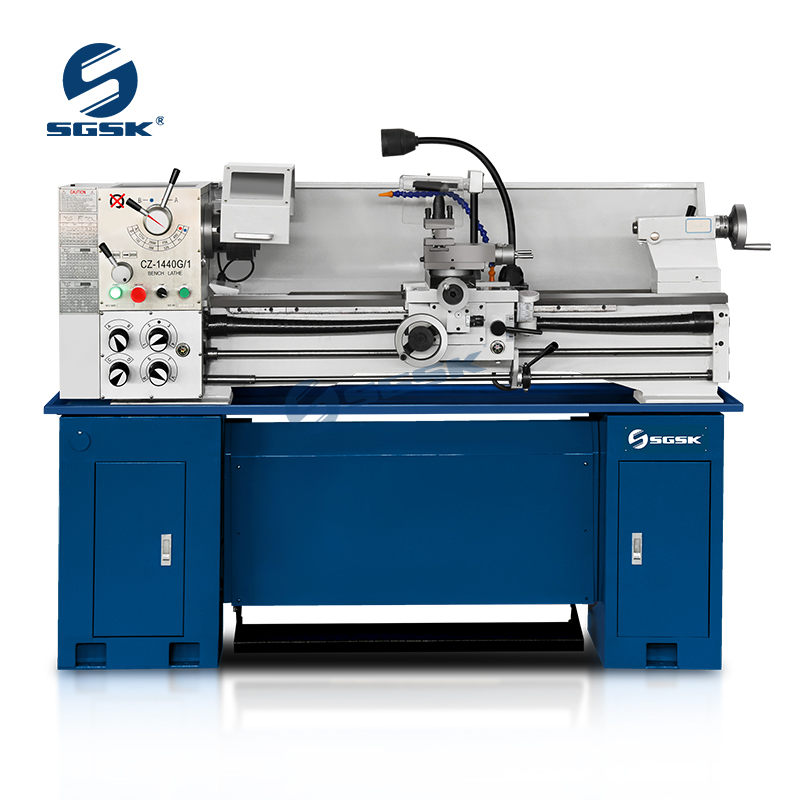

CZ1340A CZ1440A Bench Lathe Machine

Product Main Technical Parameters

Bench Lathe Machine Main Performance Characteristics:

The clutch inside headstock realize the spindle to change FWD/REV direction.

It avoids electric motor to be changed frequently

Supersonic frequency hardened bed ways

Precision roller bearing for spindle

High quality steel, ground and hardened gear inside headstock

Easy and fast operating gear box

Enough strong power motor

ASA D4 camlock spindle nose

Various thread cutting available


Bench Lathe Machine Main Technical Parameters:

ITEM
CZ1340ACZ1440A
Swing over bedmmφ330φ350
Swing over carriagemmφ195φ215
Swing over gapmmφ476φ500
Width of bed-waymm186186
Distance between centersmm10001000
Taper of spindle
M.T.5M.T.5
Spindle diametermmφ38φ38
Step of speed
1818
Range of speedrpmLow step  60~1100Low step  60~1100
High step  85~1500High step  85~1500
Head
D1-4D1-4
Metric thread
26kinds (0.4~7mm)26kinds (0.4~7mm)
Inch thread
34kinds(4~56T.P.I)34kinds(4~56T.P.I)
Moulder thread
16 kinds(0.35~5M.P)16 kinds(0.35~5M.P)
Diametral thread
36 kinds(6~104D.P)36 kinds(6~104D.P)
Longitudinal feedsmm/r0.052~1.392 (0.002”~0.0548”)0.052~1.392 (0.002”~0.0548”)
Cross feed smm/r0.014~0.38 (0.00055”~0.015”)0.014~0.38 (0.00055”~0.015”)
Diameter lead screwmmφ22(7/8”)φ22(7/8”)
Pitch of lead screw
3mm or 8T.P.I3mm or 8T.P.I
Saddle travelmm10001000
Cross travelmm170170
Compound travelmm7474
Barrel travelmm9595
Barrel diametermmφ32φ32
Taper of centermmM.T.3M.T.3
Motor powerKw1.5(2HP)1.5(2HP)
Motor for coolant system’s powerKw0.04(0.055HP)0.04(0.055HP)
Machine(L×W×H)mm1920×760×7601920×760×760
Stand(left) (L×W×H)mm440×410×700440×410×700
Stand (right)(L×W×H)mm370×410×700370×410×700
MachineKg500/560505/565
StandKg70/7570/75



Standard accessories:Optional accessories :

Stand,

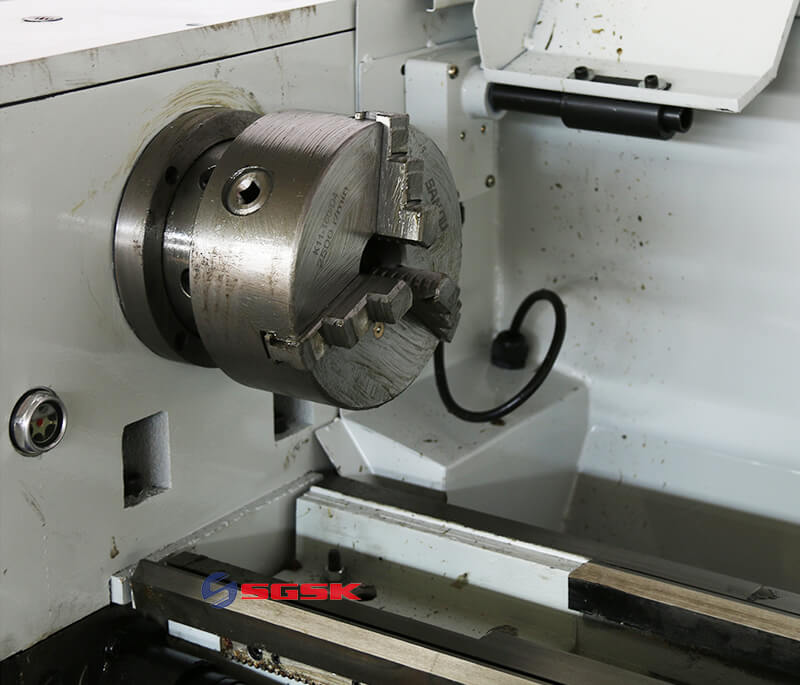

3 jaw chuck,

Dead center ,

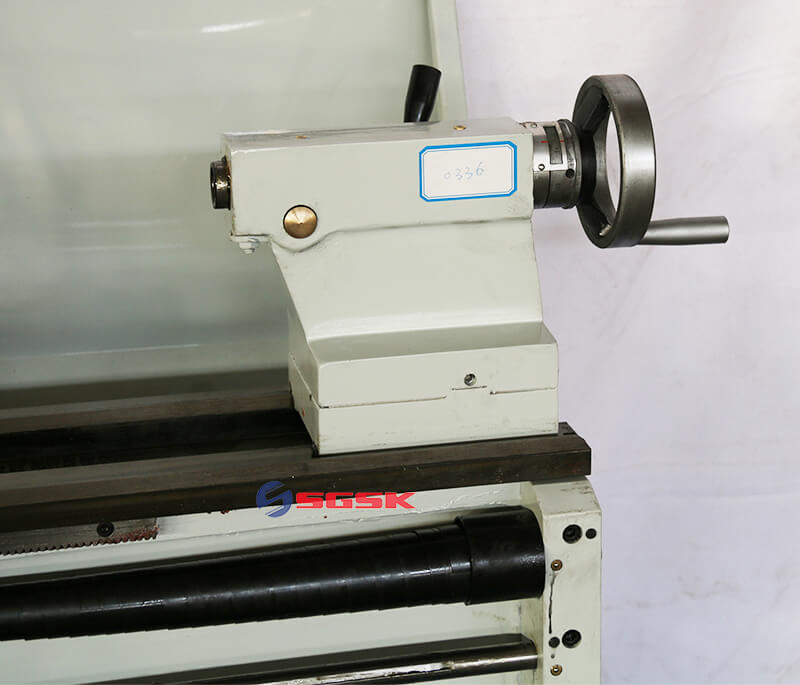

Manual tailstock,

Work lamp,

Coolant pump,

Drill chuck,

Lead screw guard,

4 jaw chuck seat,

Taper shank,

Tool post guard,

Live centers,

Chuck guard,

Face plate,

Taper attachment,

Back plate,

Foot brake,
