Product Main Technical Parameters

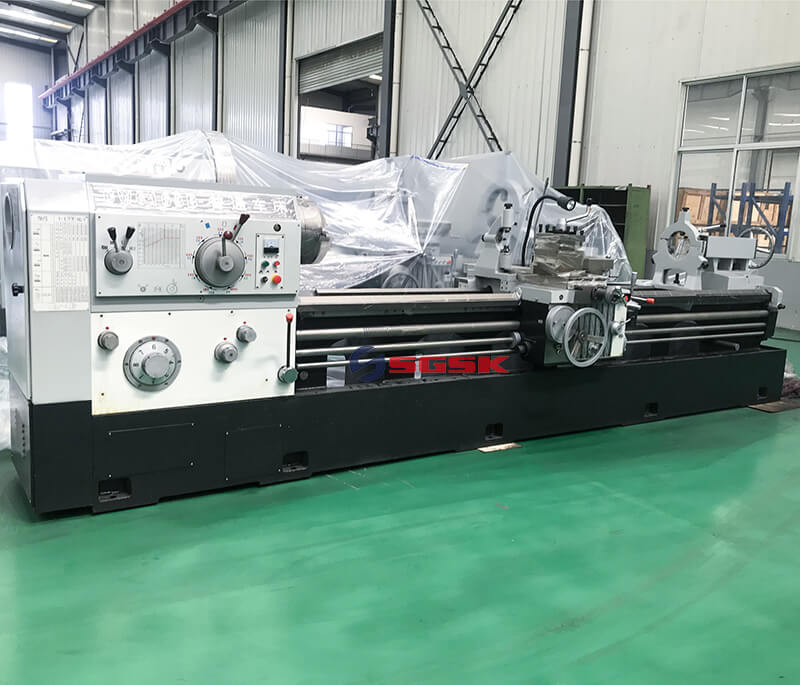

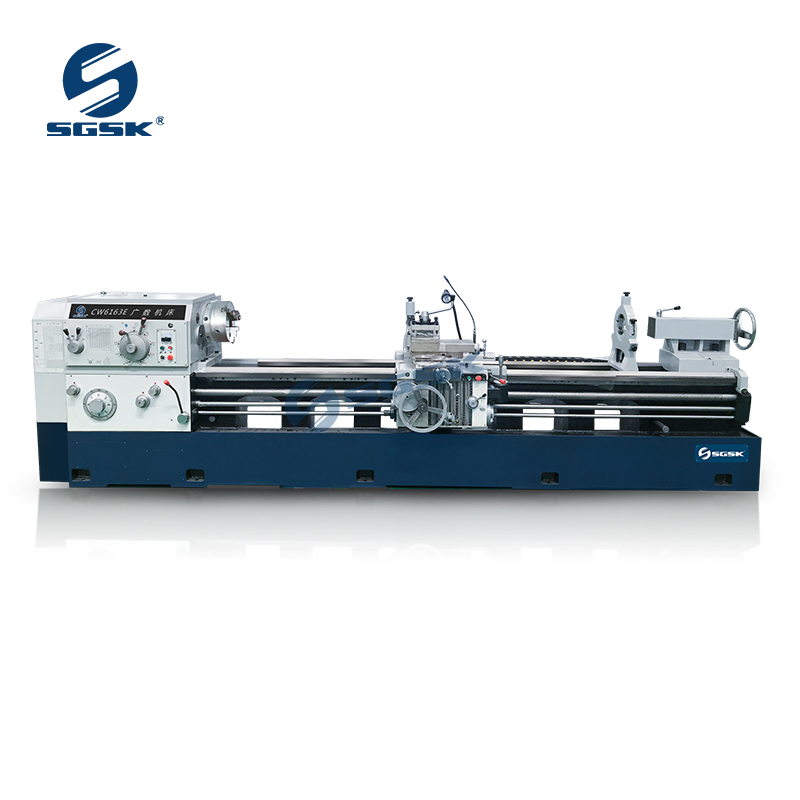

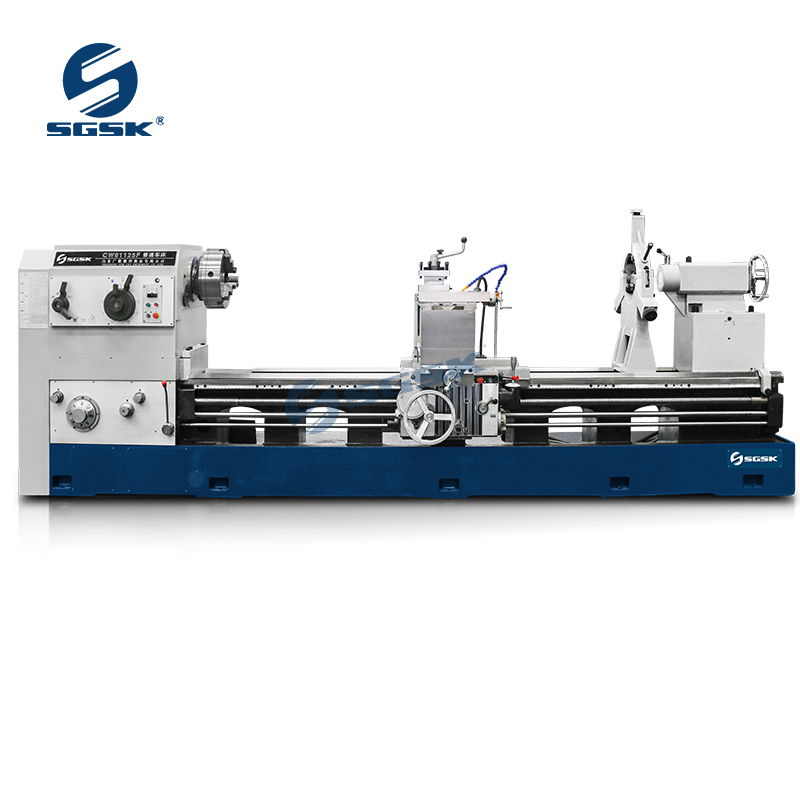

Heavy Duty Lathe Machine Featuers:
1. One-piece bed adopts high strength iron to ensure rigidity and precision
2. Ultrasonic frequency quenched guide-ways ensure good wear-resistance
3. Headstock gears hardened and ground to achieve precision and low noise
Heavy Duty Lathe Machine Main Technical Specification:

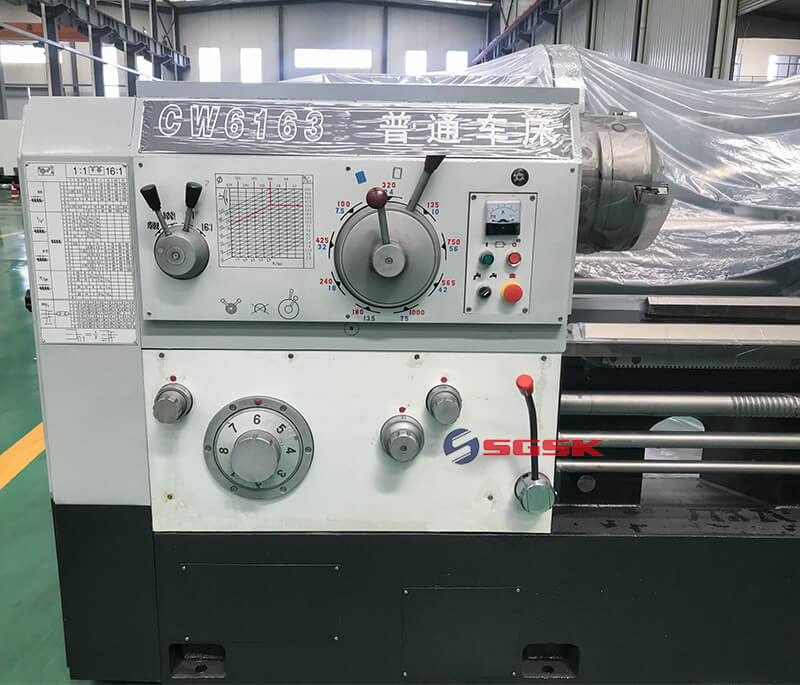

| Specification | Unit | CW6163E | CW6263E |
| Swing over bed | mm | 630 | |
| Swing over gap | mm | - | 800 |
| Swing over cross slide | mm | 350 | |
| Distance between centers | mm | 1500/2000/3000/4000/5000/6000 | |
| Guideway width | mm | 550 | |
| Max. load capacity | T | 3 | |
| Spindle bore | mm | 104 | |
| Spindle bore taper | - | Metric φ120/MT5 | |
| Spindle nose type | - | C11 | |
| Spindle speed steps | - | FWD. 18 steps | |
| Spindle speed range | rpm | 7.5-1000 | |

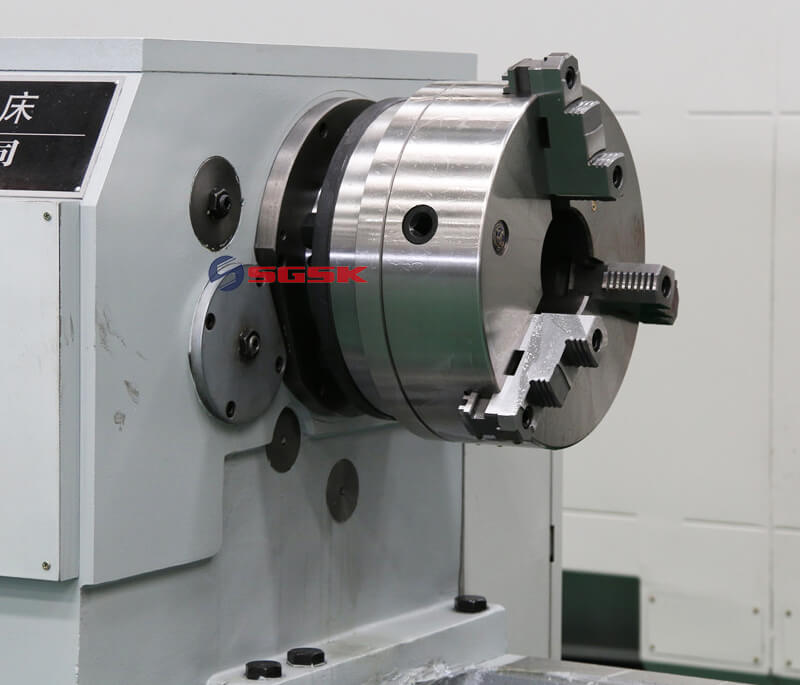

| Chuck | mm | φ315 3-jaw manual | |
| Turret/tool post | - | Manual turret 4 position | |
| Tool shank size | mm | 30 x 30 | |
| X axis travel | mm | 320 | |
| Z axis travel | mm | 1350/1850/2850/3850/4850/5850 | |
| X axis feed grade/range | mm/r | 64/0.05-12.15 | |
| Z axis feed grade/range | mm/r | 64/0.1-24.3 | |
| X axis rapid traverse | mm/min | 2300 | |
| Z axis rapid traverse | mm/min | 4000 | |
| Metric thread grade/range | mm | 50/1-240 | |
| Inch thread grade/range | T.P.I | 26/14-1 | |
| Module thread grade/range | mm | 53/0.5-120 | |
| DP thread grade/range | D.P. | 24/28-1 | |
| Tailstock quill diameter | mm | φ100 | |
| Tailstock quill taper | - | MT5 | |
| Tailstock quill travel | mm | 250 | |
| Main spindle motor | kW | 11 | |
| Rapid traverse motor | kW | 1.1 | |
| Coolant pump motor | kW | 0.125 | |
| Width x Height | mm | 1400 x 1450 | |
