Product Model:

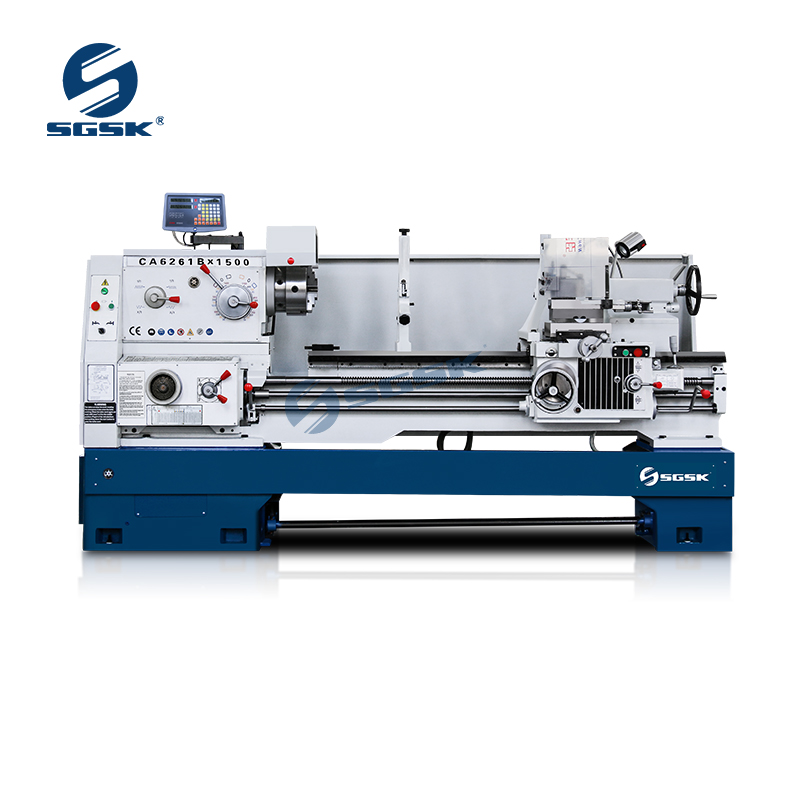

CA6261 Gap Bed Lathe Machine

Product Main Technical Parameters

Gap Bed Lathe Machine Main Performance Characteristics

1 Machine tool bed box, headstock and tailstock, pallet etc. the binding surface between the manual scraping machine, after rigorous testing, the precision and stability of the effective guarantee machine.

2 The machine adopts high strength cast iron, copper and chromium added special materials, bed width 400mm, bed rail quenching depth 4mm, effectively improve the wear resistance and stability of machine tool.

3 Machine tool bed box lubricated system by the use of the lubrication of the pump for lubrication, for the hot weather, to ensure the cleanliness of the bed box and heat dissipation characteristics, effectively extend the bearing and gear life.

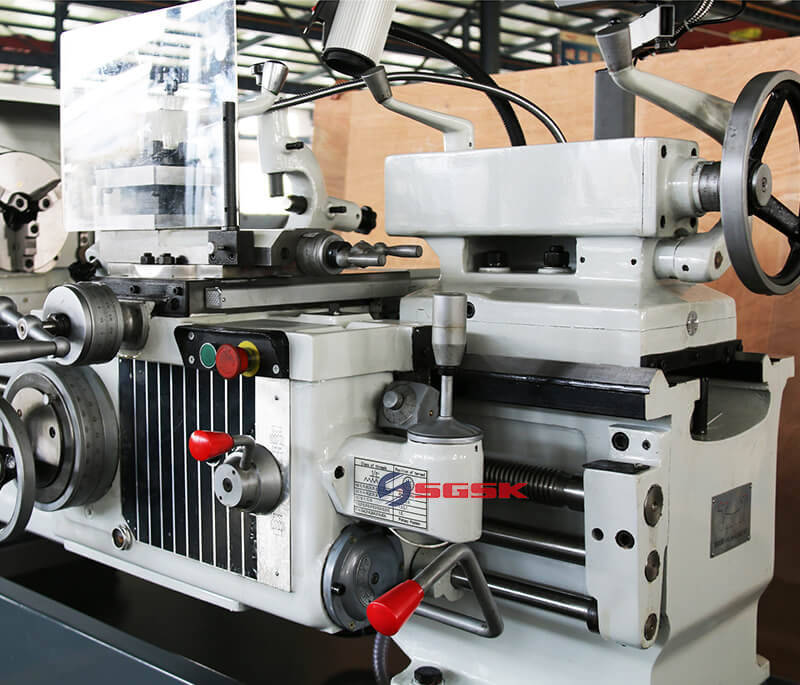

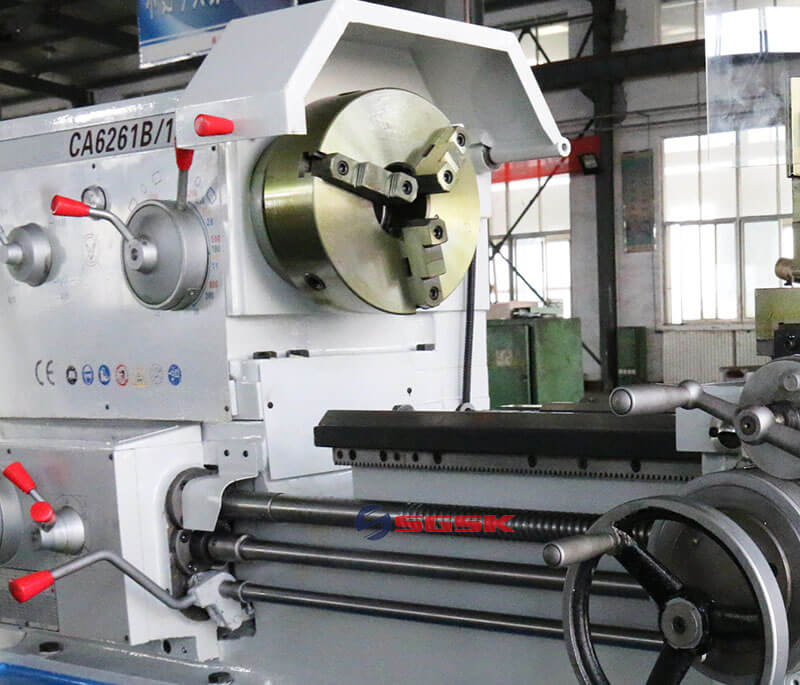

4 Machine tool spindle using Wafangdian bearing, spindle hole diameter 52mm, the precision grinding machine tool gear, effectively improve the hardness, reduce machine noise.

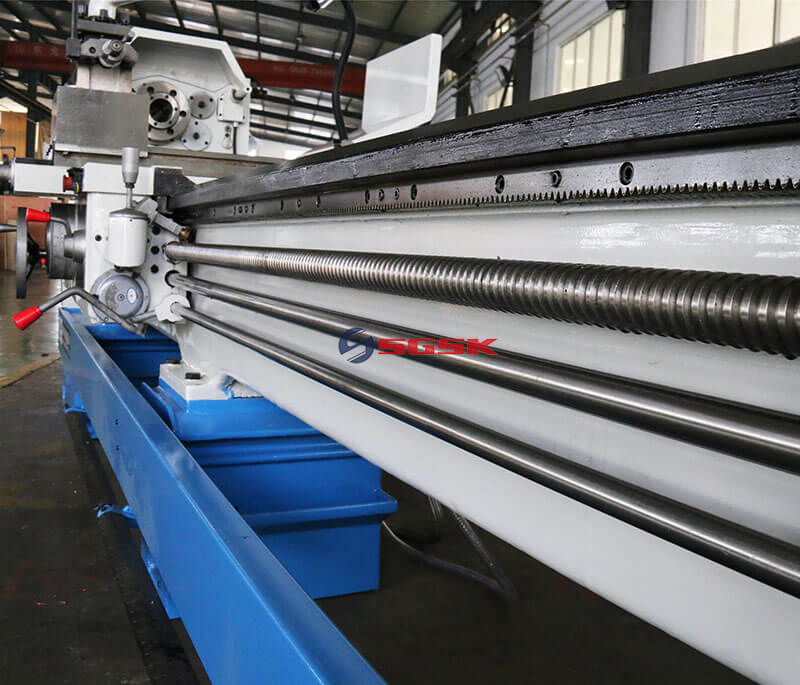

5 Machine tool uses the domestic brand screw, wire mother uses the high quality bronze alloy to guarantee the wear resistance and the accuracy retention.

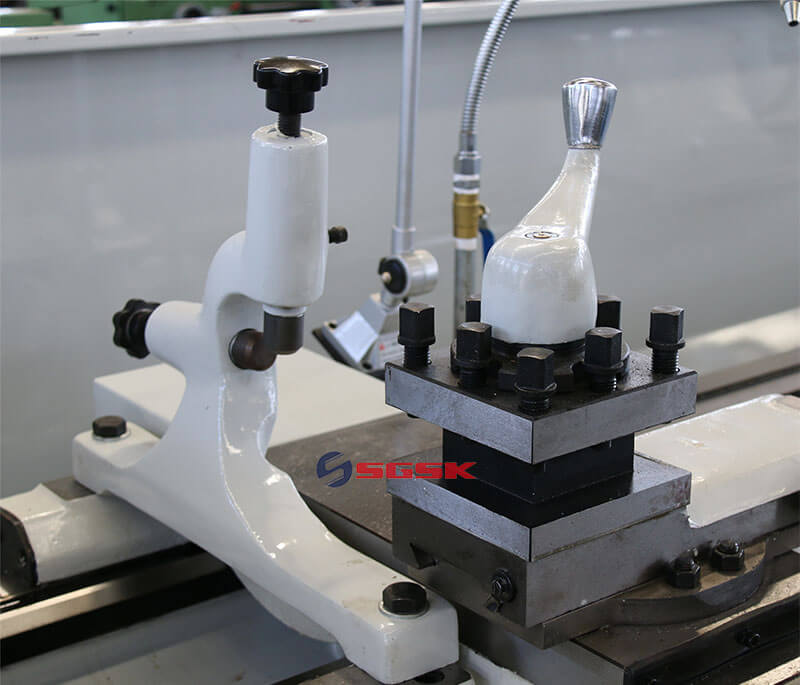

6 Machine tool with four position high strength tool, shank size: 25x25mm.


Gap Bed Lathe Machine Application

1 CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.

2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness; guide rail surface is quenched by medium frequency, and is durable.

3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the operation, pleasant and good.

4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is high, is suitable for the strong cutting.

5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that the machine has a good accuracy and reliability.


CA6261 Gap Bed Lathe machine main technical specifications:

SpecificationsCA6261 CA6261B CA6261C
Max. Swing over bed610mm
Max. Swing over carriage370mm
Max. swing in gap830mm
Effective gap length210mm
Max. length of work piece750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
Width of bed400mm
Section of turning tool25x25mm
SpindleSpindle speeds10-1400rpm/16-1400rpm(24steps)
Hole through spindle52mm. (80mm). [105mm]
Spindle taperNO.6(MT6)(Φ90 1:20)[Φ113 1:20]
FeedNumber of feeds64 kinds(for each)
Range of metric threads(kinds)(1-192mm)44 kinds
Range of inch threads(kinds)(2-24tpi)21 kinds
Range of module threads(kinds)0.25-48 (Moduie39kinds)
Range of  pitch threads(kinds)1-96DP(37kinds)
TailstockMax. tail stock spindle travel150mm
Tail stock spindle diameter75mm
Taper of tail stock spindle center holeNO.5(MT5)
Main motor7.5KW(10HP)
Packing dimensions (L*W*Hmm)Overall dimensions for750mm2550x1140x1750
Overall dimensions for1000mm2700x1140x1750
Overall dimensions for1500mm3200x1140x1750
Overall dimensions for2000mm3700x1140x1750
Overall dimensions for2200mm4030x1140x1750
Overall dimensions for3000mm4850x1140x1750
Overall dimensions for4000mm5800x1140x1750
Weight (kg)LengthG.W  N.W.
Weight for 750mm2300  2180
Weight for 1000mm2380  2250
Weight for 1500mm2577  2437
Weight for 2000mm2940  2787
Weight for 2200mm3120  2970
Weight for 3000mm3600  3450
Weight for 4000mm3950  3800
