Product Model:

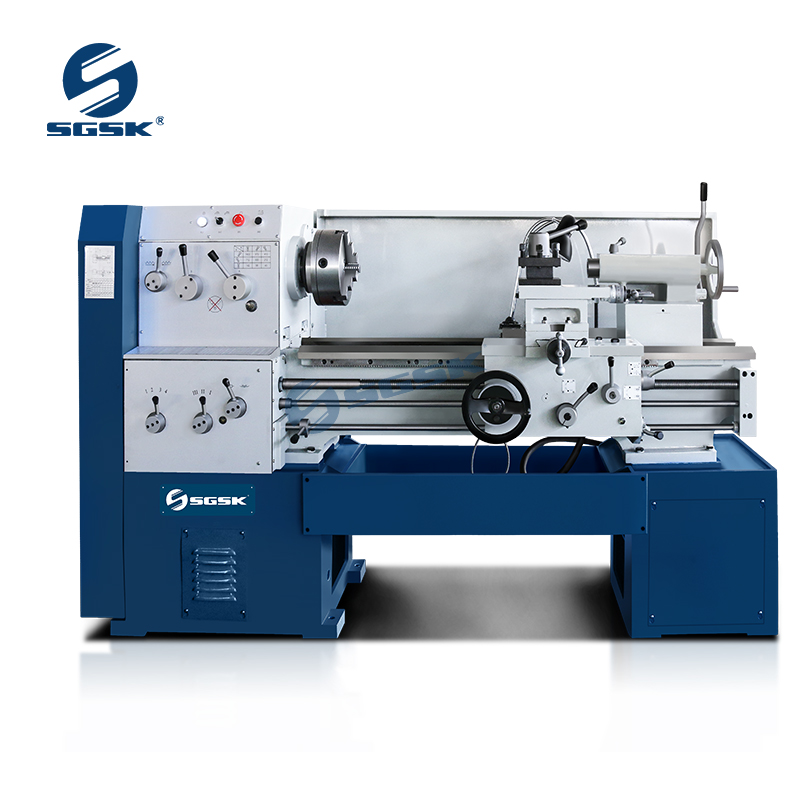

C6232 Gap Bed Lathe Machine

Product Main Technical Parameters

Gap Bed Lathe Machine description:

1.Bed rail by super audio quenching and precision grinding.

2.Precision grinding of the main shaft box, low noise.

3.More thread type.

4.Electrical safety performance is good, high reliability.

5.With electromagnetic brake, the color of available options.


Gap Bed Lathe Machine Main Technical Specifications:

Specifications

C6232

Capacity

Max.Swing over bed

320mm

Max. rotating diameter

200mm

Max.swing over gap

590mm

Center distance

75010001500mm

Spindle hole

52mm

Spindle

Spindle nose

ISO-C6

Spindle tap

MT6

Spindle speeds(Number)

36-1600rpm (12 Steps)

Feed

Metric threads rangeKinds

0.5-14mm (18 Kinds)

Inch threads range(Kinds)

2-40/inch (28 Kinds)

Moudle threads range(Kinds)

0.25-3.5mπ (17 Kinds)

Compound rest travel

150mm

Cross slide travel

180mm

Cross-section size of toolshank

22×22mm

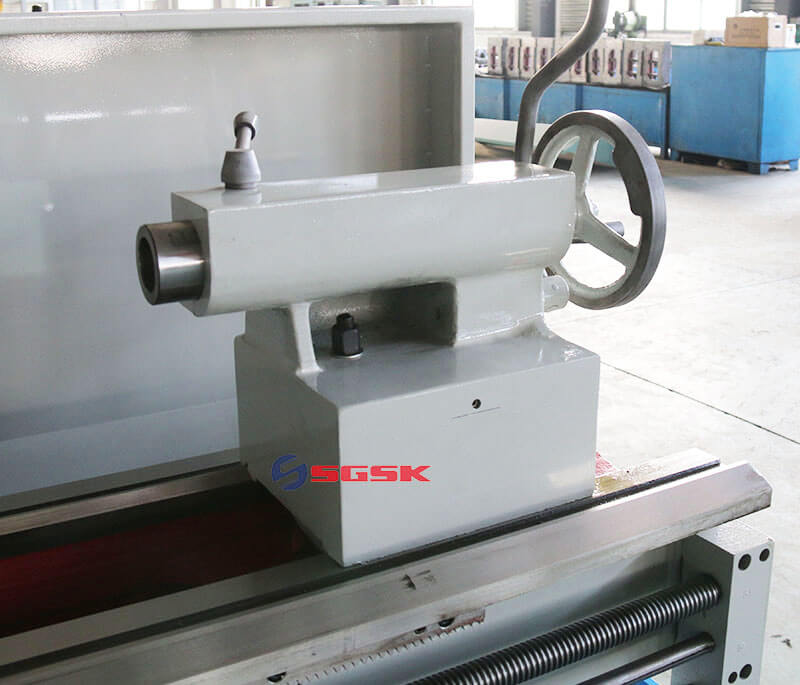

Tailstock

Dia.of tailstock sleeve

75mm

Taper of tailstock sleeve

MT5

Travel of tailstock sleeve

160mm

Main motor power

4KW

Machine size

(L*W*H mm)

Overall dimensions for750mm

2100×1150×1550mm

Overall dimensions for1000mm

2350×1150×1550mm

Overall dimensions for1500mm

2850×1150×1550mm

Overall dimensions for2000mm

3350×1150×1550mm

Weight(kg)

Weight for 750mm

1300kg

Weight for 1000mm

1400kg

Weight for 1500mm

1600kg

Weight for 2000mm

1800kg
