Product Model:

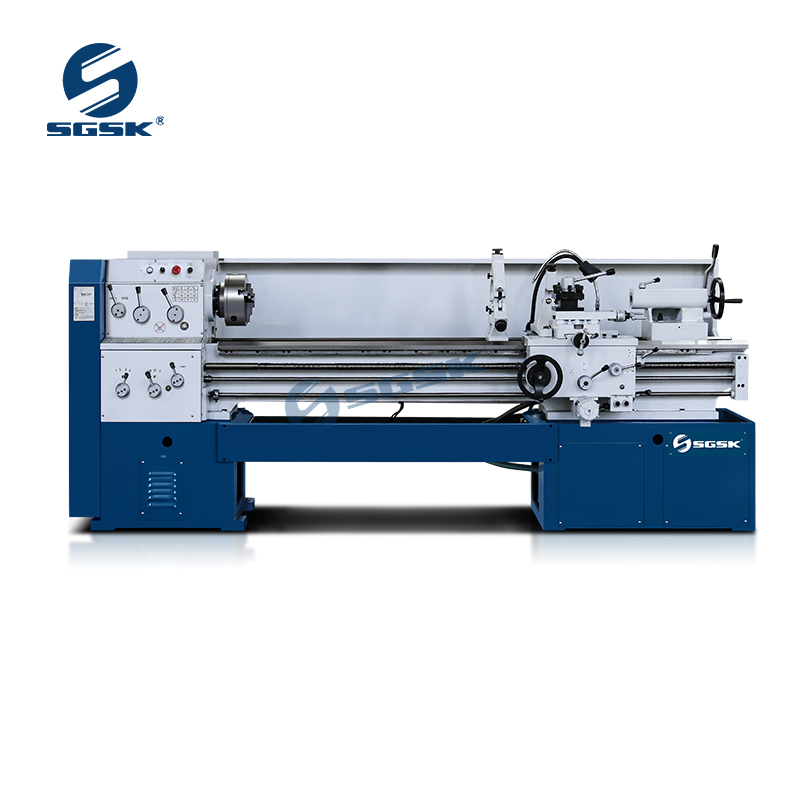

C6250 Gap Bed Lathe machine

Product Main Technical Parameters

Gap Bed Lathe Machine Description:

1.Bed rail by super audio quenching and precision grinding.

2.Precision grinding of the main shaft box, low noise.

3.More thread type.

4.Electrical safety performance is good, high reliability.

5.With electromagnetic brake, the color of available options.


Gap Bed Lathe Machine Main Technical Specifications:

Specifications

C6250

Capacity

Max. Swing over bed

500mm

Max. rotating diameter

300mm

Max. swing over gap

720mm

Center distance

750/1000/1500/2000mm

Spindle

Spindle hole

52mm(82mm)

Spindle nose

ISO-C6C8

Spindle tap

MT6

Spindle speeds(Number)

36-1600rpm (12 Steps)

Feed

Metric threads rangeKinds

0.5-14mm (18 Kinds)

Inch threads range(Kinds)

2-40/inch (28 Kinds)

Module threads range(Kinds)

0.25-3.5mπ (17 Kinds)

Compound rest travel

150mm

Cross slide travel

180mm

Cross-section size of tool shank

20×20mm2

Tailstock

Dia. of tailstock sleeve

75mm

Taper of tailstock sleeve

MT5

Travel of tailstock sleeve

160mm

Main motor power

5.5/7.5

Machine size

(L*W*H mm)

Overall dimensions for750mm

2100×1150×1550mm

Overall dimensions for1000mm

2350×1150×1550mm

Overall dimensions for1500mm

2850×1150×1550mm

Overall dimensions for2000mm

3350×1150×1550mm

Weight(kg)

Weight for 750mm

1700kg

Weight for 1000mm

1800kg

Weight for 1500mm

2000kg

Weight for 2000mm

2200kg
