Product Main Technical Parameters

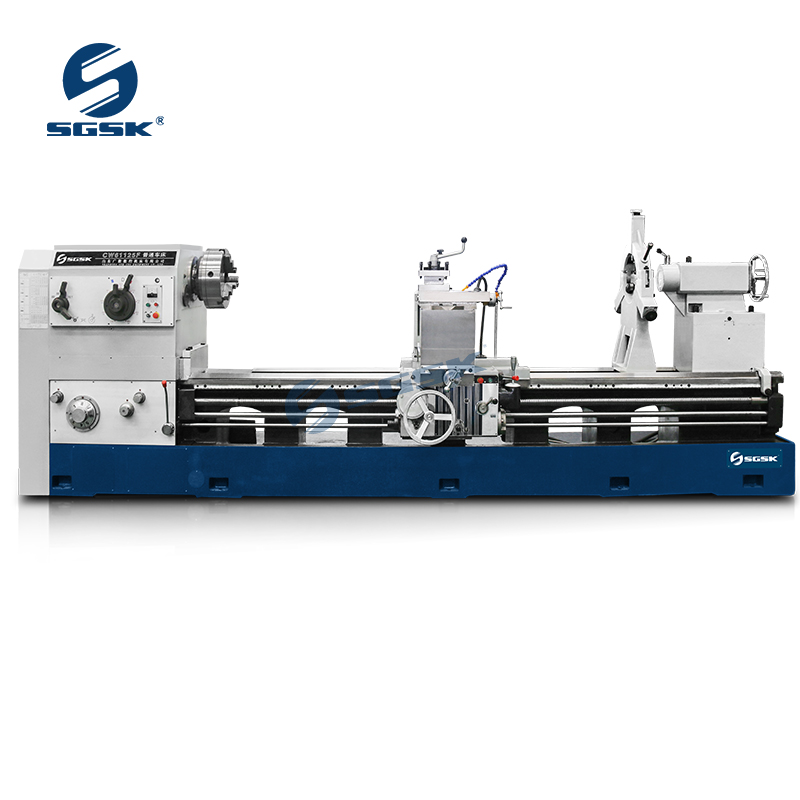

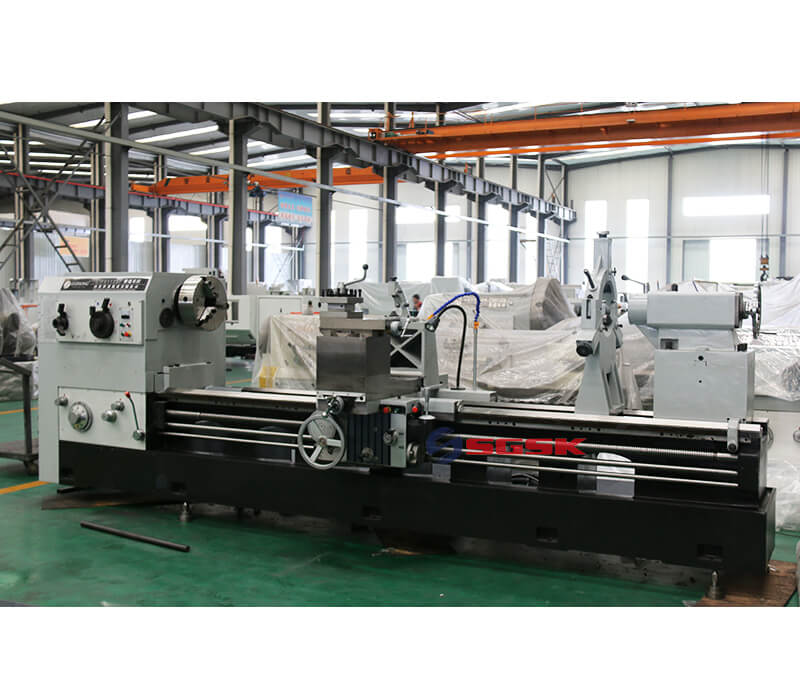

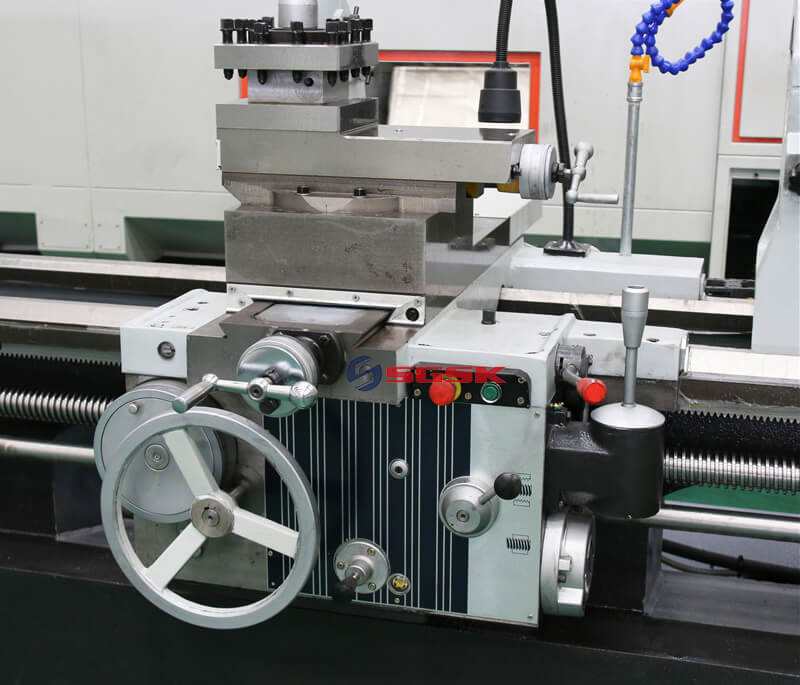

Heavy Duty Lathe Machine Features:
1. One-piece bed adopts high strength iron to ensure rigidity and precision
2. Ultrasonic frequency quenched guide-ways ensure good wear-resistance

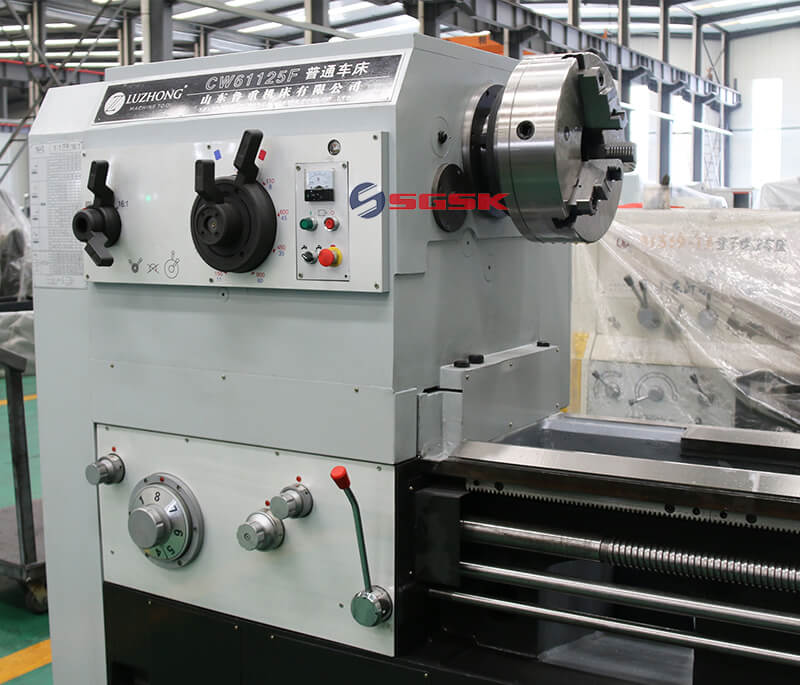

3. Headstock gears hardened and ground to achieve precision and low noise
Heavy Duty Lathe Machine Main Technical Specification:
| Specification | Unit | CW6180F/CW6280F | CW61100F/CW62100F | ||
| Swing over bed | mm | 800 | 1000 | ||
| Swing over gap | mm | - | 1000 | - | 1200 |
| Swing over cross slide | mm | 480 | 680 | ||
| Distance between centers | mm | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 | ||
| Guideway width | mm | 600 | 600 | ||
| Max. load capacity | T | 4 | 4 | ||
| Spindle bore | mm | 104 | 104 | ||
| Spindle bore taper | - | Metric φ120/MT5 | Metric φ120/MT5 | ||
| Spindle nose type | - | C11 | C11 | ||
| Spindle speed steps | - | FWD. 18 steps | FWD. 18 steps | ||
| Spindle speed range | rpm | 5.4-720 | 5.4-720 | ||
| Chuck | mm | φ400 3-jaw manual | φ400 3-jaw manual | ||
| Turret/tool post | - | Manual turret 4 position | Manual turret 4 position | ||
| Tool shank size | mm | 32x 32 | 32x 32 | ||
| X axis travel | mm | 420 | 420 | ||
| Z axis travel | mm | 1350/1850/2850/3850/4850/5850 | 1350/1850/2850/3850/4850/5850 | ||
| X axis feed grade/range | mm/r | 64/0.05-12.15 | 64/0.05-12.15 | ||
| Z axis feed grade/range | mm/r | 64/0.1-24.3 | 64/0.1-24.3 | ||
| X axis rapid traverse | mm/min | 2300 | 2300 | ||
| Z axis rapid traverse | mm/min | 4000 | 4000 | ||
| Metric thread grade/range | mm | 50/1-240 | 50/1-240 | ||
| Inch thread grade/range | T.P.I | 26/14-1 | 26/14-1 | ||
| Module thread grade/range | mm | - | - | ||
| DP thread grade/range | D.P. | - | - | ||

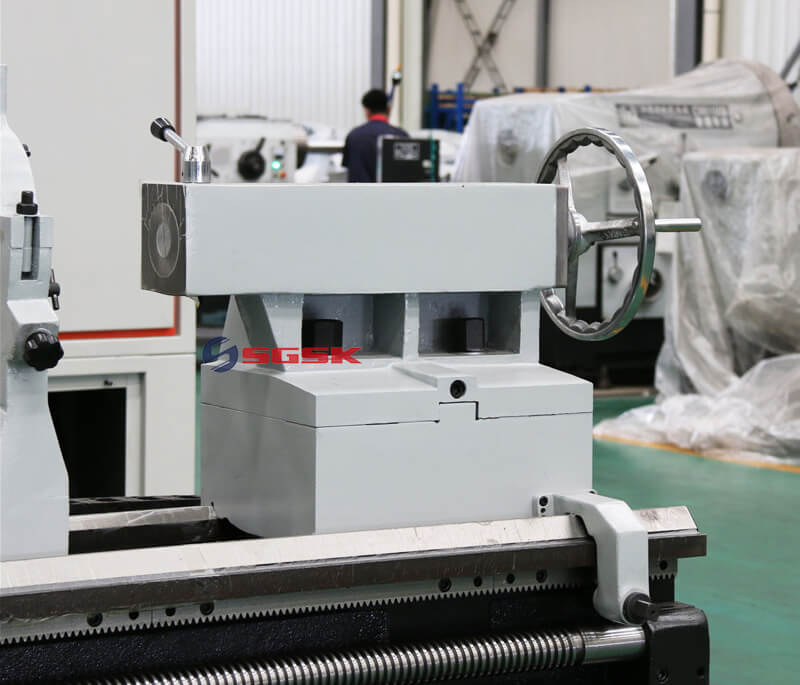

| Tailstock quill diameter | mm | φ120 | φ120 | ||
| Tailstock quill taper | - | MT6 | MT6 | ||
| Tailstock quill travel | mm | 250 | 250 | ||
| Main spindle motor | kW | 11 | 11 | ||
| Rapid traverse motor | kW | 1.1 | 1.1 | ||
| Coolant pump motor | kW | 0.125 | 0.125 | ||
| Width x Height | mm | 1550 x 1650 | 1750 x 1750 | ||
