Product Model：
Product Main Technical Parameters

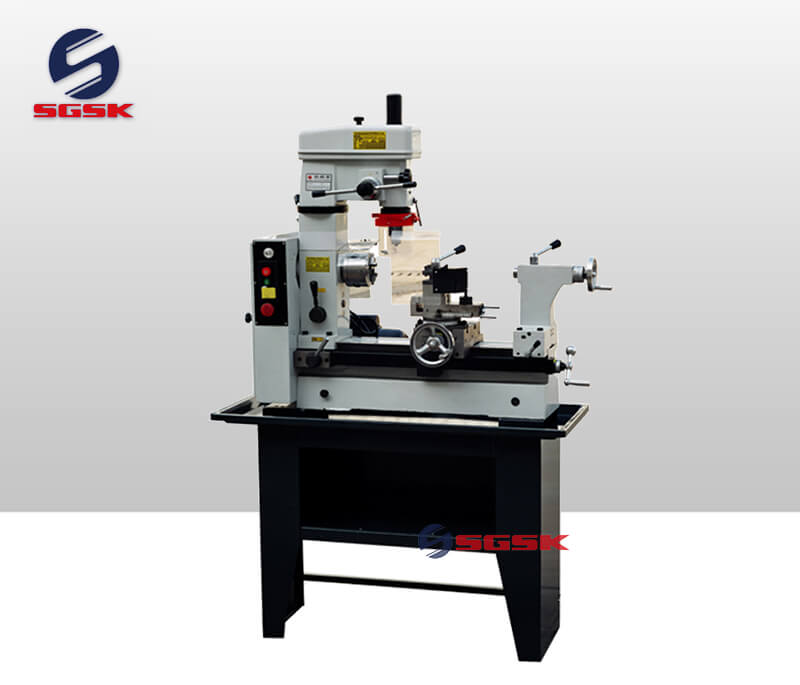

Combination Lathe Milling Machine Features:
Metric or Imperial thread cutting
Combination Metal Lathe/Milling/Drilling/Threading
Various functions, small area occupation and economization
A kind of combination machines with turning, milling, drilling and threading.
Combination Lathe Milling Machine Main Technical Specifications:
| Specifications | HQ400-3A | HQ400-3B | HQ400-3L | ||
| Turning | Swing over bed | 420 mm | 420 mm | 420 mm | |
| Distance between centers | 400 mm | 400 mm | 500 mm | ||
| Max. longitudinal travel | 380 mm | 380 mm | 480 mm | ||
| Max. cross travel | 120 mm | ||||
| Taper of spindle | M.T.3 | ||||
| Spindle hole | 20mm | ||||
| Step of spindle speed | 7 | ||||
| Range of spindle speed | 160-1360 r.p.m | ||||
| Barrel travel | 70 mm | ||||
| Barrel taper | M.T.3 | ||||
| Metric thread range | 0.2-3mm | ||||
| Inch thread range | 8-120T.P.L | ||||
| Longitudinal range of automatic feeding | 0.05-0.175mm/r | ||||
| Cross range of automatic feeding | / | / | / | ||
| Drilling & milling | Max.drilling capacity | 15 mm | |||
| Worktable size | 200*150 mm | ||||
| Max.end mill capacity | 20 mm | ||||
| Max.face mill capacity | 63 mm | ||||
| Spindle travel | 85 mm | ||||
| Headstock travel of up and down | 80 mm | 80 mm | |||
| Spindle taper | M.T.3 | ||||
| Step of spindle speed | 14 | ||||
| Range of spindle speed | 117-1300r.p.m | ||||
| Swivel angle of headstock | ±360° | ||||
| Motor | Motor power | 0.55kw | |||
| Shipping data | Packing size | 1030*580*1070 mm | 1132*580*1070mm | ||
| N.weight/G.weight | 180kg/215kg | 180kg/215kg | 185kg/226kg | ||
| Loading amount | 44pcs/20container | ||||
