Product Model:

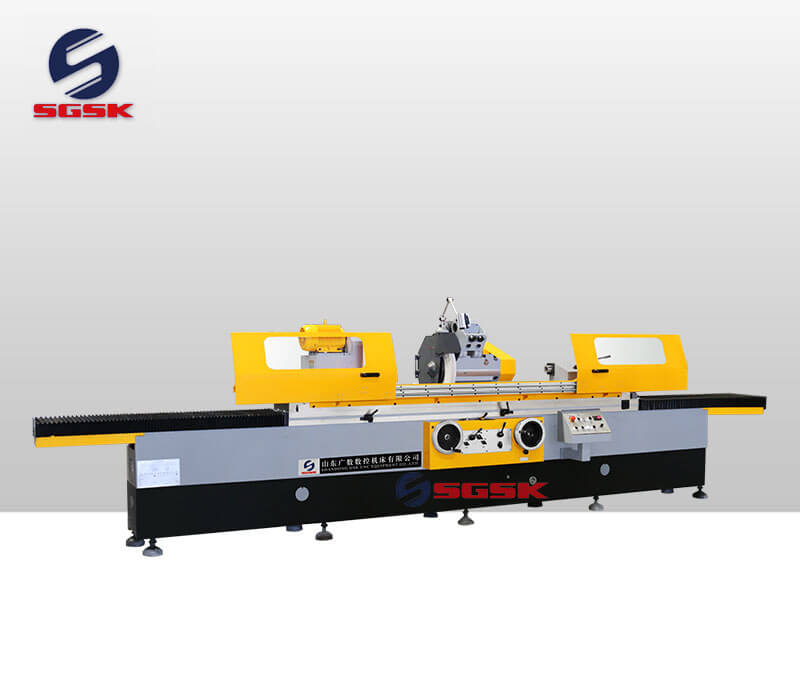

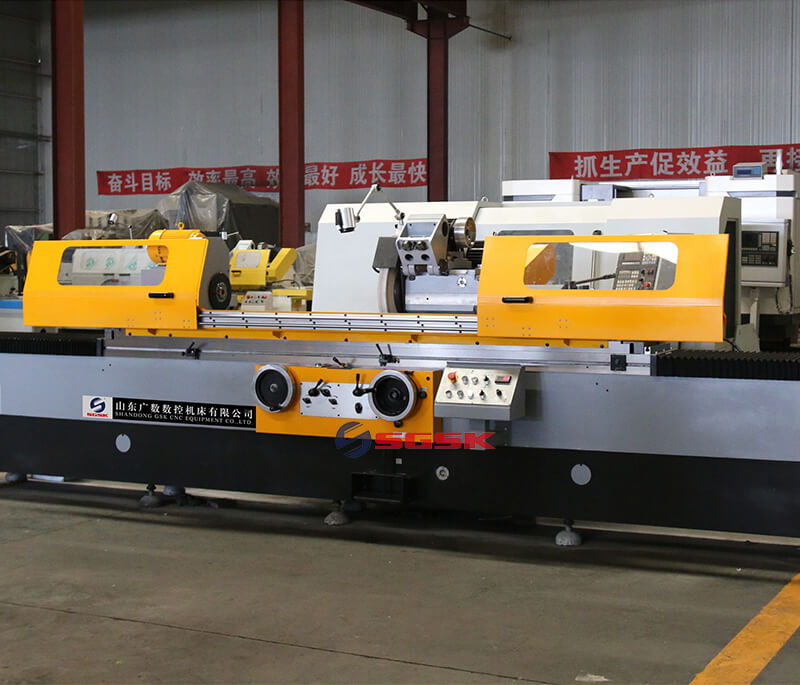

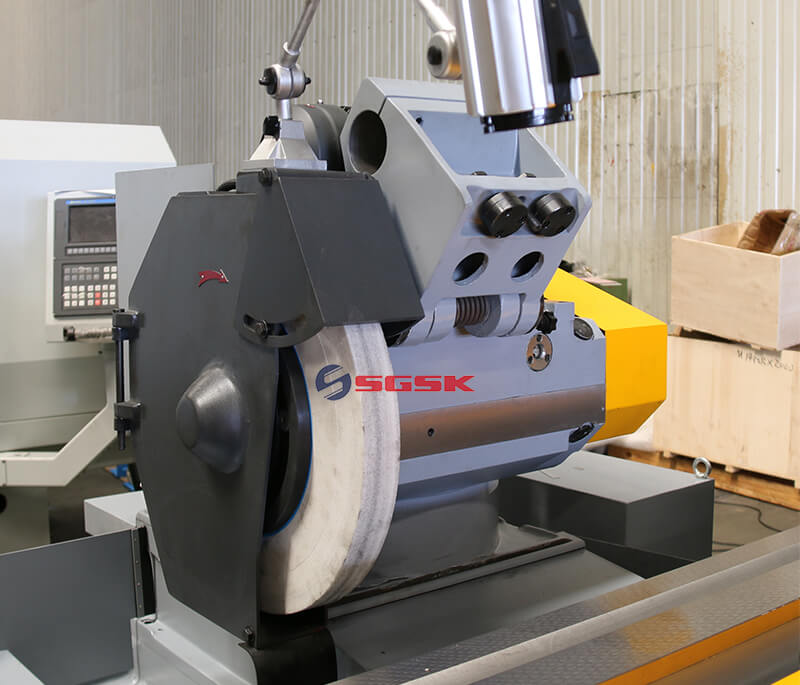

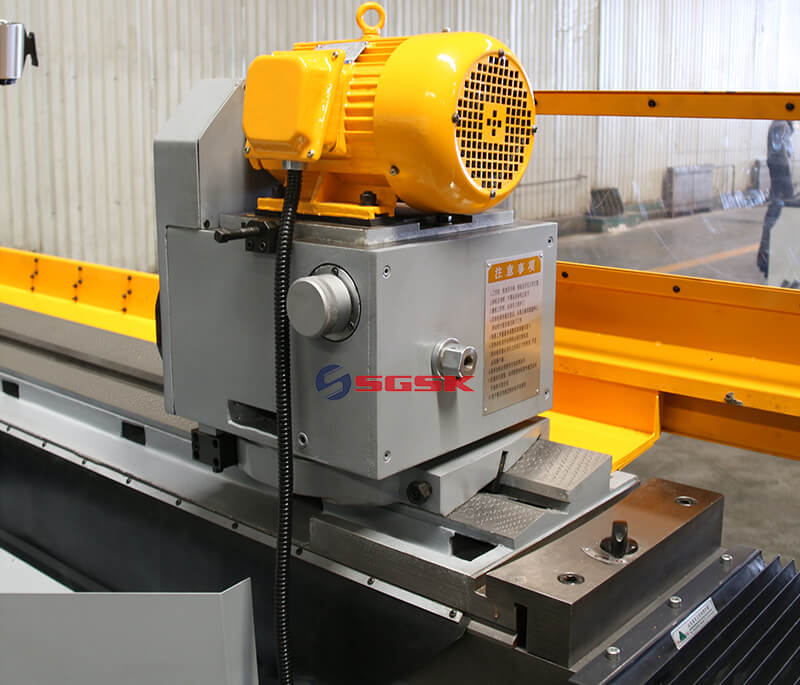

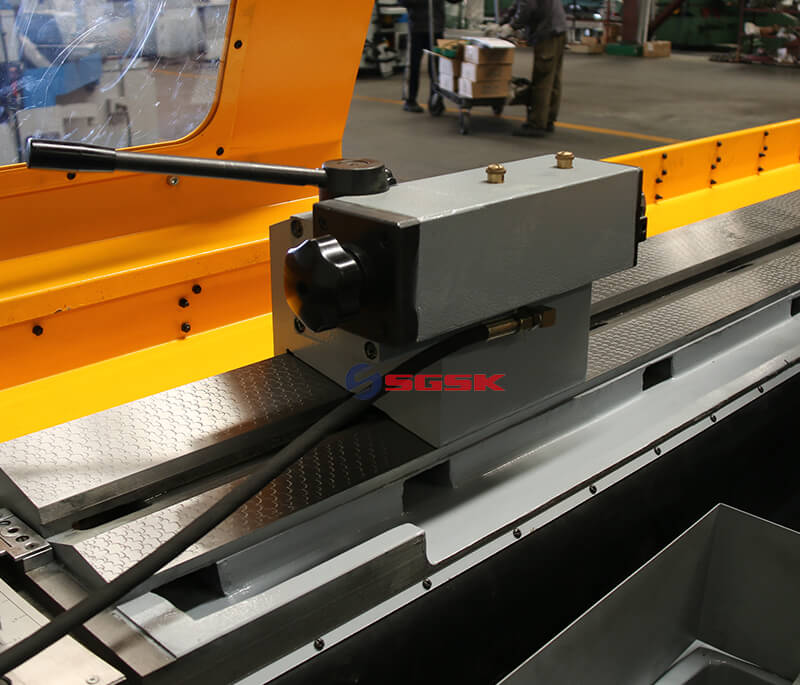

M1463 Cylindrical Grinding Machine

Product Main Technical Parameters

SpecificationsUnitsM1463
Max. length ground(O.D)mm2000、3000、4000、5000
Max. length ground(I.D)mm320
Center heightmm370
Dia. Ground(O.D)mm30-630
Dia. Ground(I.D)mm30-250
Max. weight of work piecekg3000
Swiveling angle °+90°
Center taperMTMetric80
Spindle speedr/min50HZ: 14-140 stepless

wheel spindle speed

r/min1100/550
Wheelhead rapid travelmm100
Max. travelmm450
Swiveling angle °-30°
Hand feed per revmm/revrough:4
precision:0.5
Hand feed per gramm/grarough:0.02
precision:0.0025
Wheel size (ODxWxID)mm600*75*305
 Peripheral velocitym/s35/17.5
Spindle speedr/min10000
Wheel size (OD*W*ID)mmMax.:175*32*32
Min.:30*25*10
Hand feed per revmm/rev5
Cockwise °2° (2000)
1° (3000、4000、5000)
 Anticlockwise °°4° (2000)
3° (3000)
2.5° (4000)
1.5° (5000)
Longitudinal speed range of tablem/min0.1-2.5
Center taperMTMetric80
Quill travelmm70
Wheelhead motor powerkw7/11
Internal grindingkw1.5
Workhead motor powerkw15
Machine weightkg18000 (2000)
19000 (3000)
24000 (4000)
26000 (5000)
Overall dimension(L * W * H)mm6400*2400*2260 (2000)
8260*2400*2260 (3000)
10500*2400*2260 (4000)
12500*2400*2260 (5000)
