Product Model:

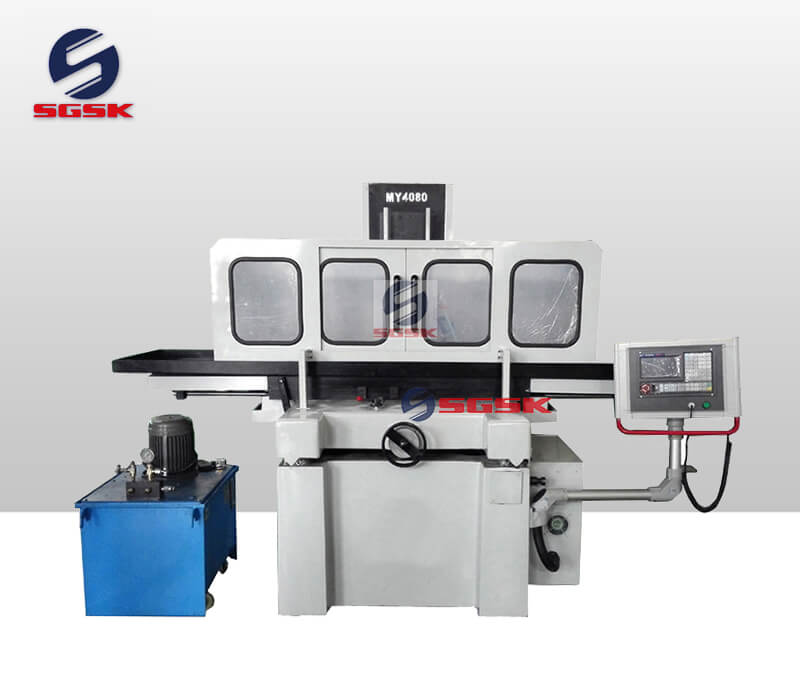

MYK4100 Hydraulic CNC Grinding Machine

Product Main Technical Parameters

Hydraulic CNC Grinding machine Main Performance Characteristics:

1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.

2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.

3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.

4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.

5. The Guangzhou CNC system GSK96 and two axis NC, according to the actual processing conditions free programming, with pulse wheel, X and Z axis feed can be free to switch freely.

6. The characteristics of the CNC grinding machine is realize three-axis full automation, the second axis plane grinder while reducing the labor intensity of the operator, but also a single stand-alone operation, three axis automatic surface grinder, a worker can be 3 - 5 machines are operating at the same time, greatly reduce the labor cost, especially when the batch processing, the benefit is more remarkable.


Hydraulic CNC Grinding Machine Application:

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.


Hydraulic CNC Grinding Machine Main Technical Parameters:

SpecificationsUnitsMYK4100
workbenchWorktable size (L * W)mm1000×400
Max. travel of  tablemm1030×500
Table T slot (slot number x slot width)mm3×14
Grinding headSpecial grinding wheel size (o. d * w * i. d.)mm∮350×40×∮127
Distance spindle center line to working tablemm600
Grinding wheel speedr/min1450
The amount of feedTable longitudinal (left and right) speedm/min3-25
Table transverse (front and rear) feed handwheel feedm/min0.5-15
 Grinding head(up and down)automatic feedmm0.005-0.05
Grinding head up and down is fast lifting speed (approximate value)m/min0-6
Hydraulic systemHydraulic motorKW2.2
working pressureMPa4
Fuel tank capacityL100
Maximum flow rateL/min20
Motor powerSpindle motorkw4
Cooling motorW125
Elevator servo motorkw1.0
Front and rear servo motorkw1.0
working accuracyThe process surface of the base  level of the parallel degreemm300:0.005
Surface roughnessμmRa0.32
Machine weightNet weightkg3200
Gross weightkg3400
uction cup specificationmm400x1000
External size (L * w * h)mm2550x2000x2100
