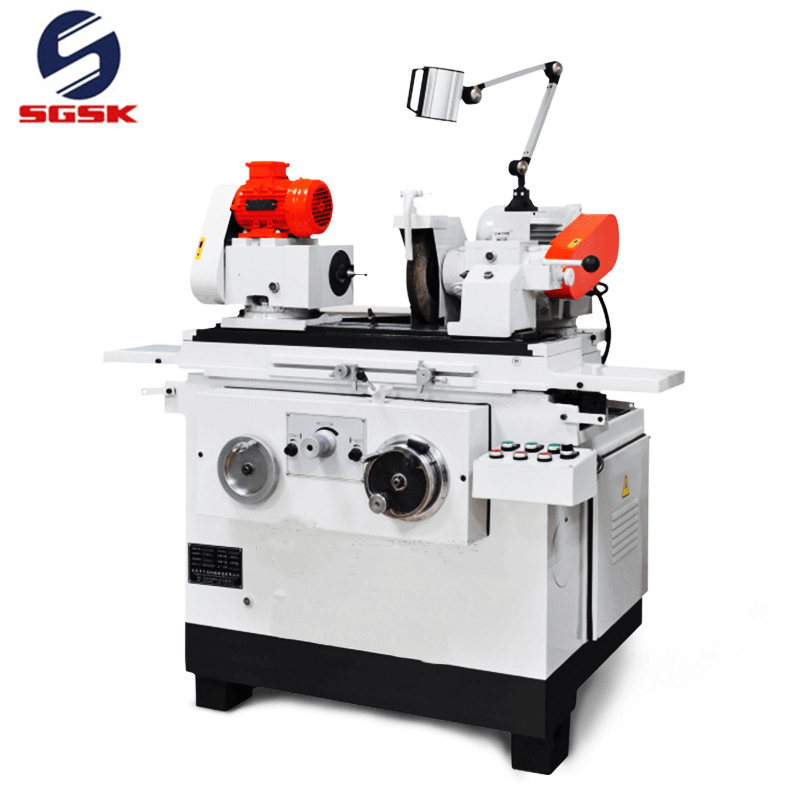

M1408 Cylindrical Grinding Machine

Inquire Now Next Product

Product Main Technical Parameters

M1408 Cylindrical Grinding Machine Main Performance Characteristics：

This machine is mainly used for grinding cylindrical and conical surfaces of small shafts, round sleeves, needle valves, plungers, etc.

The tooling method can be realized by a top, a three-jaw chuck, a spring chuck and a special fixture;

Suitable for processing small parts in instruments, automobiles, electro mechanical, bearings, textiles, ships, sewing machines, machinery and other industries;

The longitudinal movement of the table of the machine tool is hydraulic and manual, the wheel frame and the head frame can be rotated, and the hydraulic system adopts a gear with good performance;

This machine is suitable for workshops in tools, machine repair workshops and small and medium batch production;

The machine is divided into 300 mm by the tip distance.

M1408 Cylindrical Grinding Machine Main Technical Specifications :

Parameters	M1408
Diameter of grinding	Φ2-Φ80mm
Maximum grinding length	300mm
Center height	115mm
Maximum weight of workpiece	10kg
Speed of work table	0.1~4m/min
Linear speed of grinding wheel	35m/sec
Maximum travel of work table	340mm
Rotary angel of work table	-5°~+9°
Grinding wheel size	MaxΦ250x25xΦ75mm MinΦ180x25xΦ75mm
Internal spindle speed	-----
Head and tail frame centre	NO.3 morse
Roundness(outer circle/inner circle)	0.002/0.005mm（O.D/I.D）
Surface roughness	Ra0.25/0.63µm（O.D/I.D）
External size (L * w * h)	1360x1240x1000mm
Machine weight	950kg
Motor power	2.5kw
