Features

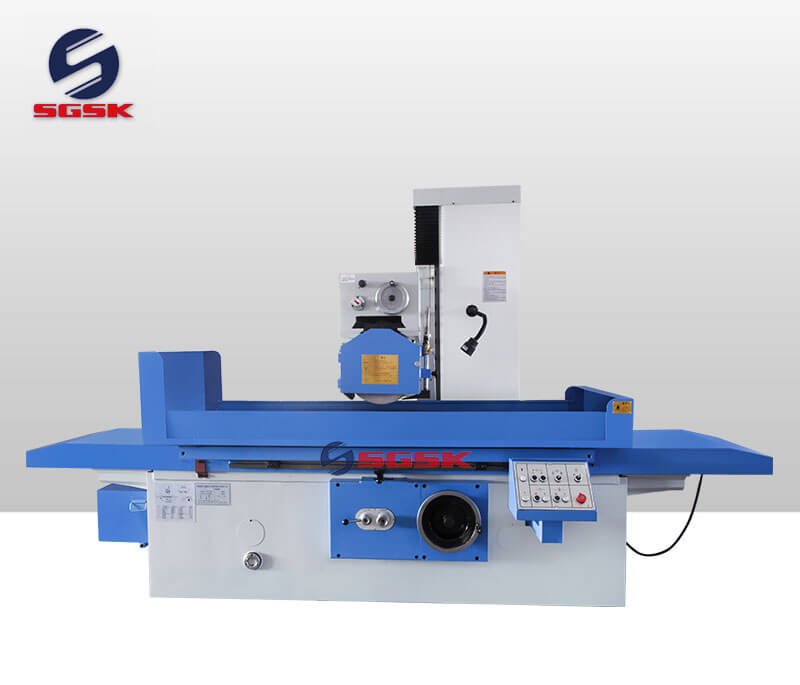

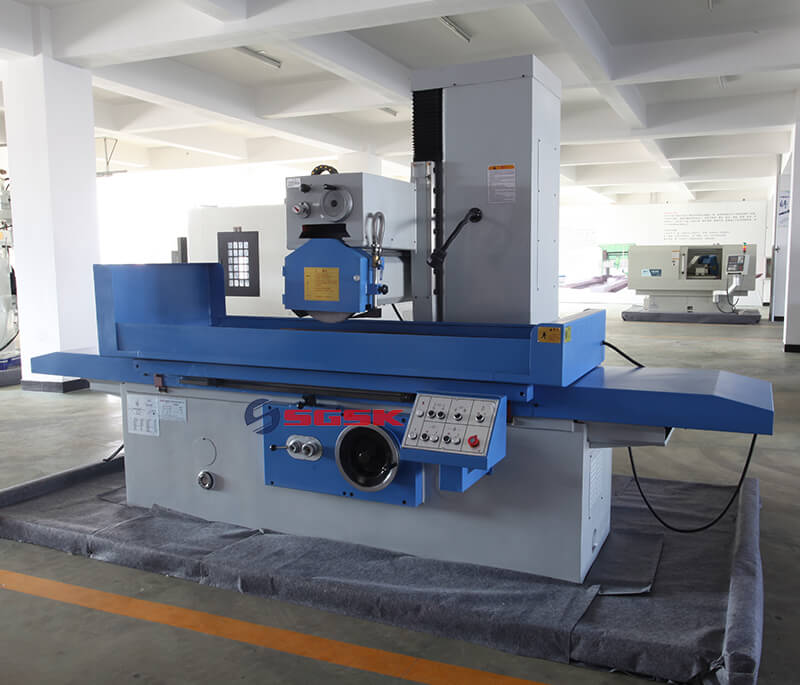

The GSK M7132 Hydraulic Surface Grinder Machine is designed for precision surface grinding of steel, iron, ceramics, non-ferrous metals and other industrial components. Available with 1000 mm, 1600 m and 2000 mm worktable lengths, the M7132 series covers different workpiece sizes while maintaining the same 320 mm table width and 350 mm grinding-head cross travel.
With a 5.5 kW spindle motor, 350 × 127 × 40 mm grinding wheel and 1440 rpm wheel speed, this hydraulic surface grinder is suitable for machine shops, mold manufacturers, automotive component production and general metalworking applications requiring consistent flatness and surface finish.
Under the specified machine conditions, the M7132 provides a processing accuracy of 0.015/1000 mm and a surface roughness of Ra 0.63 μm.

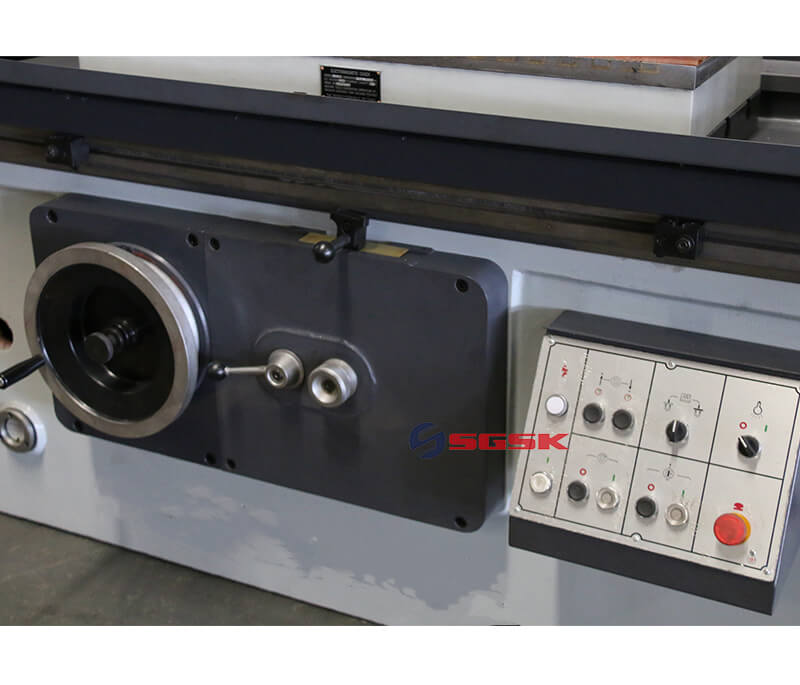

The lateral movement of the grinding head is driven by a hydraulic motor and can also be operated manually when required.
This combination gives operators the efficiency of hydraulic movement while retaining manual control for setup, adjustment and specific grinding operations.
For workshops processing repeated batches of flat components, the hydraulic system helps reduce repetitive manual operation and supports more consistent machining.

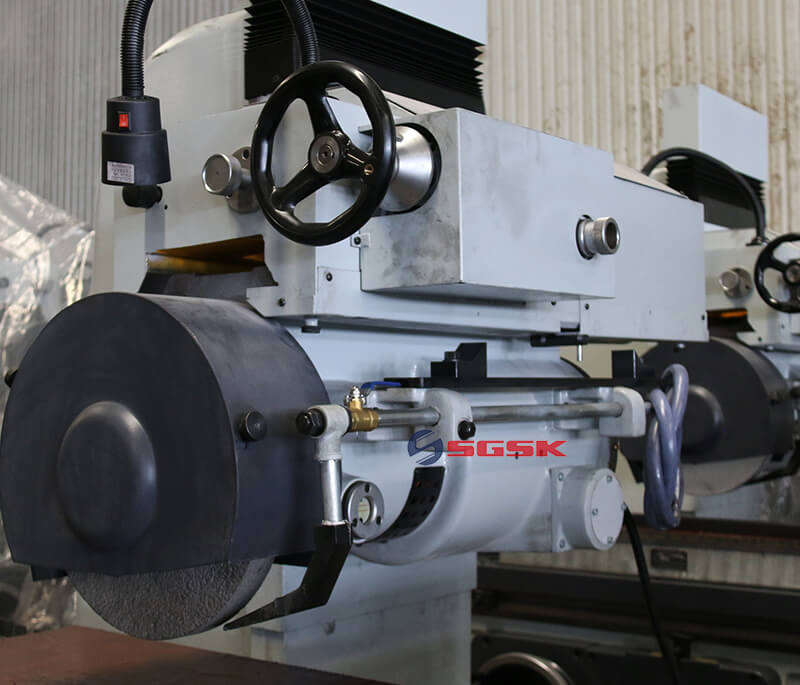

A dedicated 0.37 kW rapid-lifting motor provides quick vertical positioning of the grinding head.
The rapid lifting function reduces non-cutting adjustment time between setup and grinding, making the M7132 hydraulic surface grinder more suitable for regular workshop production than machines that depend entirely on manual vertical adjustment.
Fine grinding requires controlled wheel positioning.
The M7132 grinding head provides:
● 0.01 mm vertical movement per handwheel division
● 1.00 mm vertical movement per handwheel revolution
● 400 mm maximum vertical travel
This allows operators to make controlled adjustments when approaching the final grinding dimension or surface condition.
All three M7132 configurations use a 5.5 kW spindle motor with a 350 × 127 × 40 mm grinding wheel running at 1440 rpm.
Keeping the same grinding-head specification across the three models makes model selection primarily dependent on required worktable length, longitudinal travel, installation space and workpiece size rather than a completely different grinding system.
The machine screw is manufactured from special alloy steel and undergoes controlled machining and heat treatment.
The purpose is to improve wear resistance and support stable machine adjustment during long-term industrial use.
The lifting mechanism and triangular support use an eccentric design that facilitates adjustment and maintenance.
For production workshops, easier mechanical adjustment can help reduce maintenance difficulty and support longer machine service life.
GSK offers three M7132 hydraulic surface grinder configurations.
| Model | Worktable Size | Longitudinal Travel | Total Motor Power | Oil Pump Motor | Net Weight |
|---|---|---|---|---|---|
| M7132×1000 | 1000 × 320 mm | 1100 mm | 9 kW | 3 kW | 3500 kg |
| M7132×1600 | 1600 × 320 mm | 1700 mm | 10 kW | 4 kW | 3550 kg |
| M7132×2000 | 2000 × 320 mm | 2100 mm | 12 kW | 5.5 kW | 3600 kg |
Choose the M7132×1000 when a 1000 × 320 mm worktable and 1100 mm longitudinal travel are sufficient for your parts.
Its shorter machine footprint also makes it easier to integrate into workshops with limited installation space.
The M7132×1600 extends the table length to 1600 mm and longitudinal travel to 1700 mm.
It is a practical option for workshops processing longer molds, plates, fixtures and machine components while retaining the same 320 mm grinding width.
For long workpieces, the M7132×2000 provides a 2000 × 320 mm table and 2100 mm longitudinal travel.
Its oil pump motor increases to 5.5 kW and total motor power to 12 kW to match the larger machine configuration.
When requesting a quotation, provide GSK with your workpiece dimensions, material and required surface finish so that the appropriate M7132 configuration can be selected.
The M7132 metal surface grinding machine can be used for surface grinding of:
Steel components
Iron parts
Ceramic components
Non-ferrous metal parts
Mold components
Machine parts and fixtures
Grinding performance depends on the workpiece material, grinding wheel selection, machining allowance and required finish. These factors should be confirmed before production setup.
| Description | Unit | M7132×1000 | M7132×1600 | M7132×2000 |
| Worktable Size | mm | 1000 × 320 | 1600 × 320 | 2000 × 320 |
| Max. Longitudinal Movement of Worktable | mm | 1100 | 1700 | 2100 |
| Max. Distance from Spindle Centerline to Worktable Surface | mm | 570 | 570 | 570 |
| Max. Cross Movement of Grinding Head | mm | 350 | 350 | 350 |
| Max. Vertical Movement of Grinding Head | mm | 400 | 400 | 400 |
| Vertical Handwheel Feed per Division | mm | 0.01 | 0.01 | 0.01 |
| Vertical Handwheel Feed per Revolution | mm | 1.00 | 1.00 | 1.00 |
| Rapid Lifting Motor Power | kW | 0.37 | 0.37 | 0.37 |
| Rapid Lifting Motor Speed | r/min | 1440 | 1440 | 1440 |
| Grinding Wheel Size | mm | 350 × 127 × 40 | 350 × 127 × 40 | 350 × 127 × 40 |
| Grinding Wheel Speed | r/min | 1440 | 1440 | 1440 |
| Total Motor Power | kW | 9 | 10 | 12 |
| Spindle Motor Power | kW | 5.5 | 5.5 | 5.5 |
| Oil Pump Motor Power | kW | 3 | 4 | 5.5 |
| Processing Accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 |
| Surface Roughness | μm | Ra 0.63 | Ra 0.63 | Ra 0.63 |
| Packing Size | mm | 2800 × 1750 × 2350 | 4500 × 2000 × 2350 | 5500 × 2000 × 2350 |
| Net Weight | kg | 3500 | 3550 | 3600 |
The M7132 is a hydraulic surface grinder designed around hydraulic and manual machine operation. It should not be confused with a CNC surface grinding machine.
Choose the M7132 when your priority is:
Reliable surface grinding for regular workshop production
Hydraulic grinding-head movement
Manual control for setup and fine adjustment
Three worktable lengths for different part sizes
Lower operating complexity than a full CNC grinding system
If your application requires programmable grinding cycles, CNC-controlled feed or a higher level of automatic process control, GSK also offers Hydraulic CNC Grinding Machines such as the MYK series.
This distinction is important when selecting a surface grinder: CNC automation should be chosen according to the actual production process rather than simply adding CNC control where conventional hydraulic operation is sufficient.
GSK is a China machine tool manufacturer supplying CNC and conventional metalworking equipment to customers worldwide.
Shandong GSK CNC Equipment Co., Ltd. has more than 30 years of experience in machine tool design and manufacturing.
This experience covers CNC machining centers, CNC lathes, milling machines, grinding machines, drilling machines and other metalworking equipment.

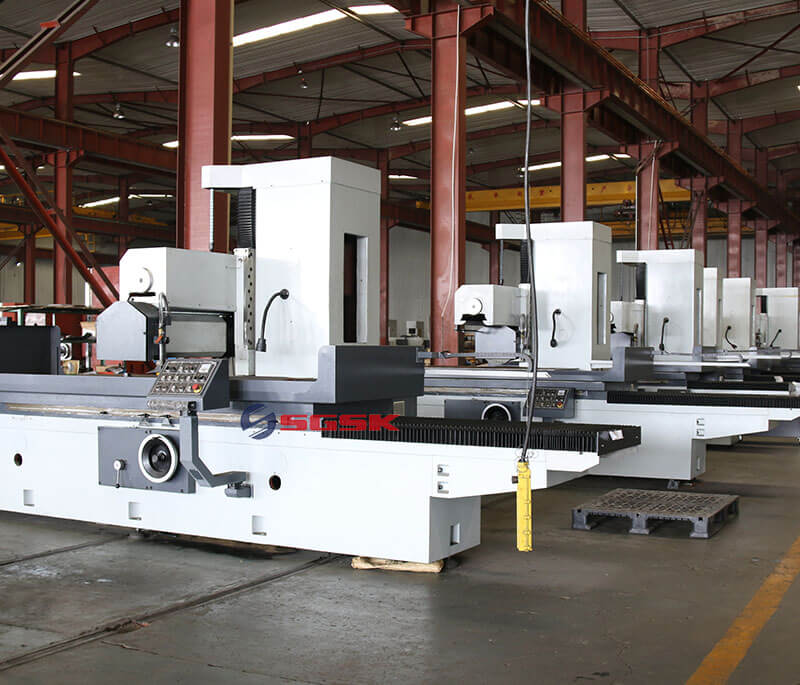

GSK operates a manufacturing facility covering more than 100,000 m² with over 200 employees and annual production capacity of approximately 2,500 machine tools.
This production scale supports both individual equipment purchases and larger machine-tool sourcing projects.
GSK machines have been supplied to customers in more than 150 countries and regions.
For international buyers sourcing a China surface grinding machine, experience with overseas projects is important for machine selection, documentation, packaging and communication.
GSK applies more than 24 testing and quality-control procedures during machine production and inspection.
Quality inspection before shipment helps verify that the machine configuration and operating condition meet the confirmed order requirements.
OEM and ODM services are available for customers with specific project or market requirements.
For distributors, machine-tool suppliers and industrial users, configuration requirements can be discussed with GSK before order confirmation.
GSK can support multiple certification and documentation requirements, including ISO, CE, BV, TUV, SGS, EAC and other documentation according to applicable project requirements.
Please confirm the certification required for your specific machine and destination market before ordering.
GSK provides an 18-month warranty, supported by technical communication for international customers.
The M7132 is designed for precision surface grinding of suitable steel, iron, ceramics and non-ferrous metal components. Typical applications include machinery parts, automotive parts, fixtures, magnetic steel components and mold parts.
The main difference is worktable length and longitudinal travel.
M7132×1000 has a 1000 × 320 mm table and 1100 mm longitudinal travel.
M7132×1600 has a 1600 × 320 mm table and 1700 mm longitudinal travel.
M7132×2000 has a 2000 × 320 mm table and 2100 mm longitudinal travel.
All three models use a 5.5 kW spindle motor and 350 × 127 × 40 mm grinding wheel.
The specified processing accuracy is 0.015/1000 mm for all three M7132 configurations.
Actual grinding results also depend on workpiece material, grinding wheel, setup, machining allowance and operating conditions.
The specified surface roughness is Ra 0.63 μm.
The final result depends on the grinding process, wheel selection, workpiece material and operating conditions.
No. The M7132 is a hydraulic surface grinder rather than a CNC surface grinding machine.
For applications requiring CNC-controlled grinding cycles and programmable operation, GSK also offers Hydraulic CNC Grinding Machines in its MYK series.
Selection should primarily be based on your maximum workpiece dimensions, required longitudinal travel, available installation space and production requirements.
Send GSK your workpiece drawing or dimensions if you are unsure which model is suitable.
Yes. GSK supports OEM and ODM requirements. Project-specific details should be confirmed before production.
GSK provides an 18-month warranty for its machine tools.
Application
The M7132 hydraulic surface grinding machine is suitable for industries where flat surfaces and controlled finishing are required.
Suitable for grinding mold plates, die components, support plates and other flat mold parts requiring controlled dimensional accuracy and surface finish.
The machine can be used for suitable flat surfaces on automotive components, tooling and production fixtures.
Machine shops can use the M7132 for finishing mechanical parts, plates, fixtures and other components after milling, cutting or heat-treatment processes.
Precision fixtures frequently require flat reference surfaces. Surface grinding helps establish controlled contact and locating surfaces before assembly or inspection.
The machine is also suitable for appropriate magnetic steel parts that require flat surface processing.
For buyers searching for a China metal surface grinding machine for daily workshop use, the M7132 provides three table-length options for different part sizes and production requirements.
Product Main Technical Parameters
Hydraulic Surface Grinder Machine main performance characteristics：
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Hydraulic Surface Grinder Machine Application：
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Hydraulic Surface Grinder Machine Main Technical Parameters:
| Description | Units | M7132x1000 | M7132x1600 | M7132x2000 | |
| Size of work table(L x W x H) | mm | 1000x320 | 1600x320 | 2000x320 | |
| Max. Longitudinal movement of worktable | mm | 1100 | 1700 | 2100 | |
| Max. Distance from the spindle centerline to the worktable surface | mm | 570 | 570 | 570 | |
| Max. Cross movement of grinding herd | mm | 350 | 350 | 350 | |
| Max. Vertical movement of grinding head | mm | 400 | 400 | 400 | |
| Vertical movement of the grinding head by hand wheel | Every lattice | mm | 0.01 | 0.01 | 0.01 |
| Each turn | mm | 1.00 | 1.00 | 1.00 | |
| Rapid lifting motor | Power | KW | 0.37 | 0.37 | 0.37 |
| Speed | R/min | 1440 | 1440 | 1440 | |
| Abrasive wheel dim (L x D x W) | mm | 350x127x40 | 350x127x40 | 350x127x40 | |
| Speed of grinding wheel | r/min | 1440 | 1440 | 1440 | |
| Total power of motor | KW | 9 | 10 | 12 | |
| Power of spindle motor | KW | 5.5 | 5.5 | 5.5 | |
| Power of oil pump motor | KW | 3 | 4 | 5.5 | |
| Processing accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | |
| Surface roughness | um | Ra:0.63 | Ra:0.63 | Ra:0.63 | |
| Package(L x W x H) | mm | 2800x1750x2350 | 4500x2000x2350 | 5500x2000x2350 | |
| Net weight | Kg | 3500 | 3550 | 3600 | |
