Product Model:

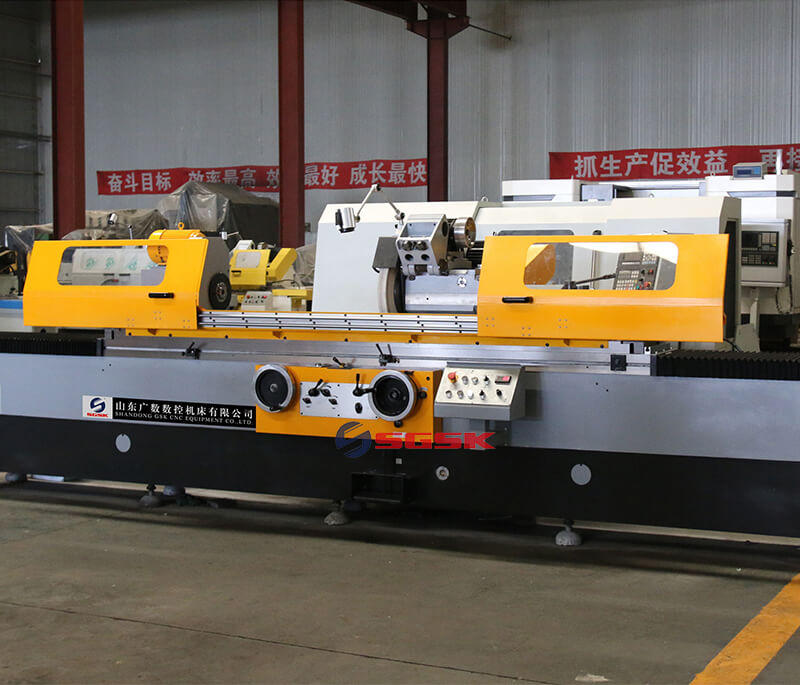

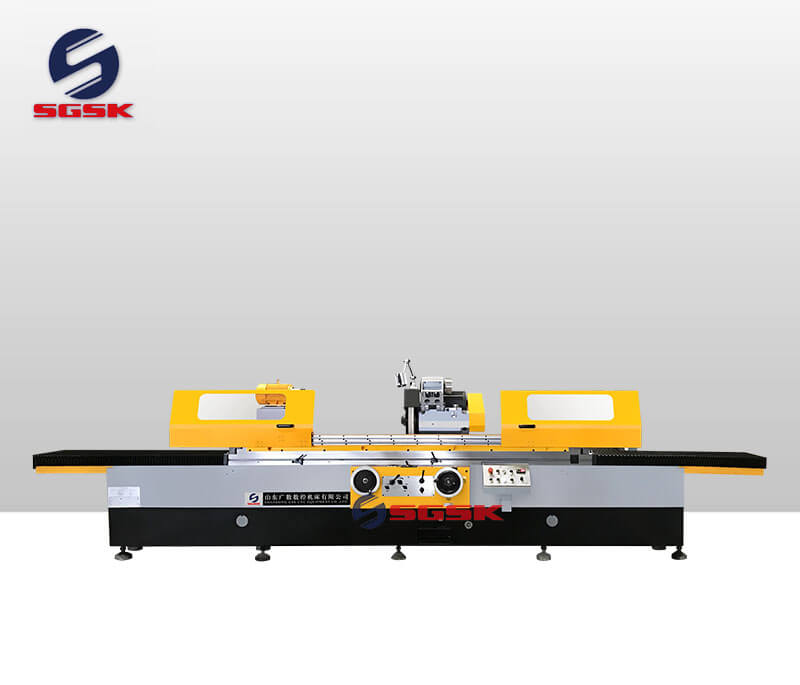

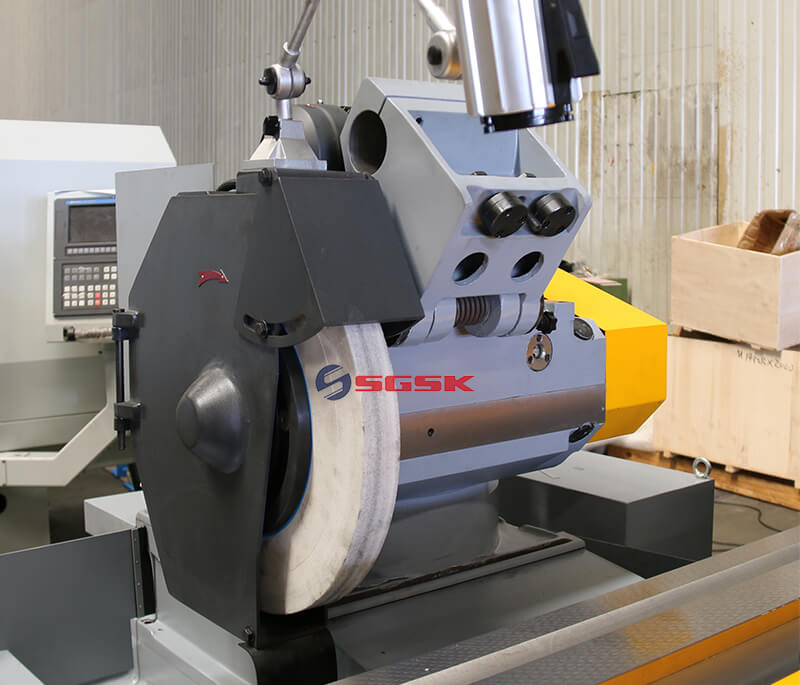

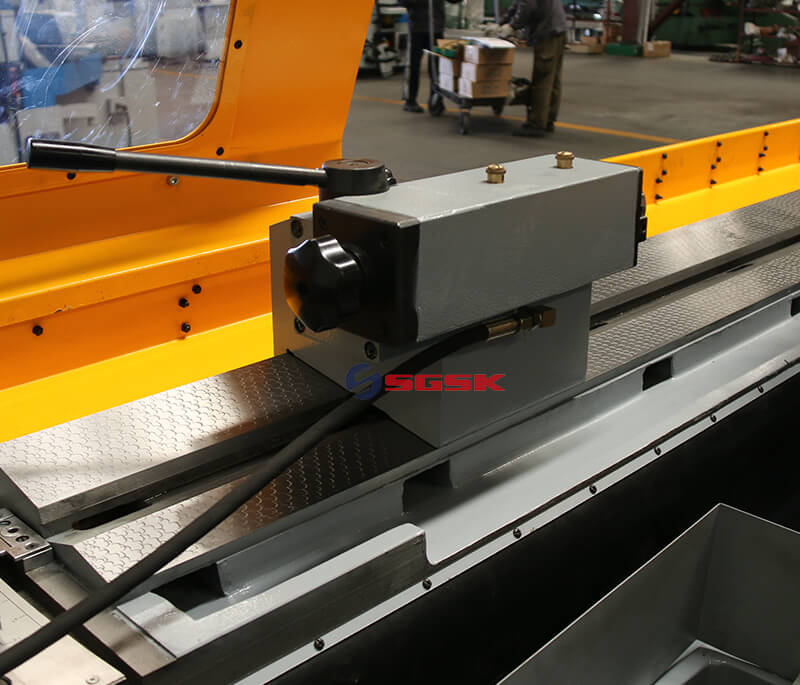

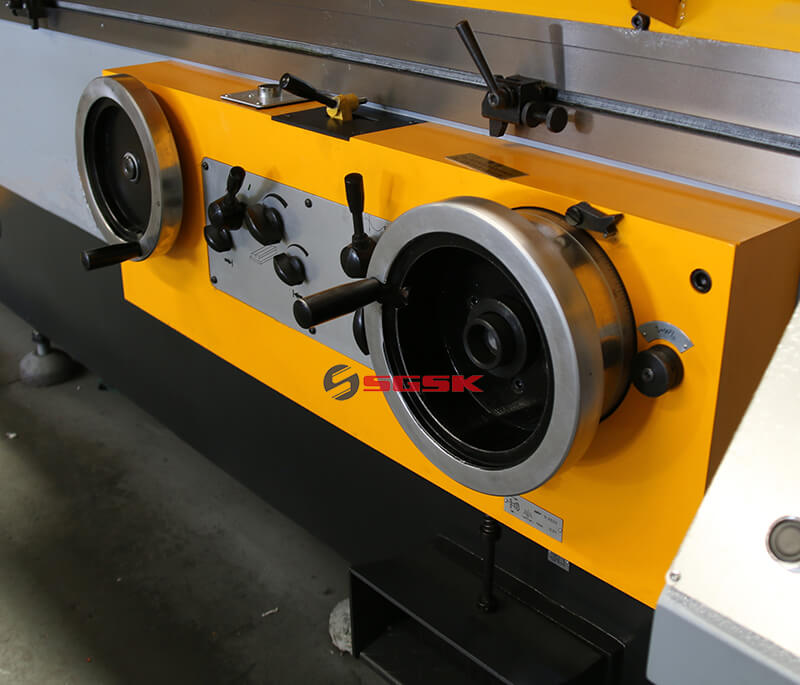

M1420 Cylindrical Grinding Machine

Product Main Technical Parameters

SpecificationsUnitsM1420MW1420
Max. length ground(O.D)mm500、 750500、750
Max. length ground(I.D)mm125125
Center heightmm8-200135
Dia. Ground(O.D)mm30-808-200
Dia. Ground(I.D)mm12525-100
Max. weight of work piecekg50100
Swiveling angle °+90°+90°
Center taperMT34
Spindle speedr/min50HZ:60~46050HZ:25-380 Stepless
Swiveling angler/min/1670
Wheelhead rapid travelmm/50
Max. travelmm/205
Swiveling angle °
-30°
Hand feed per revmm/rev1rough:2
precision:0.5
Hand feed per gramm/gra0.00125rough:0.01
precision:0.0025
Wheel size (ODxWxID)mm400x40x203400*50*203
 Peripheral velocitym/s3535
Spindle speedr/min1000010000/15000
Wheel size (OD*W*ID)mmmax50x25xl3
minl7x20x6
Max.:50*25*13
Min.:17*20*6
Hand feed per revmm/rev/6
Cockwise °5° ( 500 ) 3°(750)
 Anticlockwise °°9° (500)
8° (750)
Longitudinal speed range of tablem/min0.1-40.1-4
Center taperMT34
Quill travelmm2530
Wheelhead motor powerkw34
Internal grindingkwThe same Motor with wheelhead1.1
Workhead motor powerkw0.25/0.371.1
Machine weightkg2400 ( 500)
2900(750)
3000 (500)
3200 (750)
Overall dimension(L * W * H)mm192x145x205(500)2350*2030*2050 (500)
213x145x205 (750)2750*2030*2050 (750)
