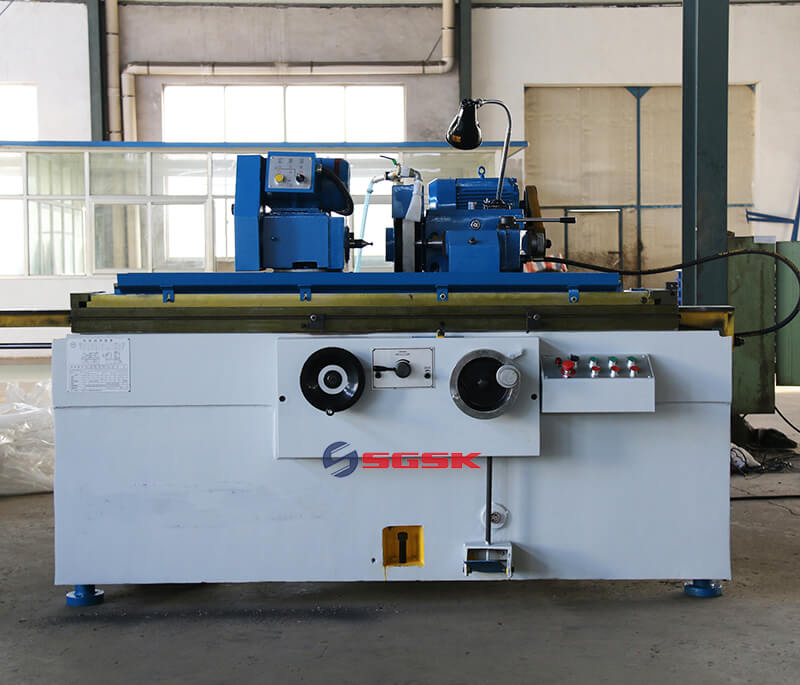

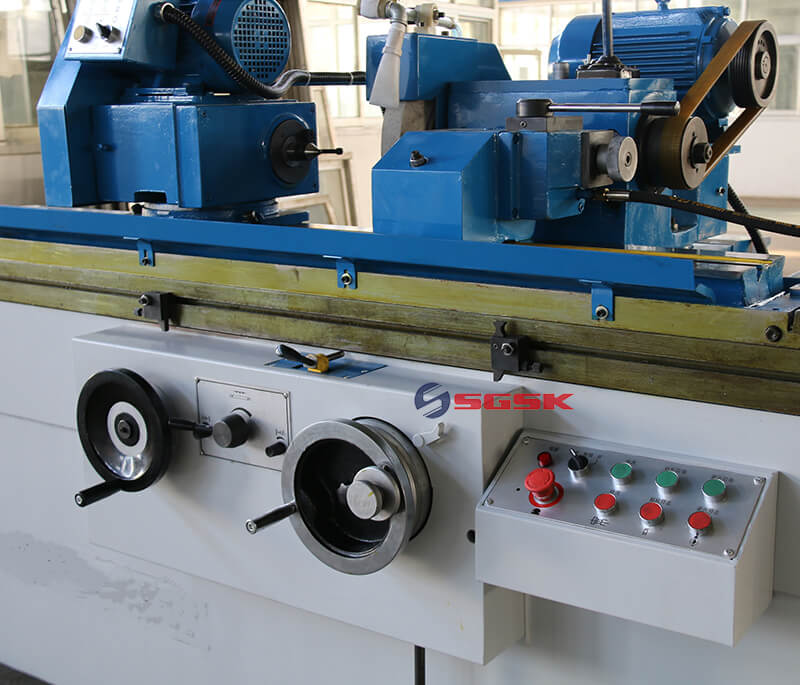

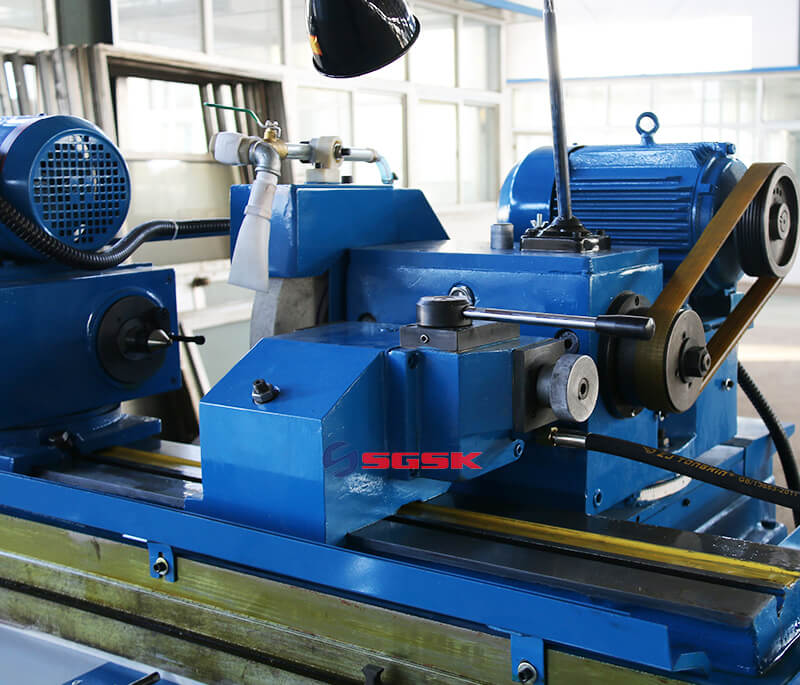

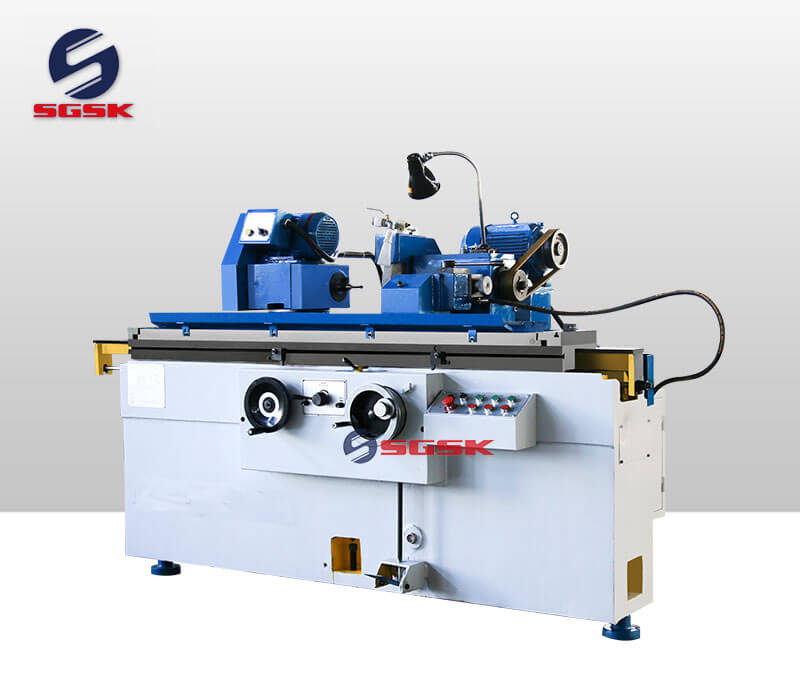

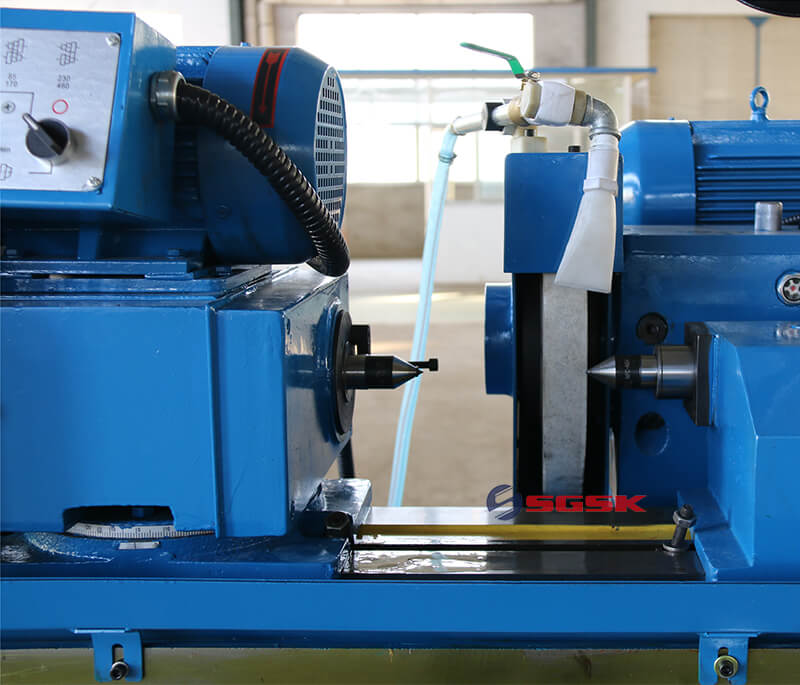

M1350 Cylindrical Grinding Machine

Inquire Now Next Product

Product Main Technical Parameters

Specifications		Units	M1350	M1350A/B
Max. length ground(O.D)		mm	1500、2000、3000、4000	2000、3000、4000
Center height		mm	270	270
Dia. Ground(O.D)		mm	25-500	25-500
Max. weight of work piece kg		kg	1000	2000
Center taper		MT	6	6
Spindle speed		r/min	50HZ:18〜180 stepless	50HZ:10~100 stepless
Wheel size (ODxWxID)		mm	75075305	75075305
Peripheral velocity		m/s	35	35
wheel spindle speed		r/min	870	870
Wheel head rapid travel		mm	100	100
Max. travel		mm	438	438
Hand feed per rev		mm/rev	rough:4 precision：0.5	rough:4 precision：0.5
Hand feed per gra		mm/gra	rough：0.02 precision：0.0025	rough：0.02 precision：0.0025
Wheel size (ODxWxID)		mm	75075305	75075305
Peripheral velocity		m/s	35	35
Hand feed per		mm/rev	5	5
Max. swiveling angle of table	Clockwise	°	3° (1500) 2° (2000) 2° (3000) 1° (4000)	2° (2000) 2° (3000) 1° (4000)
Max. swiveling angle of table	Anticlockwise	°	6° (1500) 5° (2000) 3° (3000) 2° (4000)	5° (2000) 3° (3000) 2° (4000)
Longitudinal speed range of table		m/min	0.1-3	0.1-3
Center taper		MT	6	6
Quill travel mm		mm	70	70
Wheelhead motor power		kw	15	15
Workhead motor power		kw	4	7.5
Machine weight		kg	1000(1500) 1100(2000) 1300(3000) 1700(4000)	1300(2000) 1740(3000) 2000(4000)
Overall dimension(L * W * H)		mm	456020902100(1500)	546020902100(2000)
			546020902100(2000)	746020902100(3000)
			746020902100(3000)	946020902100(4000)
			946020902100(4000)
