Product Main Technical Parameters
| Specifications | Units | M1450(A) |
| Max. length ground(O.D) | mm | 1500、2000、3000、4000 |
| Max. length ground(I.D) | mm | 320 |
| Center height | mm | 270 |
| Dia. Ground(O.D) | mm | 25-500 |
| Dia. Ground(I.D) | mm | 30-200 |
| Max. weight of work piece | kg | 1000 (2000) |
| Swiveling angle | ° | +90° |
| Center taper | MT | 6 |
| Spindle speed | r/min | 50HZ:20~224 Stepless |
wheel spindle speed | r/min | 1330/665 |
| Wheelhead rapid travel | mm | 100 |
| Max. travel | mm | 370 |
| Swiveling angle | ° | -30° |
| Hand feed per rev | mm/rev | rough：4 precision：0.5 |
| Hand feed per gra | mm/gra | rough：0.02 precision：0.0025 |
| Wheel size (ODxWxID) | mm | 500*75*305 |
| Peripheral velocity | m/s | 35/17.5 |
| Spindle speed | r/min | 10000 |
| Wheel size (OD*W*ID) | mm | Max.：175*32*32 Min.：30*25*10 |
| Hand feed per rev | mm/rev | 5 |
| Clockwise | ° | 3° (1500) 7° (2000、3000) 1° (4000) 2° (3000) 1° (4000) |
| Anticlockwise ° | ° | 6° (1500) 5° (2000) 3° (3000) 2° (4000) |
| Longitudinal speed range of table | m/min | 0.1-3 |

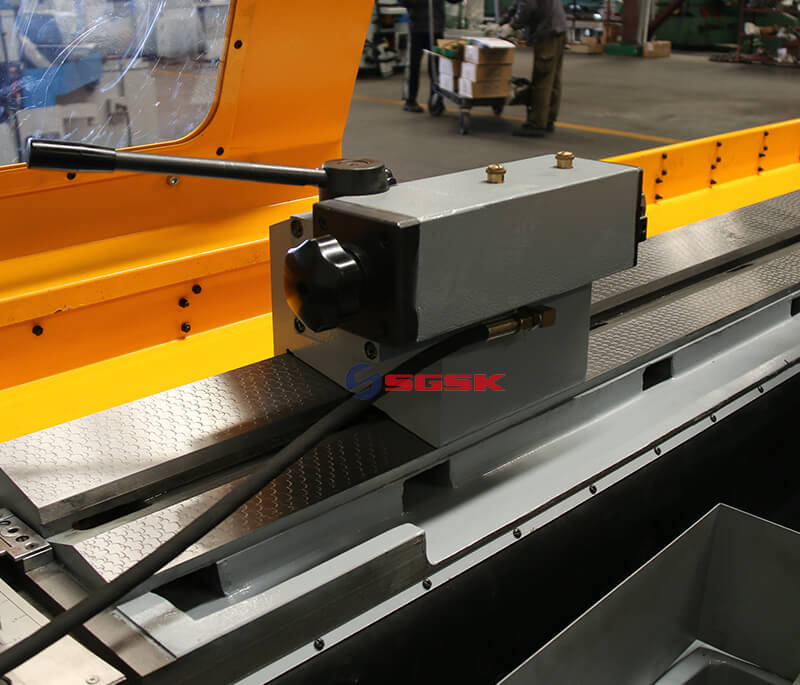

| Center taper | MT | 6 |
| Quill travel | mm | 70 |
| Wheelhead motor power | kw | 5/7.5 |
| Internal grinding | kw | 1.5 |

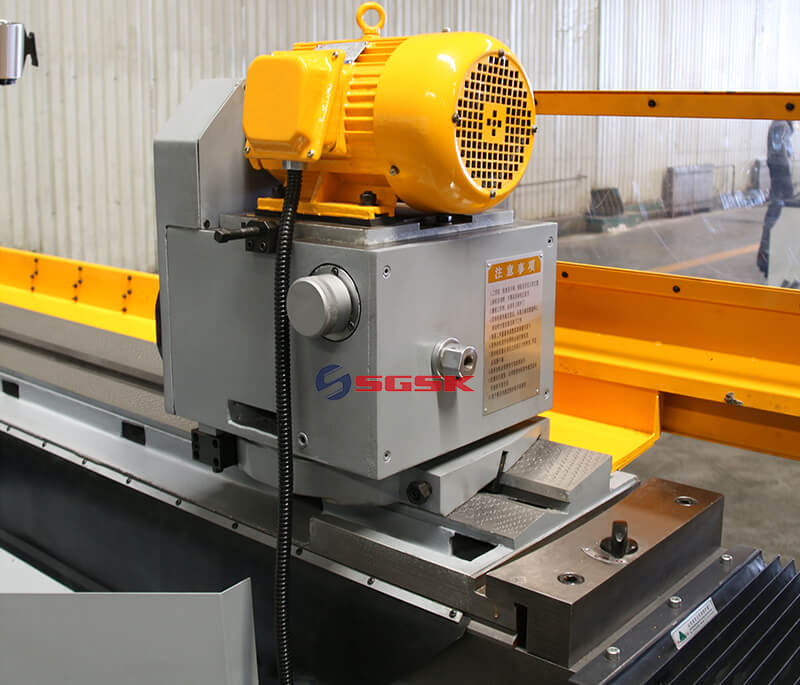

| Workhead motor power | kw | 4 (7.5) |
| Machine weight | kg | 10000 (1500) 11000 (2000) 15000 (3000) 17000 (4000) |
| Overall dimension(L * W * H) | mm | 4560*2090*2100 (1500) |
| 5460*2090*2100 (2000) | ||
| 7460*2090*2100 (3000) | ||
| 9460*2090*2100 (4000) |
