Product Main Technical Parameters

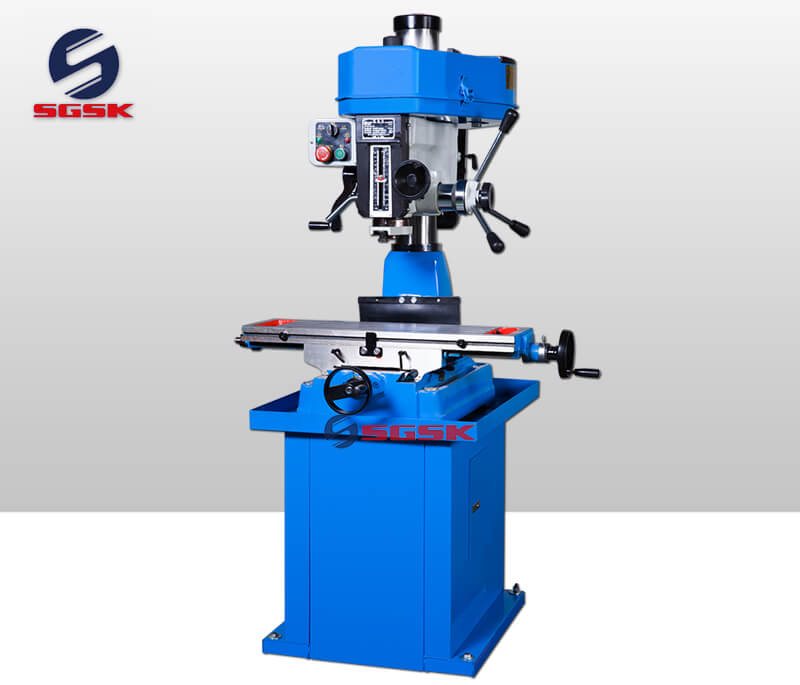

Drilling and Milling Machine Main Performance Characteristics：
Reinforced type gear, transmission torque large
B1 type optional2-speed motor, spindle speed range widely.
Drilling and Milling Machine Application：
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Drilling and Milling Machine Main Technical Specifications:
| Specifications | ZX7032 |
| Max. Drilling capacity (mm) | 31.5 |
| Max. face mill capacity (mm) | 80 |
| Diameter of vertical milling (mm) | 22 |
| Spindle travel (mm) | 130 |
| Distance spindle axis to column generating line (mm) | 202 |
| Max. Distance spindle nose to table (mm) | 460 |
| Spindle taper | MT3 |
| Spindle speeds range (r/min) | 100～2150 |
| Spindle speeds series | 12 |
| Dimension of worktable surface (mm) | Standard : 730x210 select: 820x240 |
| Table travel (mm) | Standard :450×170 select: 540x170 |
| Overall height (mm) | 1100 |
| Main motor (W) | Single-phase：1100 Three-phase： 1500 |
| G.W/N.W(Kg) | 285/250 |
| Packing dimension (cm) | 97×77×124 |
