Product Model:

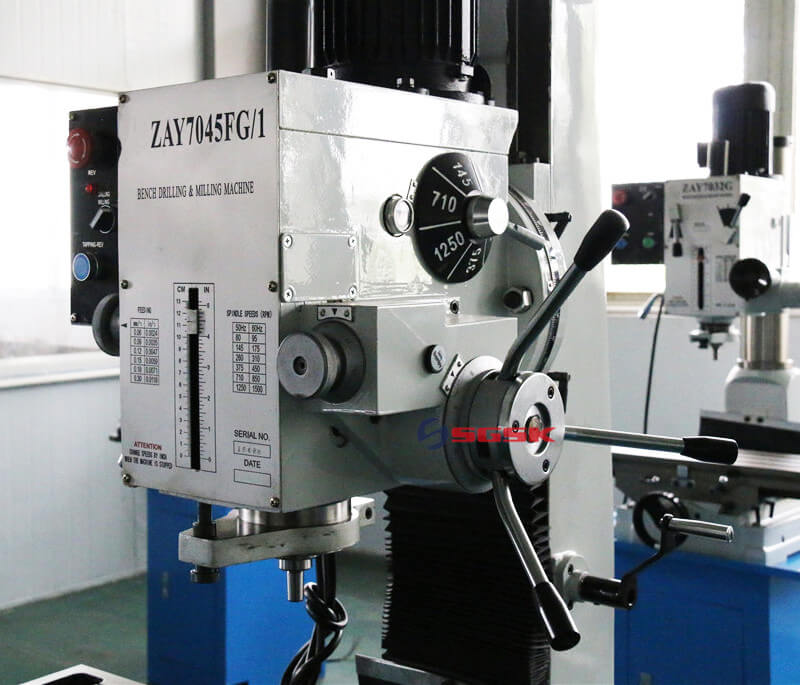

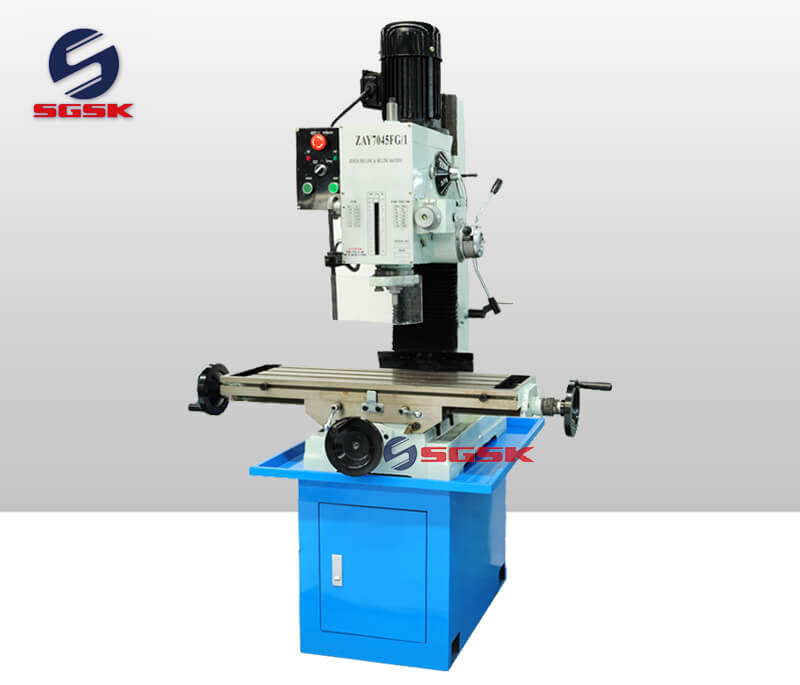

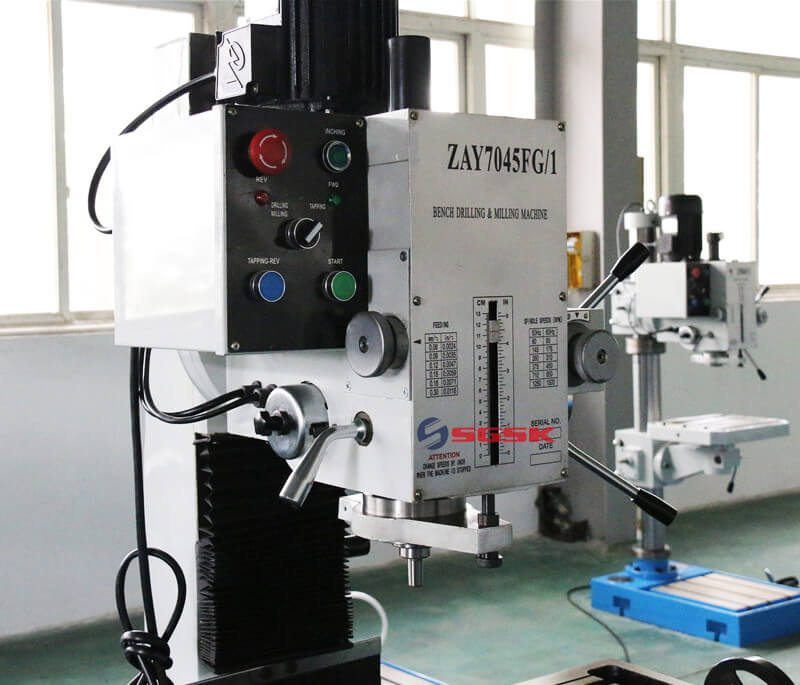

ZAY7032FG/1 ZAY7040FG/1 ZAY7045FG/1 Drilling and Milling Machine

Product Main Technical Parameters

Drilling and Milling Machine Main Performance Characteristics:

1.Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed
2.Milling, drilling, boring, reaming and tapping
3.Head swivels 90 vertical
4.Micro feed precision

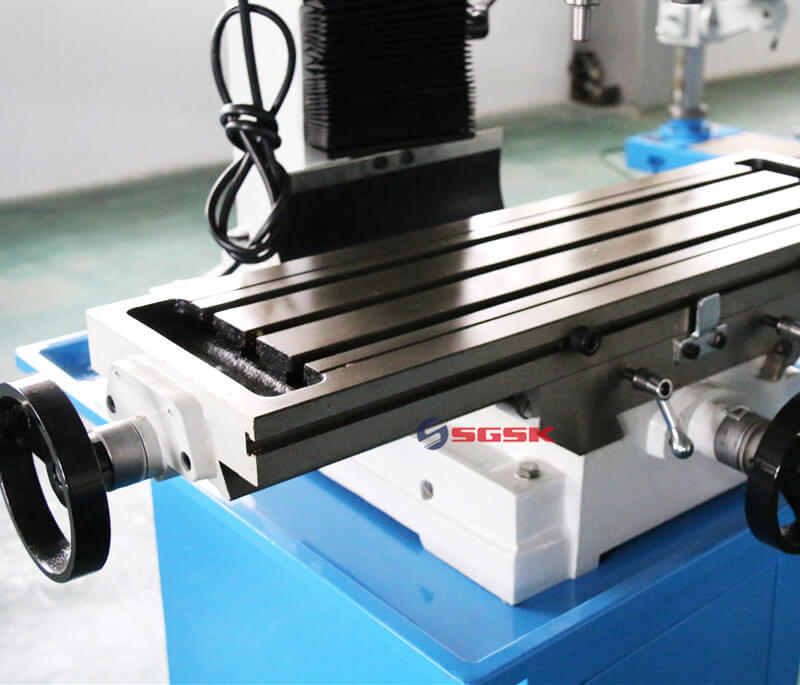

5.Adjustable gibs on table precision.
6.Strong rigidity, powerful cutting and precisely positioning.


Drilling and Milling Machine Main Technical Specifications:

ITEMZAY7032FG/1ZAY7040FG/1ZAY7045FG/1
Drilling capacity32mm40mm45mm
Max.boring diameter50mm60mm70mm
Max Face mill capacity63mm80mm80mm
Max End mill capacity20mm32mm32mm
Max distance from spindle nose to table450mm450mm450mm
Min distance from spindle axis to column260mm260mm260mm
Spindle travel130mm130mm130mm
Spindle taperM.T.3 or R8M.T.4 or R8M.T.4 or R8
Step of spindle speed666
Range of spindle speed     50Hz80-1250 r.p.m80-1250 r.p.m80-1250 r.p.m
60Hz95-1500 r.p.m95-1500 r.p.m95-1500 r.p.m
Auto-feeding step of spindle666
Auto-feeding amount of spindle0.06-0.30mm/r0.06-0.30mm/r0.06-0.30mm/r
Swivel angle of headstock (perpendicular)±90°±90°±90°
Table size800×240mm800×240mm800×240mm
Forward and backward travel of table175mm175mm175mm
Left and right travel of table500mm500mm500mm
Motor Power0.75KW(1HP)1.1KW(1.5HP)1.5KW(2HP)
Net/Gross weight320kg/370kg323kg/373kg325kg/375kg
Packing size770×880×1160mm770×880×1160mm770×880×1160mm



Standard accessoriesOptional accessories

Allen wrench,

Drift ,

Spanner

Drill chuck rod,

Screw-driver,

Draw bar and gasket

Stand,Oil basin,

Power feed attachment,

Machine vice,

Drill chuck,

Milling cutter holder,

Reducing sleeve,

Mill chuck,

Boring rod,

Tapping electrical system ,

Coolant system
