Product Model:

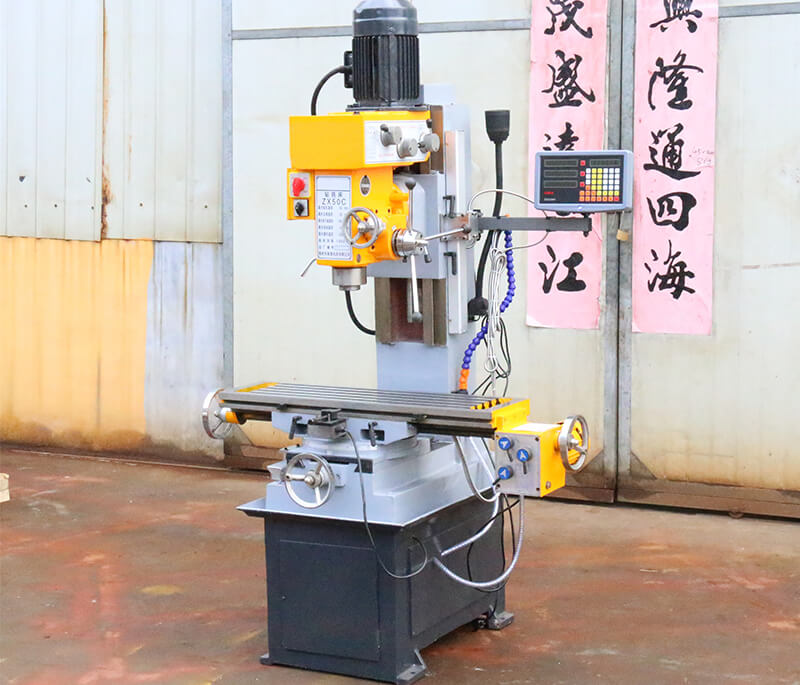

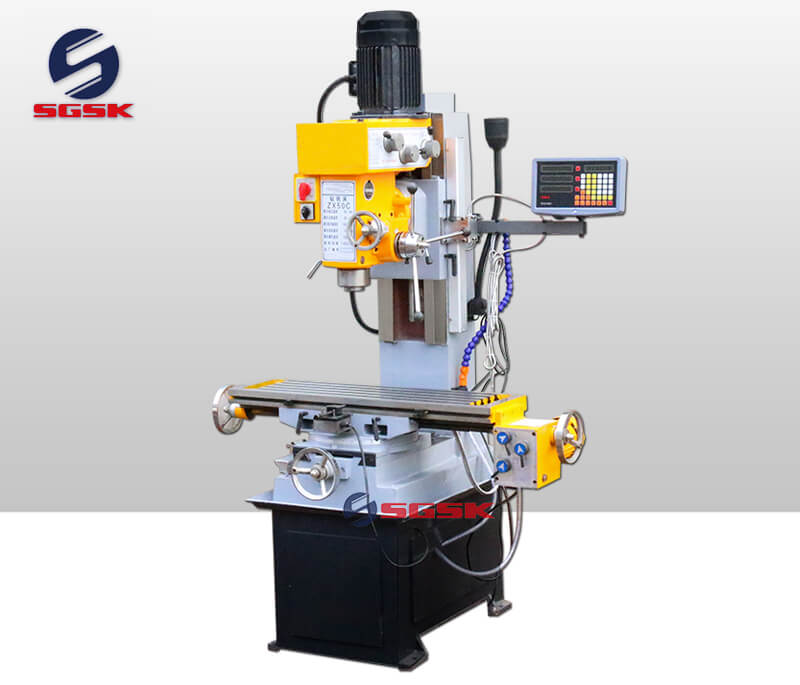

ZX50C Drilling and Milling Machine

Product Main Technical Parameters

SpecificationsZX50C
Vertical milling capacity(mm)32
Face milling capacity(mm)100
Drilling capacity(mm)50
Boring capacity(mm)120
Tapping capacity.M16

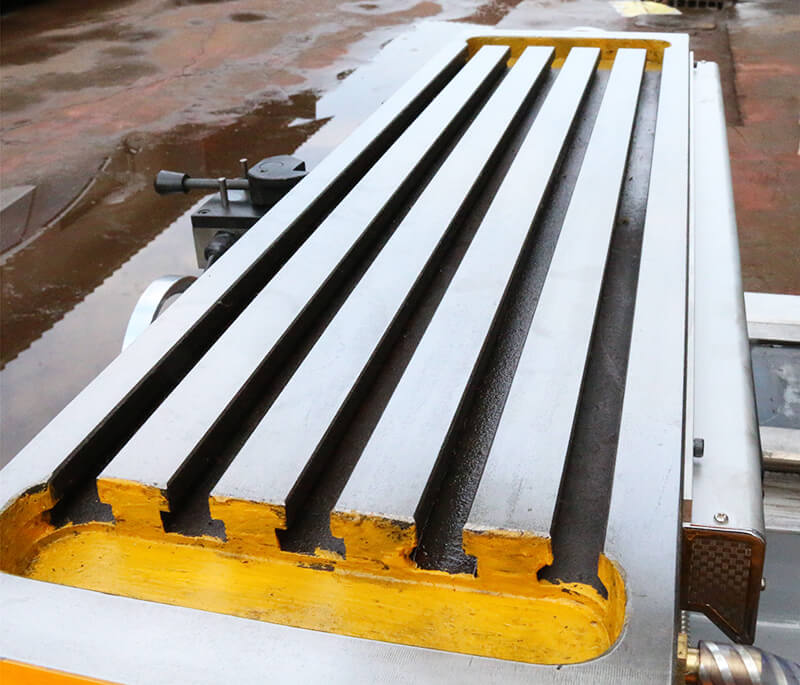

Table size(mm)1120×250
Longitudinal travel(mm)500
Cross travel(mm)310
Spindle travel(mm)120
Spindle nose to table surface(mm)0-570
Spindle center to column(mm)350
Spindle taperMT4
Spindle speed range (r.p.m)115-1750 8 steps
Main motor(kw)1.5/0.85
Overall dimensions(mm)1520×1120×1850
N.W (kg)950
