Product Model:

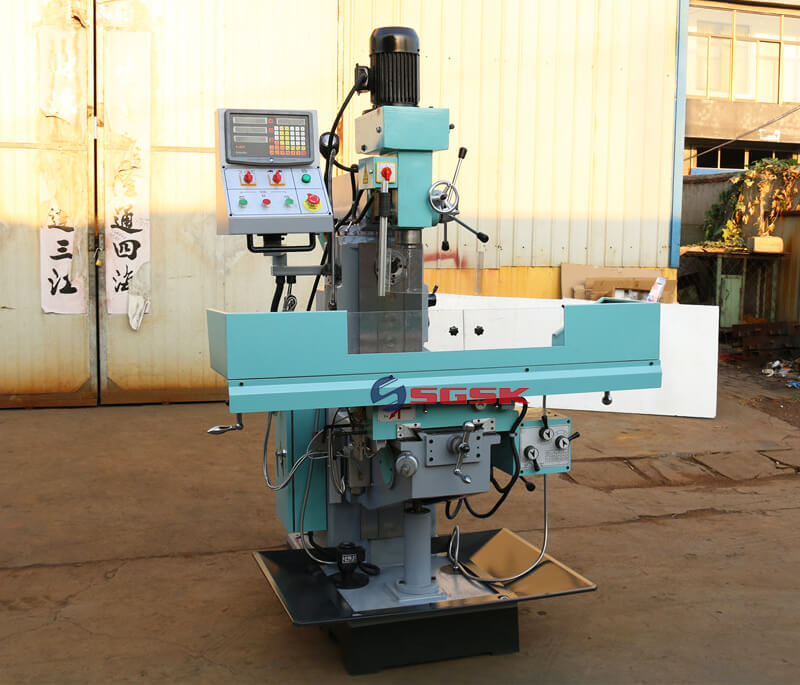

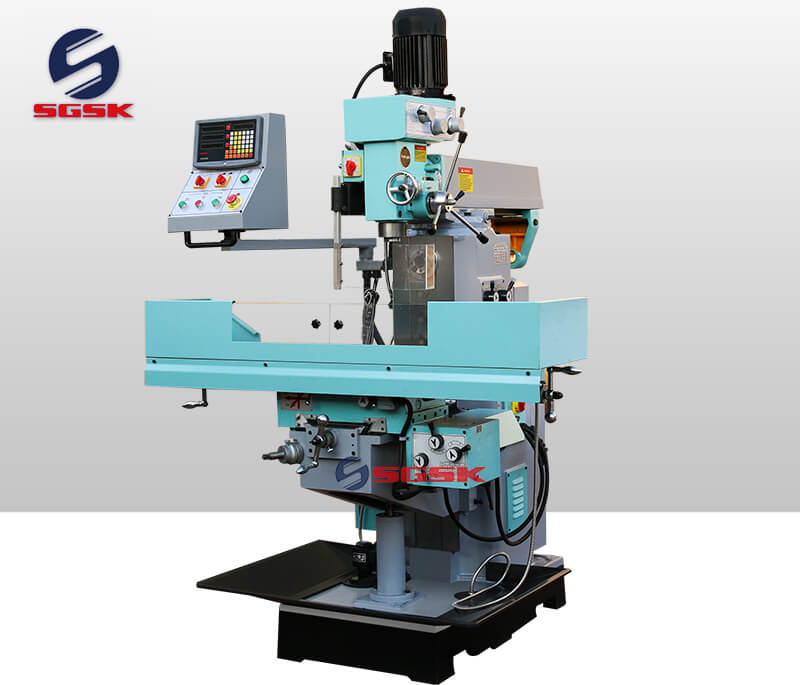

ZX6350D Drilling and Milling Machine

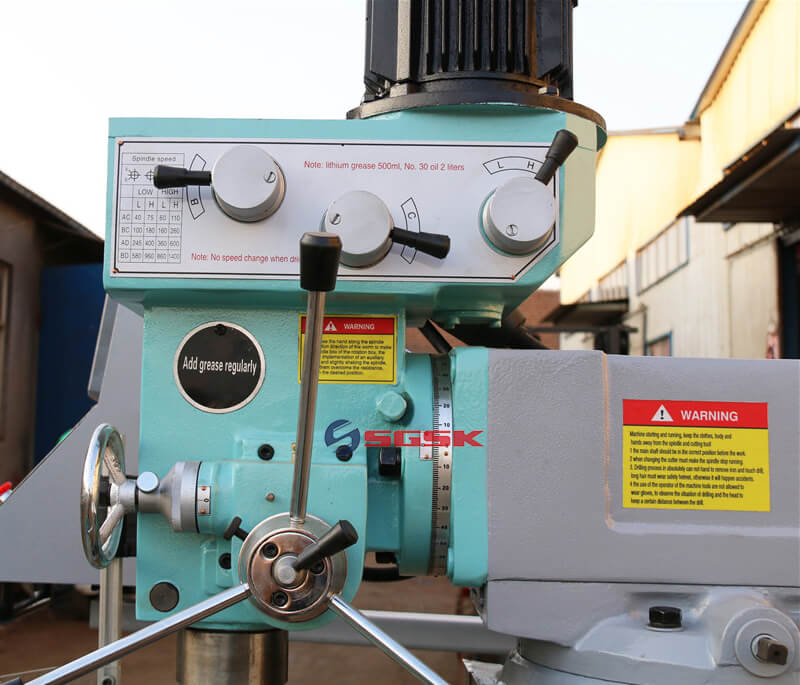

Product Main Technical Parameters

Drilling and Milling Machine Main Performance Characteristics:

1.Gear transmission for vertical/horizontal milling head

2.X/Y  axis auto feed

3.Headstock swivel +/-45°

4.Guide way with sparking quenching

Drilling and Milling Machine Main Technical Specifications:

Max. drilling dia.mm50
Max. end milling widthmm100
Max. vertical milling dia.mm25
Max.boring dia.mm120
Max. tapping dia.mmM16
Distance from spindle nose to table surfacemm80-460
Spindle taper
Spindle speed ranger.p.m36-1526(V) 40-1300(H)
Spindle travelmm120
Table sizemm1200×280    Optional: 1500x280
Table travelmm680×280     Optional: 980x280

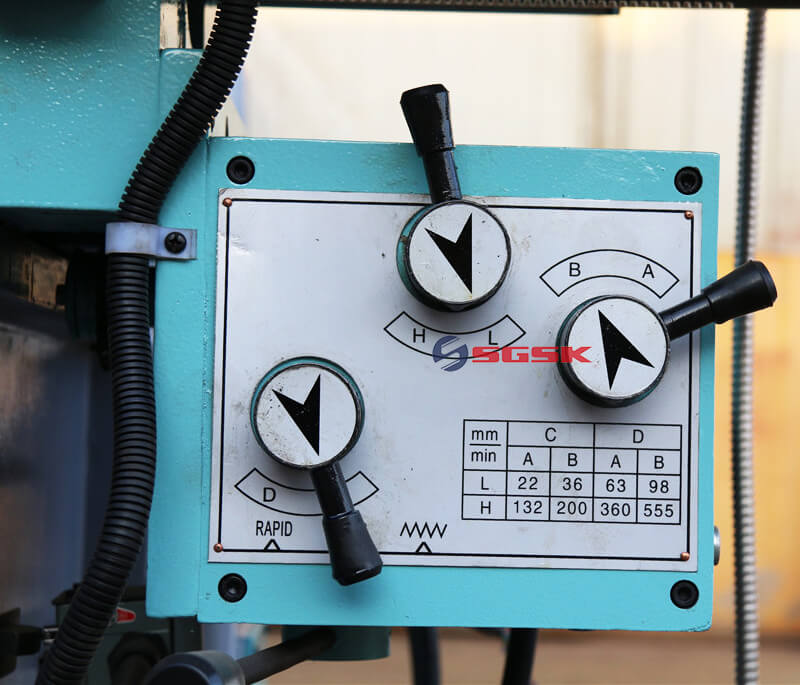

Table feed speedmm/minX/Y:22-555
Overall dimensionsmm1500×1600×2200
Spindle motor powerkw1.5/2.2(V) 3(H)
Machine weight kg1350/1450
