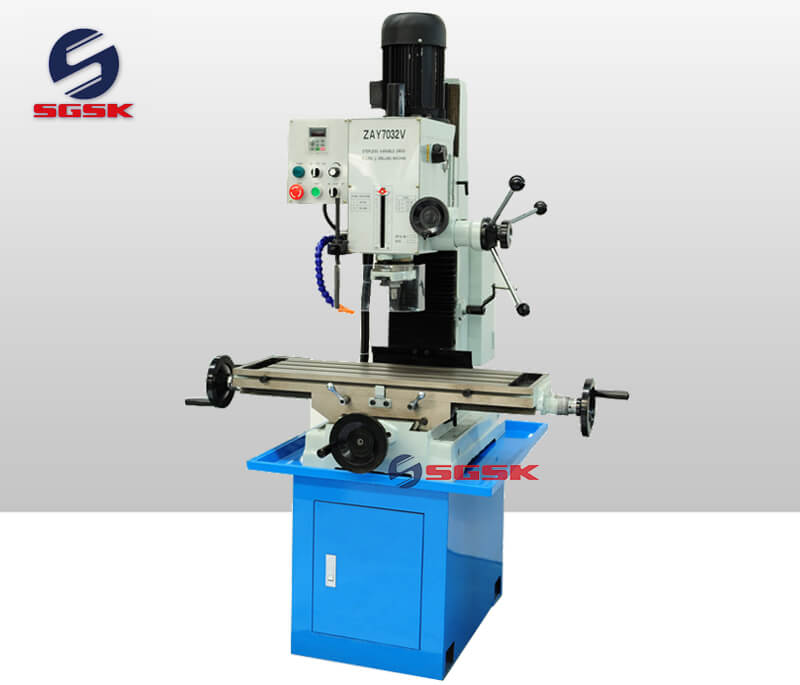

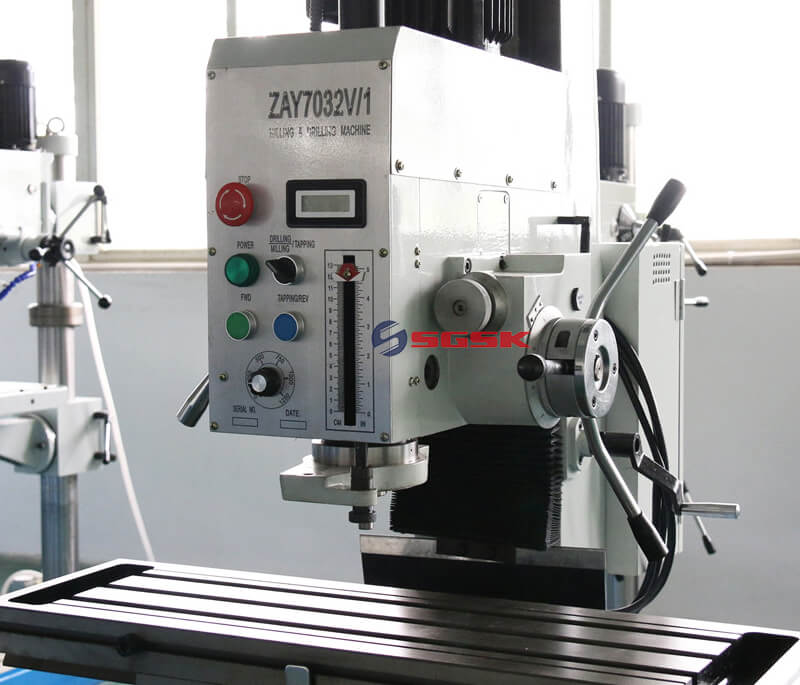

ZAY7032V-1 ZAY7040V-1 ZAY7045V-1 Drilling and Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Drilling and Milling Machine Main Performance Characteristics：

1.Variable speed
2.Milling, drilling, boring, reaming and tapping
3.Head swivels 90 vertical
4.Micro feed precision
5.Adjustable gibs on table precision.
6.Strong rigidity, powerful cutting and precisely positioning.

Drilling and Milling Machine Main Technical Specifications:

ITEM	ZAY7032V/1	ZAY7040V/1	ZAY7045V/1
Max.drilling capacity	32mm	40mm	45mm
Max Face mill capacity	63mm	80mm	80mm
Max End mill capacity	20mm	32mm	32mm
Distance from spindle nose to table	450mm	450mm	450mm
Min.distance from spindle axis to column	260mm	260mm	260mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Range of spindle speed(2 steps)	100-530,530-2800r.p.m,	100-530,530-2800r.p.m,	100-530,530-2800r.p.m,
Auto-feeding step of spindle	6	6	6
Automatic feeding amount of spindle	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°	±90°	±90°
Table size	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	175mm	175mm	175mm
Left and right travel of table	500mm	500mm	500mm
Motor power(AC)	1.1KW	1.1KW	1.5KW
Voltage/Frequency	110V or 220V	110V or 220V	110V or 220V
Net weight/Gross weight	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	770×880×1160mm	770×880×1160mm	770×880×1160mm
