Product Model:

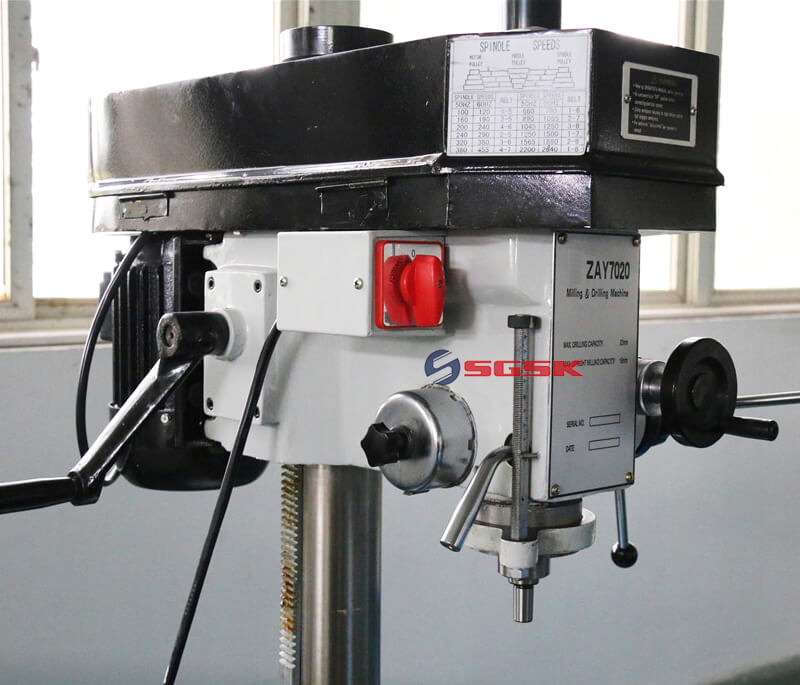

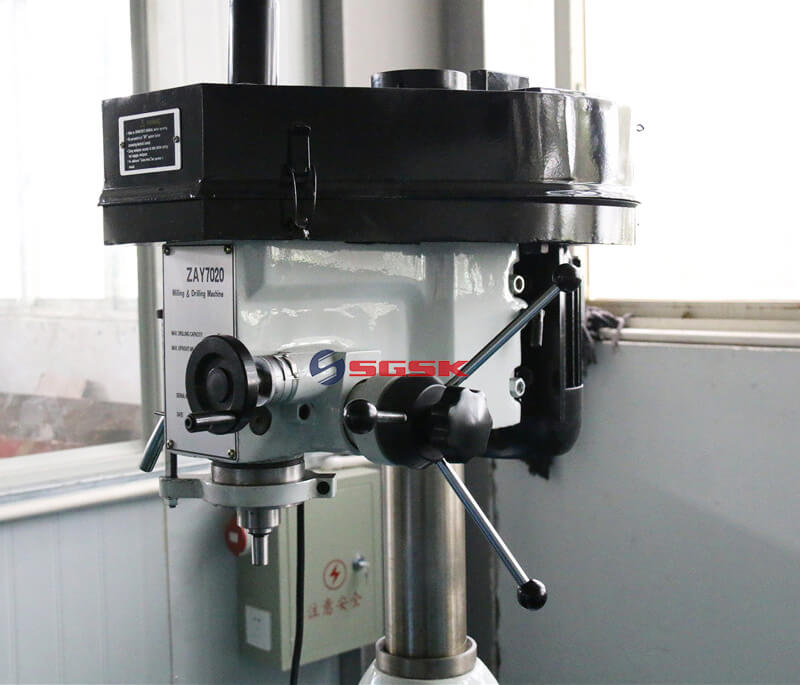

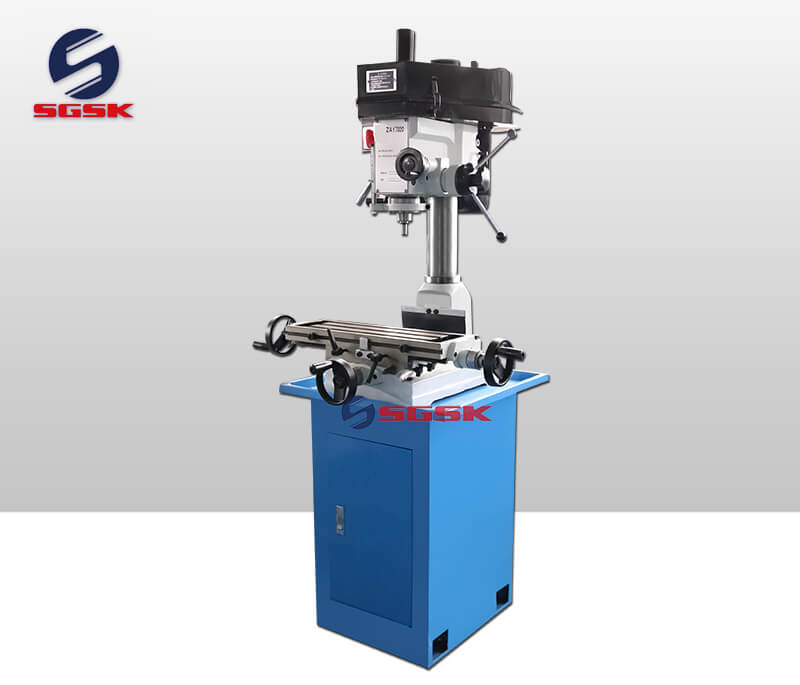

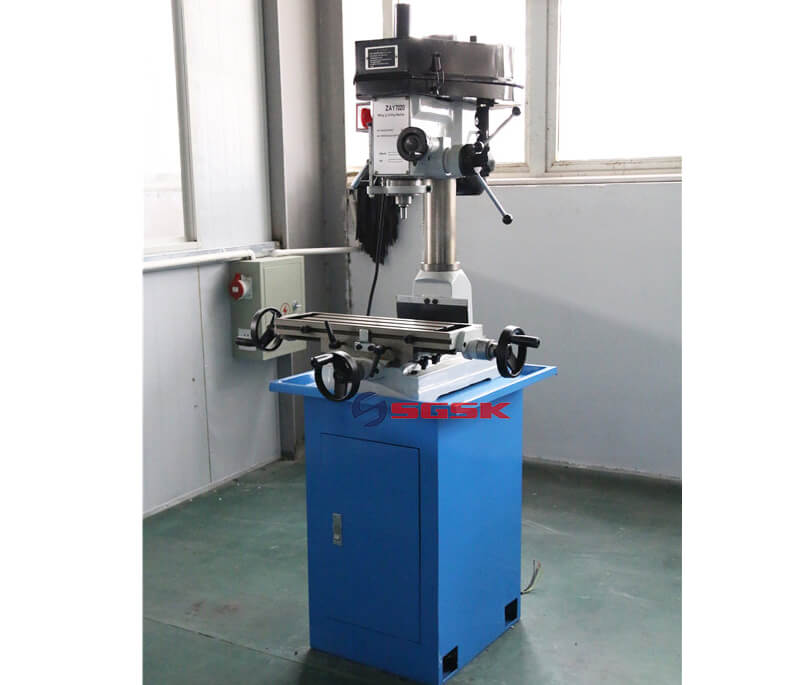

ZAY7020/7032/7040/7045 Drilling and Milling Machine

Product Main Technical Parameters

Drilling and Milling Machine Main Performance Characteristics:

1.Driven and round column

2.Milling, drilling, tapping. Boring and reaming
3.Headstock swivels 360 horizontally
4.Micro feed precision
5.12 steps speed
6.Adjustable gibs on table precision
7.Posive spindle lock
8.Strong rigidity, powerful cutting and precisely positioning


Drilling and Milling Machine Main Technical Parameters:

ModelZAY7020ZAY7032ZAY7040ZAY7045
Drilling capacity20mm32mm40mm45mm
Face milling capacity63mm63mm80mm80mm
End milling capacity20mm20mm32mm32mm
Distance from spindle nose to table435mm450mm450mm450mm
Min.distance from spindle axis to column181.5mm203.5mm203.5mm203.5mm
Spindle travel85mm130mm130mm130mm
Spindle taperM.T.3 or R8M.T.3 or R8M.T.4 or R8M.T.4 or R8
Step of spindle speed12121212
Range of spindle speed 50Hz100-2200 r.p.m80-2080 r.p.m80-2080 r.p.m80-2080 r.p.m
60Hz120-2640 r.p.m100-2500 r.p.m100-2500 r.p.m100-2500 r.p.m
Swivel angle of headstock (horizontally)360°360°360°360°

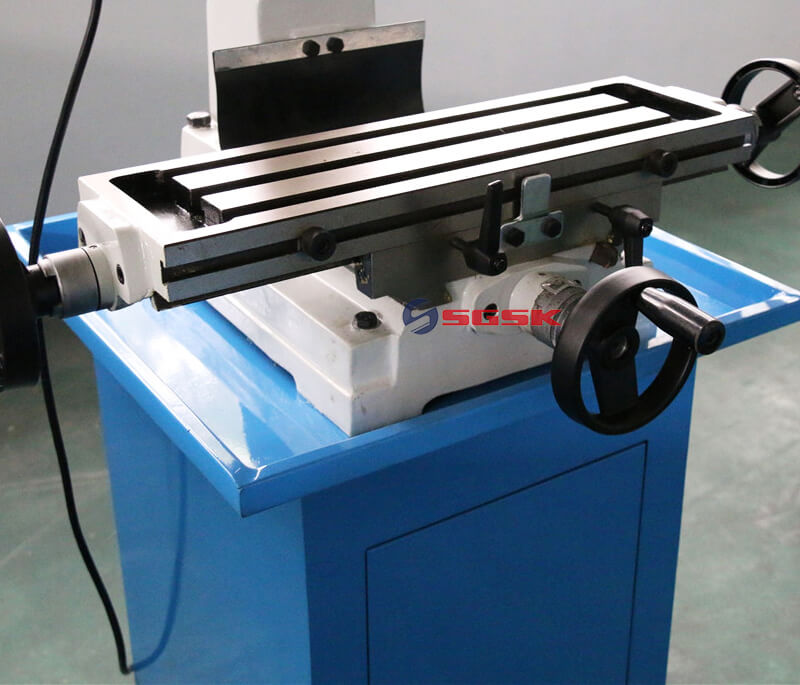

Table size520×160mm800×240mm800×240mm800×240mm
Forward and backward travel of table140mm175mm175mm175mm
Left and right travel of table290mm500mm500mm500mm
Motor Power0.55KW0.75KW1.1KW1.5KW
Net weight/gross weight130kg/190kg280kg/330kg283kg/333kg285kg/335kg
Packing size620×750×1000mm1020×820×1160mm1020×820×1160mm1020×820×1160



Standard accessoriesOptional accessories

Allen wrench,

Drift ,Spanner,

Drill chuck rod,

Screw-driver,

Draw bar and gasket

Stand,

Oil basin,

Power feed attachment,

Machine vice,

Drill chuck,

Milling cutter holder,

Reducing sleeve,

Mill chuck,

Boring rod,

Tapping electrical system ,

Coolant system
