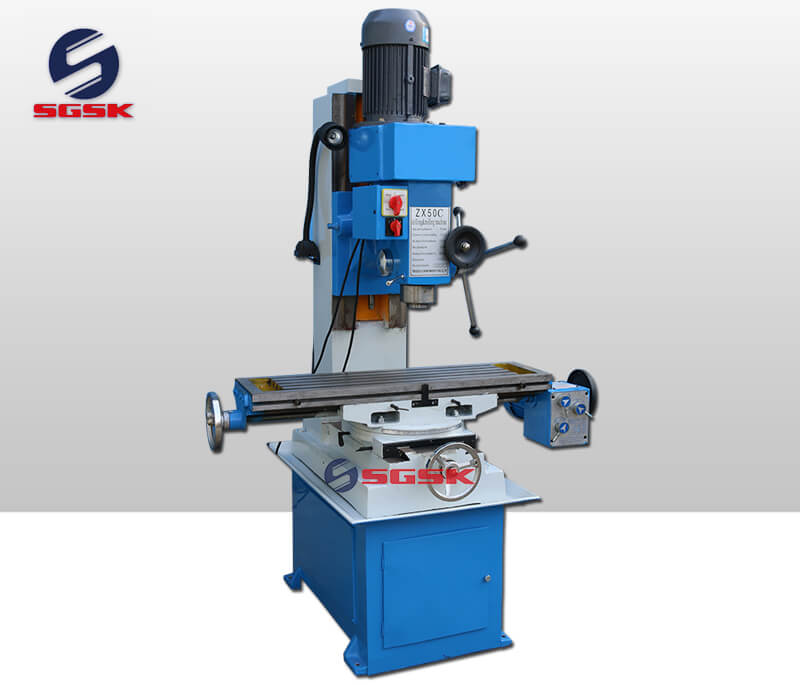

Product Main Technical Parameters
Drilling and Milling Machine Main Performance Characteristics：
1. Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive

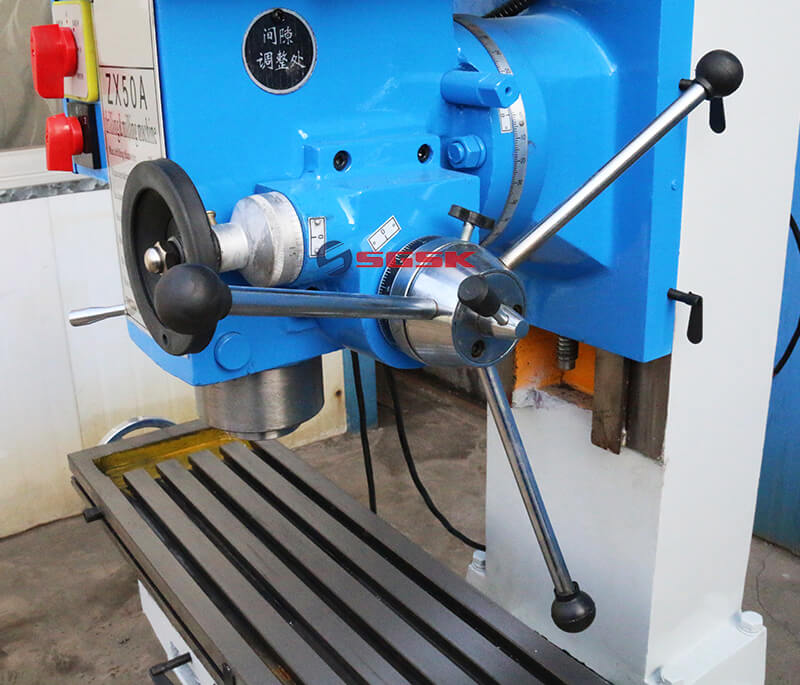

4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines

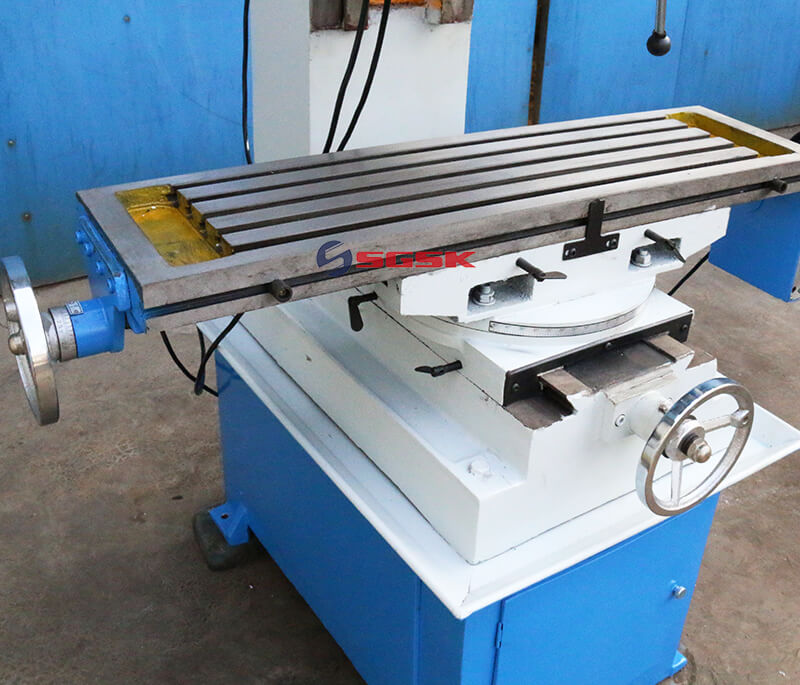

6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Drilling and Milling Machine Application：
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Drilling and Milling Machine Main Technical Specifications:
| Specifications | ZX50A |
| Max.drilling dia.(mm) | 50 |
| Max.end milling width(mm) | 100 |
| Max.vertical milling dia.(mm) | 25 |
| Max.taopping dia. | M16 |
| Spindle speed range (r.p.m) | 230-1825 |
| Spindle travel(mm) | 120 |
| Table size(mm) | 800×240 |
| Table travel(mm) | 400×230x380mm |
| Machine size | 460mm*970*1150MM |
| Stand size | 640mm *970*500MM |
| Overall dimensions(mm) | 1100×970×1650 |
| Motor(kw) | 0.85/1.5 |
| N.W/G.W(kg) | 550/650 |
