Product Model:

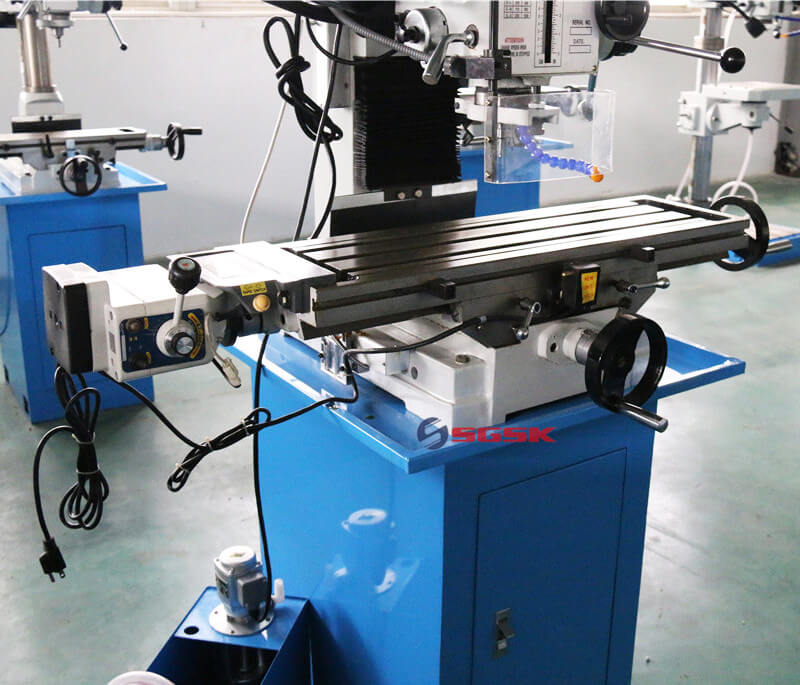

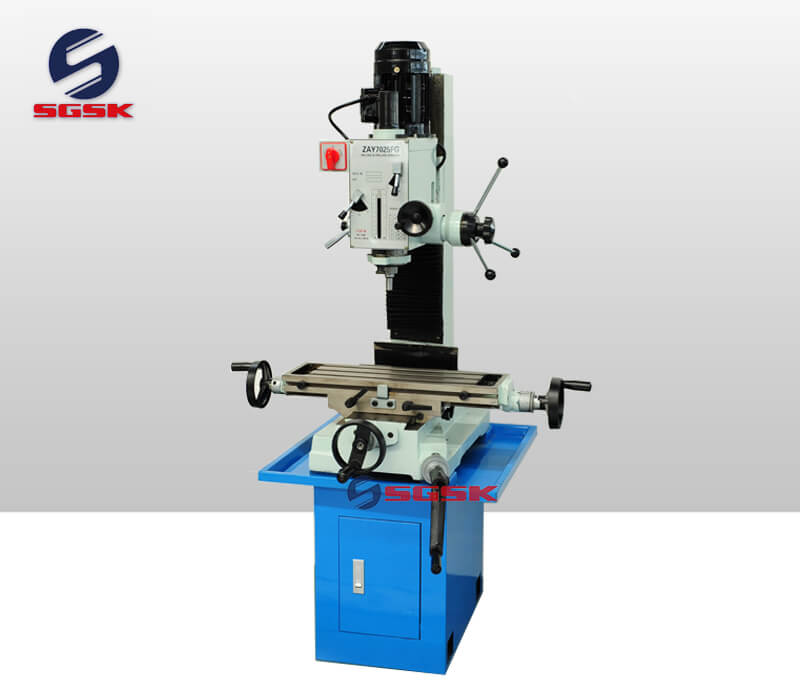

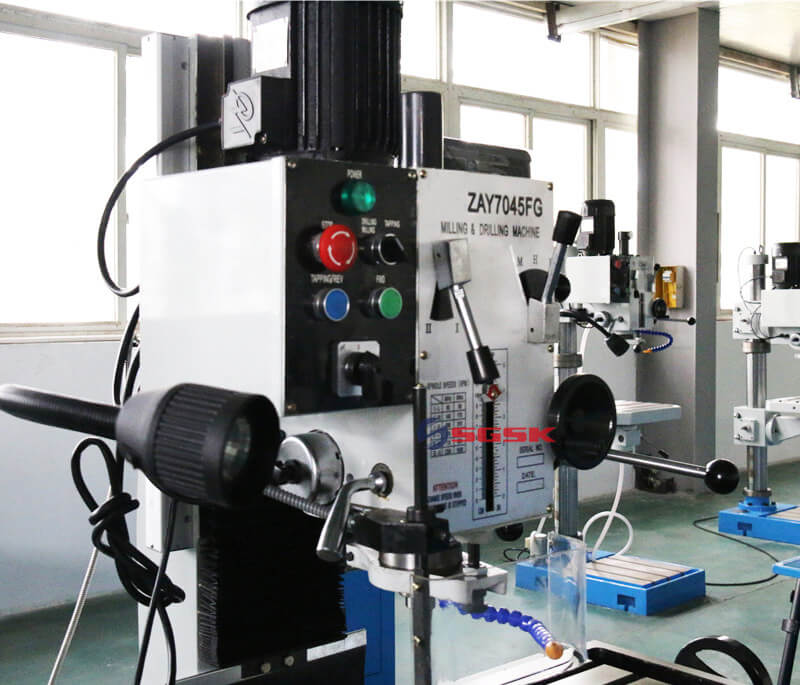

ZAY7025FG ZAY7032FG ZAY7040FG ZAY7045FG Drilling and Milling Machine

Product Main Technical Parameters

Drilling and Milling Machine Main Performance Characteristics:

1.Gear-driven type and square column
2.Milling, drilling, tapping, boring and reaming
3.Head swivels 90 verticaly
4.Micro feed precision
5.Adjustable gibs on table precision.
6.Strong rigidity, powerful cutting and precisely positioning.

Drilling and Milling Machine Main Technical Specifications:

Max Face mill capacity25mm32mm40mm45mm
Max End mill capacity63mm63mm80mm80mm
End milling capacity20mm20mm32mm32mm
Max.distance from spindle nose to table445mm450mm450mm450mm
Min.distance from spindle axis to column203mm260mm260mm260mm
Spindle travel85mm130mm130mm130mm
Spindle taperM.T.3 or R8M.T.3 or R8M.T.4 or R8M.T.4 or R8
Step of spindle speed6666
Range of spindle speed   50Hz95-1420 r.p.m80-1250 r.p.m80-1250 r.p.m80-1250 r.p.m
60Hz115-1700 r.p.m95-1500 r.p.m95-1500 r.p.m95-1500 r.p.m
Swivel angle of headstock(perpendicularly)90°90°90°90°
Table size520×160mm800×240mm800×240mm800×240mm
Forward and backward travel of table140mm175mm175mm175mm
Left and right travel of table290mm500mm500mm500mm
Motor Power0.37KW0.75KW(1HP)1.1KW(1.5HP)1.5KW(2HP)
Net weight/gross weight180kg/240kg320kg/370kg323kg/373kg325kg/375kg
Packing size680×750×1000mm770×880×1160mm770×880×1160mm770×880×1160m


Standard accessoriesOptional accessories

Allen wrench,

Drift ,Spanner,

Drill chuck rod,


Draw bar and gasket


Oil basin,

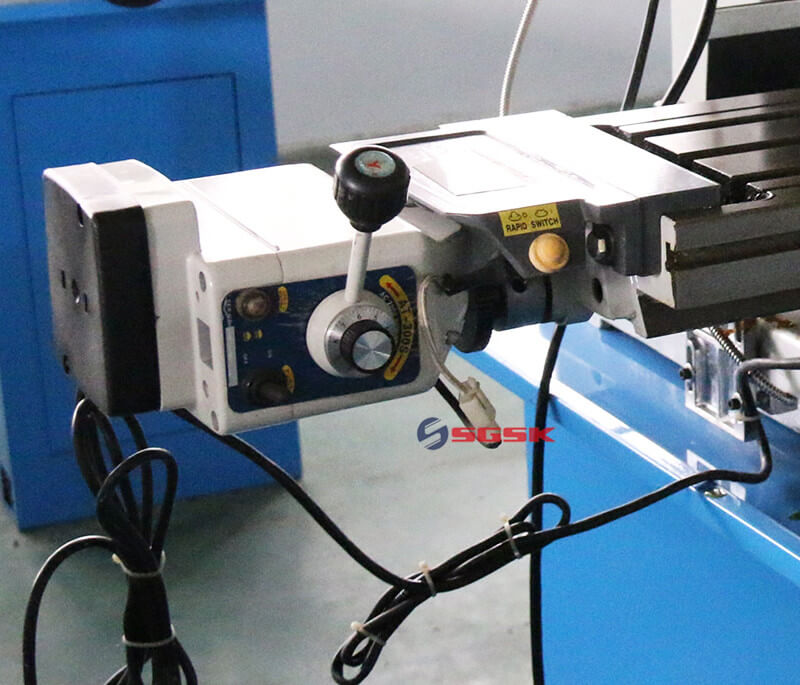

Power feed attachment,

Machine vice,

Drill chuck,

Milling cutter holder,

Reducing sleeve,

Mill chuck,

Boring rod,

Tapping electrical system ,

Coolant system
