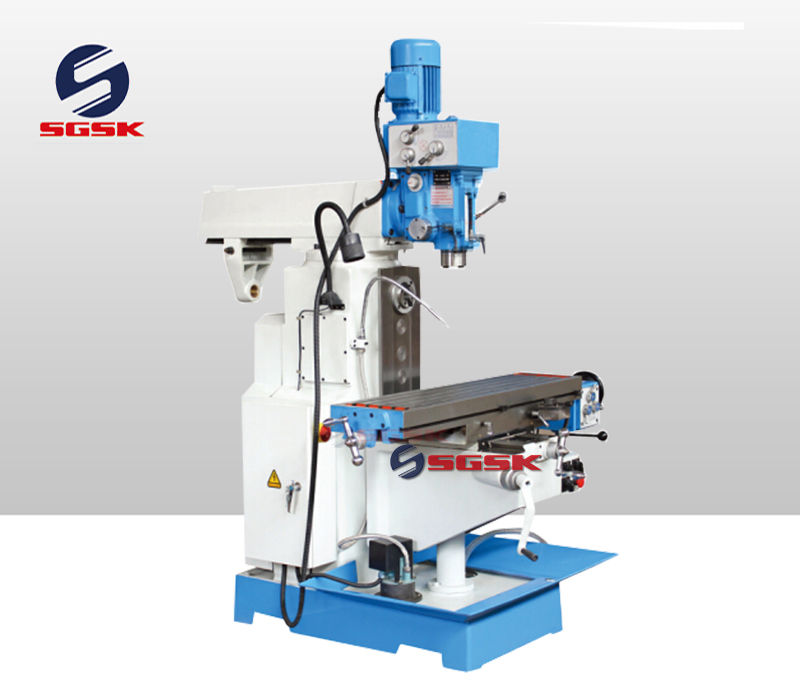

Product Main Technical Parameters
| Specifications(mm) | ZX6350Z | ZX6350ZA |
| Max. drilling dia.(mm) | 50 | 50 |
| Max. end milling width(mm) | 100 | 100 |
| Max. vertical milling dia.(mm) | 25 | 25 |
| Max.boring dia.(mm) | 120 | 120 |
| Max. tapping dia.(mm) | M16 | M16 |
| Distance from spindle nose to table surface(mm) | 80-460 | 80-460 |
| Spindle taper | ISO40 | ISO40 |
| Spindle speed range(r.p.m) | 90-2000(V) 40-1300(H) | 90-2000(V) 40-1300(H) |
| Spindle travel(mm) | 120 | 120 |
| Table size(mm) | 1200×280 Optional: 1500x280 | |
| Table travel(mm) | 680×280 Optional: 980x280 | |
| Table feed speed(mm/min) | X:16-480 | X/Y:22-555Z:300 |
| Overall dimensions (mm) | 1500×1600×2200 | 1500×1600×2200 |
| Spindle motor power (kw) | 1.5/2.2(V) 3(H) | 1.5/2.2(V) 3(H) |
| Machine weight (kg) | 1300/1400 | 1400/1500 |
