Product Model:

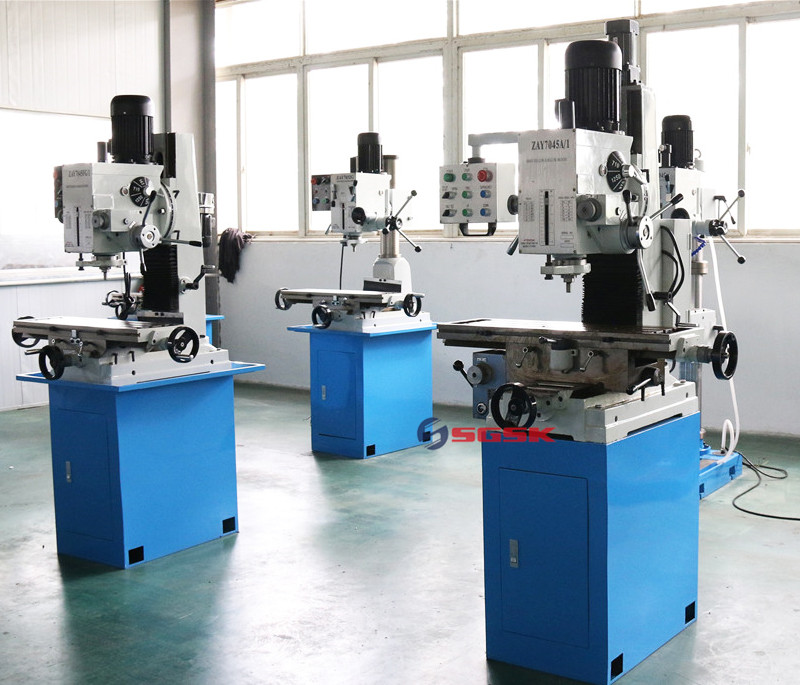

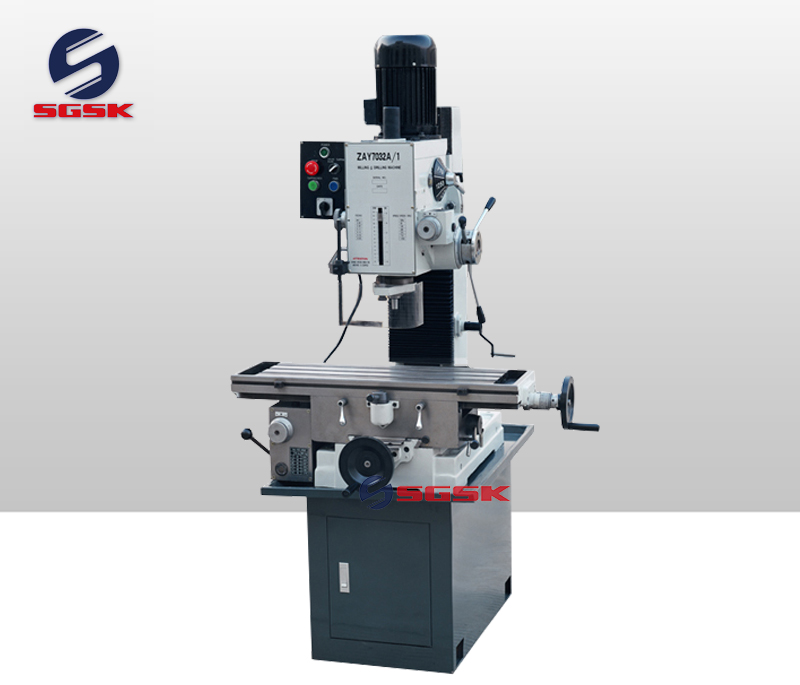

ZAY7032A/1 ZAY7040A/1 ZAY7045A/1 Drilling and Milling Machine

Product Main Technical Parameters

Drilling and Milling Machine Main Performance Characteristics:

1.Milling drilling tapping boring and reaming

2.Head swivels ±90° vertically

3.Adjustable gibs on table precision.

4.Micro feed precision

5.Strong rigidity powerful cutting and precise positioning.

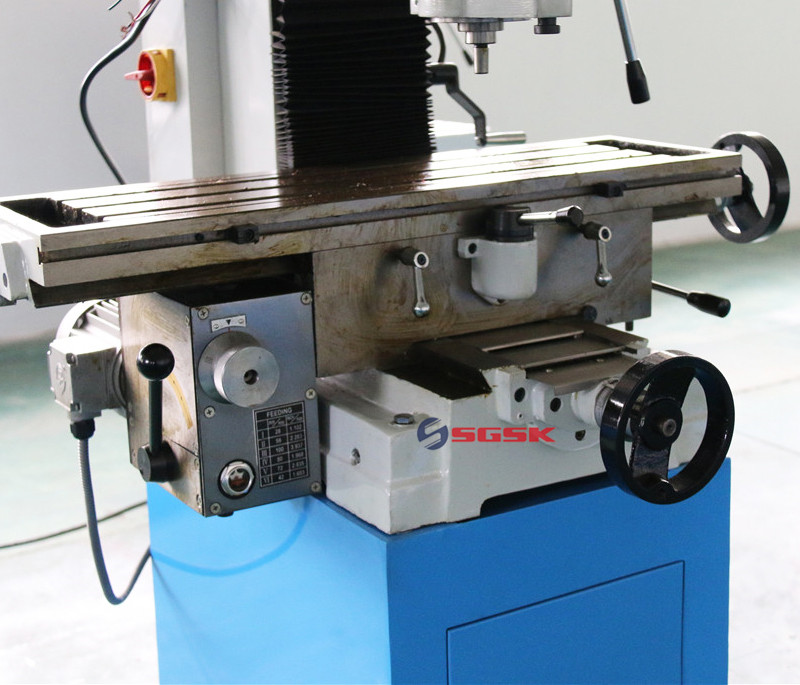

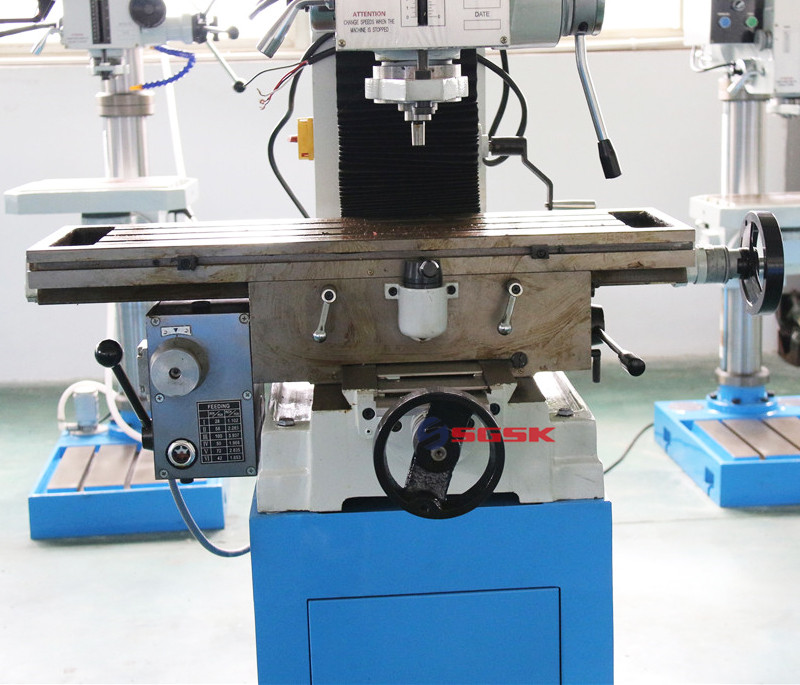

6.Worktable auto-feeding in X, Y Axis.

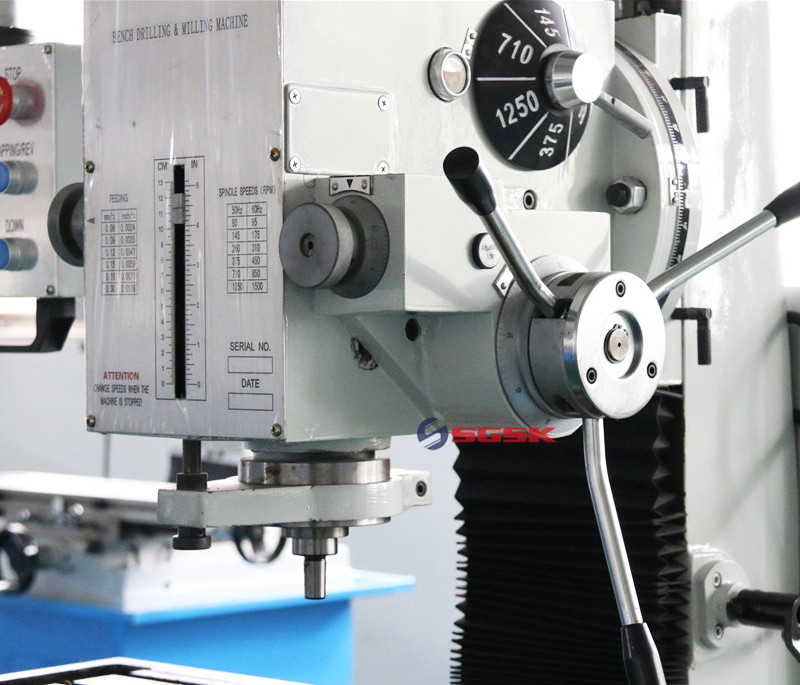

7.Spindle speed step-changed cyclically and spindle auto-feeding  And cyclic change of feeding speed


Drilling and Milling Machine Main Technical Specifications:

MODELZAY7032A/1ZAY7040A/1ZAY7045A/1
Drilling capacity32mm40mm45mm
Max.boring diameter50mm60mm70mm
Max Face mill capacity63mm80mm80mm
Max End mill capacity20mm32mm32mm
Max distance from spindle nose to table400mm400mm400mm
Min distance from spindle axis to column260mm260mm260mm
Spindle travel130mm130mm130mm
Spindle taperM.T.3 or R8M.T.4 or R8M.T.4 or R8
Step of spindle speed666
Range of spindle speed        50Hz80-1250 r.p.m80-1250 r.p.m80-1250 r.p.m
60Hz95-1500 r.p.m95-1500 r.p.m95-1500 r.p.m
Auto-feeding step of spindle666
Auto-feeding amount of spindle0.06-0.30mm/r0.06-0.30mm/r0.06-0.30mm/r
Swivel angle of headstock (perpendicular)±90°±90°±90°
Auto-feeding step of spindle(longitudinal/cross)666
Auto-feeding amout of worktable24,35,49,73,104,145mm/min24,35,49,73,104,145mm/min24,35,49,73,104,145mm/min
Table size800×240mm800×240mm800×240mm
Forward and backward travel of table165mm165mm165mm
Left and right travel of table450mm450mm450mm
Motor Power0.75KW(1HP)1.1KW(1.5HP)1.5KW(2HP)
Voltage/FrequencyAs customer'srequirementAs customer'srequirementAs customer'srequirement
Net weight/Gross weight355kg/415kg358kg/418kg360kg/420kg
Packing size930×770×1160mm930×770×1160mm930×770×1160mm
Loading amount36pcs/20'container36pcs/20'container36pcs/20'container



Standard accessoriesOptional accessories

Allen wrench,Drift ,

Spanner,

Drill chuck rod,

Screw-driver,

Draw bar and gasket

Stand,

Oil basin,

Power feed attachment,

Machine vice,

Drill chuck,

Milling cutter holder,

Reducing sleeve,

Mill chuck,

Boring rod,

Tapping electrical system ,

Coolant system
