Product Main Technical Parameters

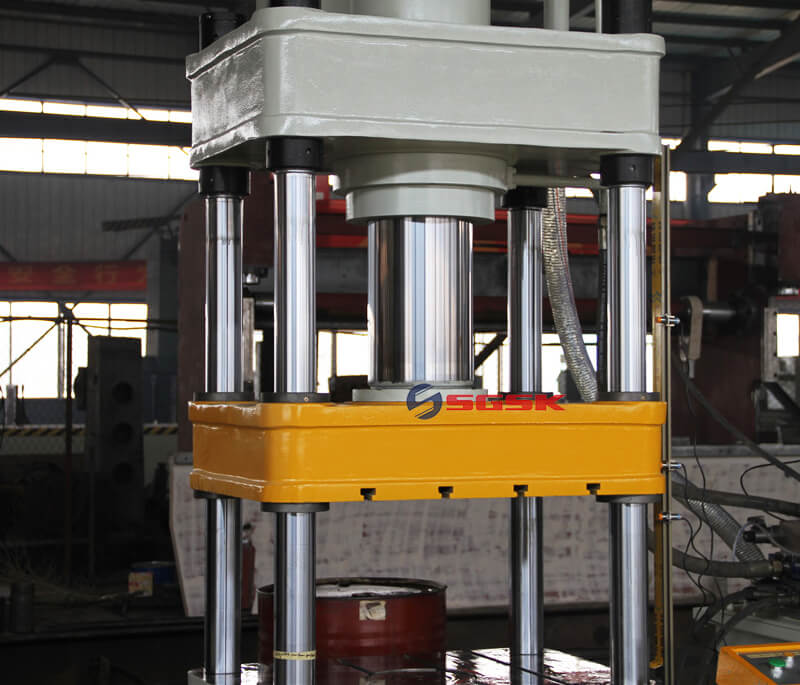

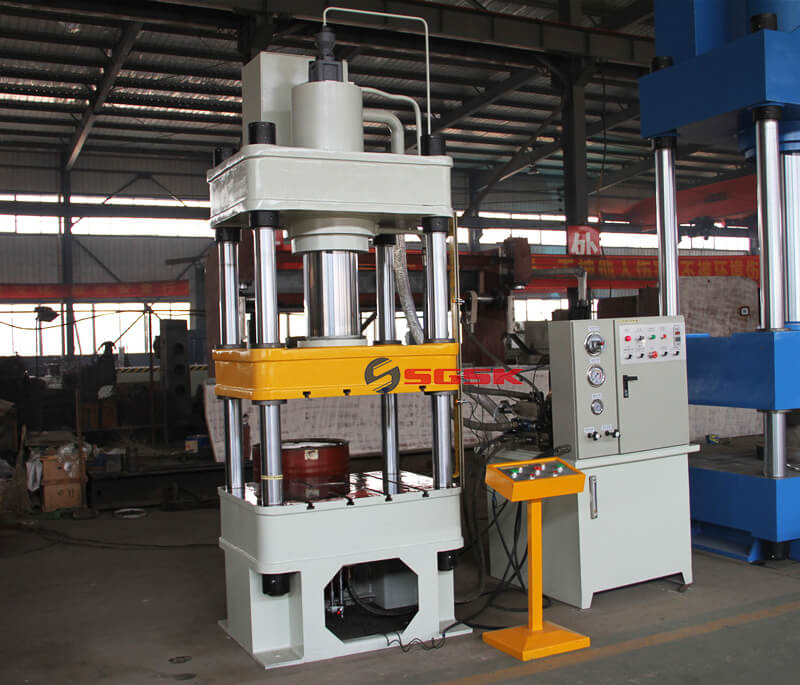

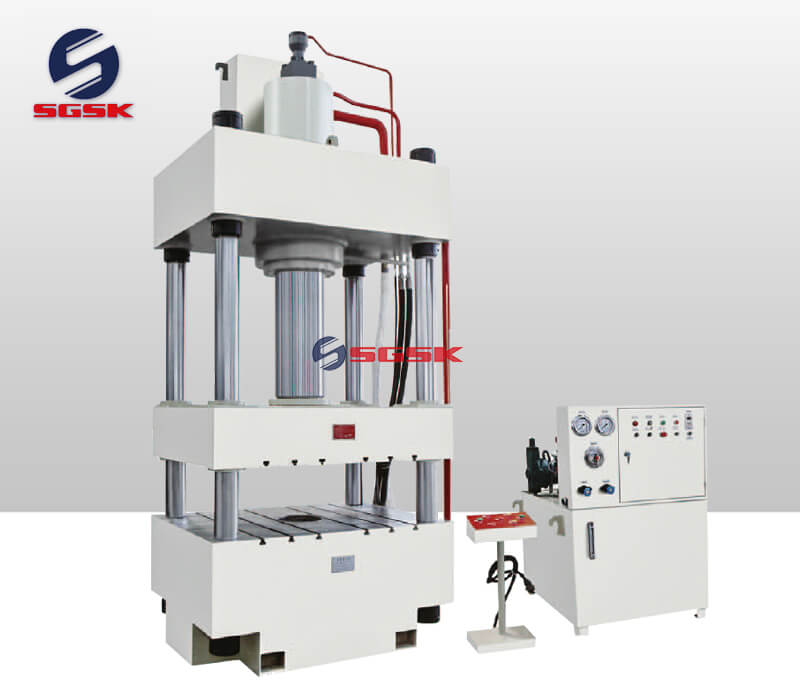

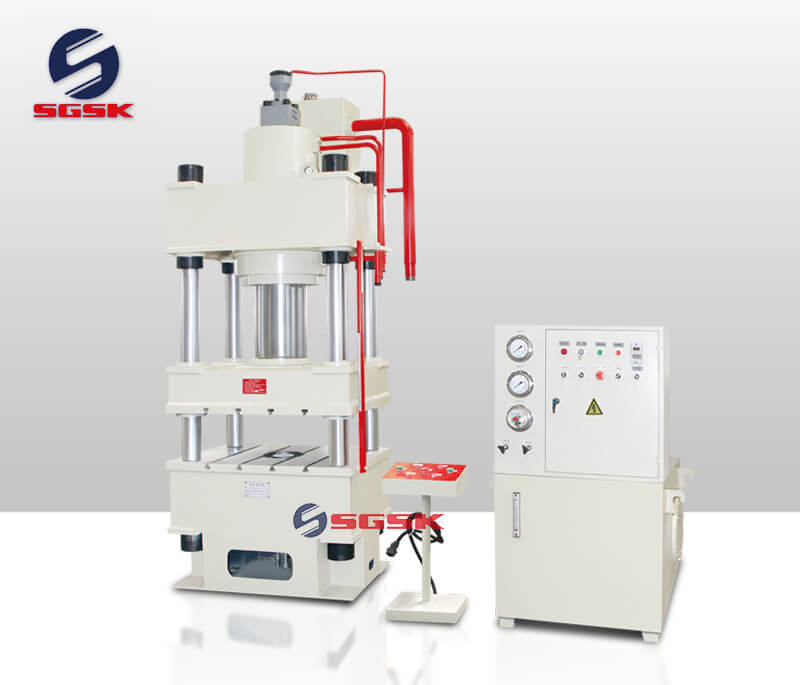

Four Column Hydraulic Press Machine Main Performance Characteristics:
1. The pressing process of the hydraulic press for plastic, such as stamping, bending, flanging, drawing etc..
2. Can be engaged in correction, compression, plastic products and powder products.
Four Column Hydraulic Press Machine Main Technical Specifications:
| Specifications | YQ32-200TA | YQ32-200TB | YQ32-200TC |
| Nominal pressure (KN) | 2000 | 2000 | 1000X2 |
| MAX.hydraulic pressure(Mpa) | 28 | 28 | 28 |
| Oil cylinder range(mm) | 500 | 600 | 600 |
| Max.opening(mm) | 900 | 1000 | 1000 |
| Table size(mm) | 800X800 | 1000X940 | 1500X1000 |
| Table height (mm) | 766 | 700 | 700 |
| Floor space(mm) | 2200X1100 | 2400X1300 | 3200X1300 |
| Machine Height | 3100 | 3250 | 3374 |
| Down speed (mm/s) | 120 | 150 | 100 |
| Pressing speed (mm/s) | 8-13.5 | 8-13.5 | 8-13.5 |
| Return speed(mm/s) | 105 | 105 | 72 |
| motor power(kw) | 7.5 | 7.5 | 7.5 |
| Return force(Kn) | 400 | 400 | 400 |
| Ejecting stroke(mm) | 200 | 200 | 200 |
