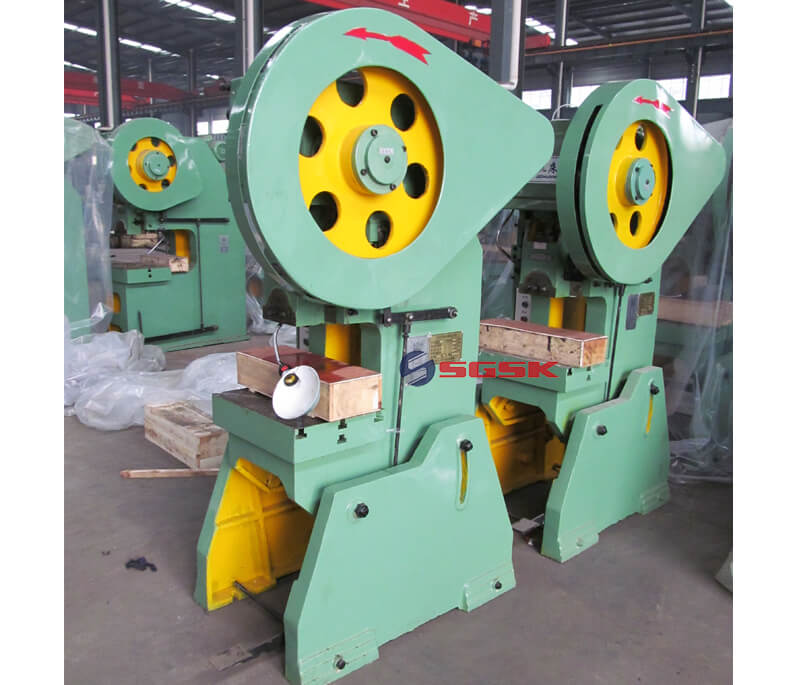

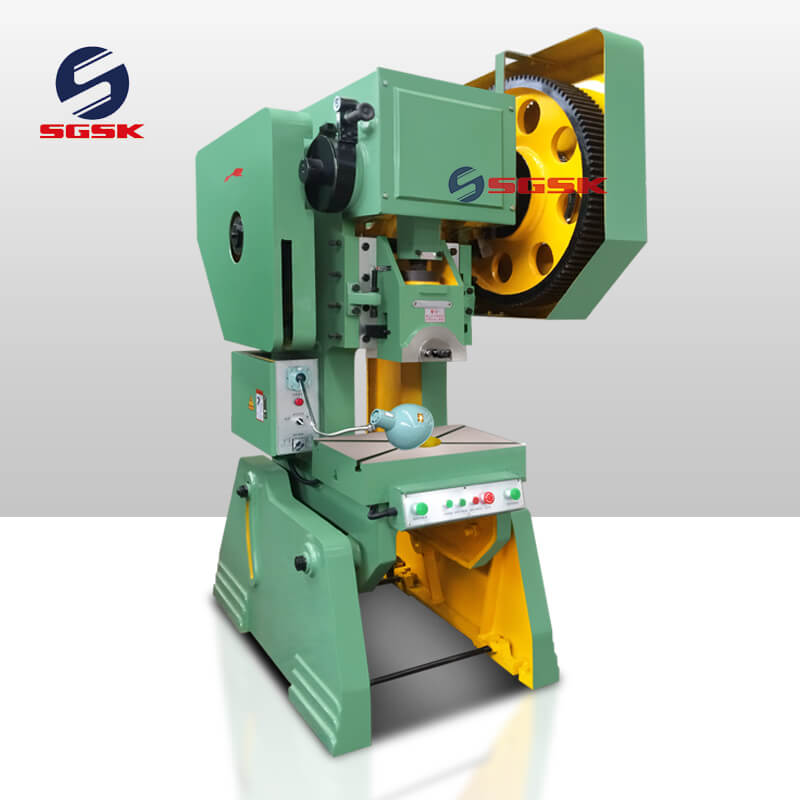

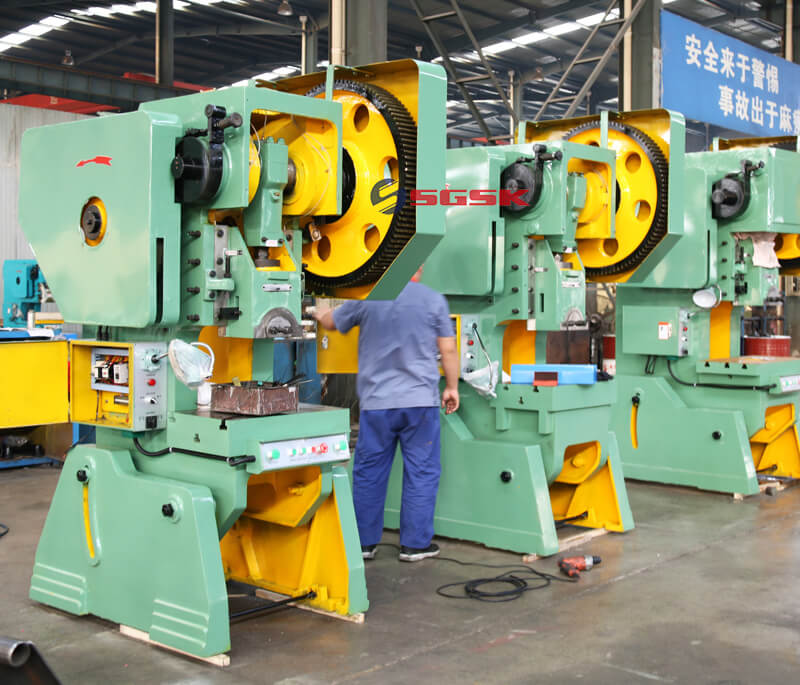

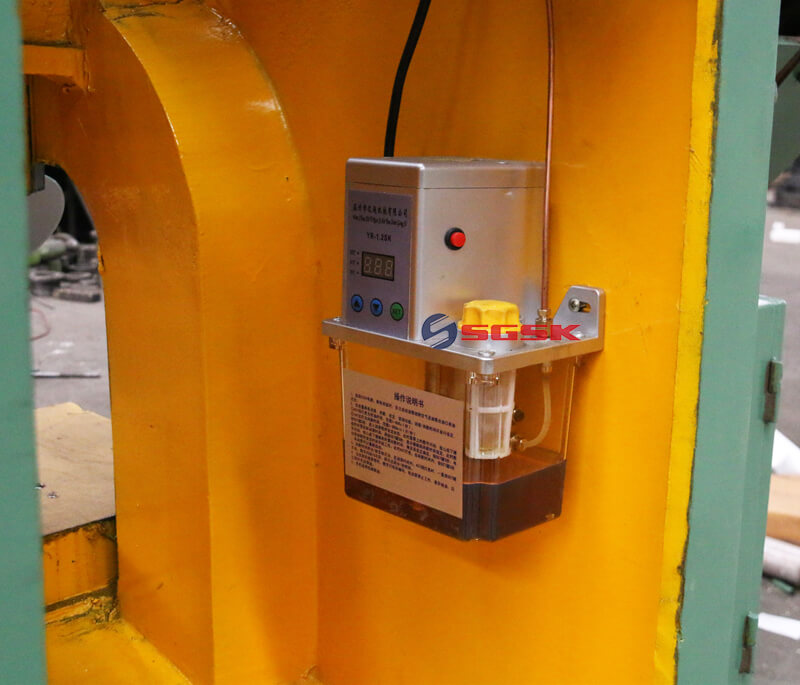

JB23-16/25/40/63/63A/80/100 Punch Press Machine

Inquire Now Next Product

Product Main Technical Parameters

Punch Press Machine Main Performance Characteristics：

1, Steel plate welding machine, good rigidity, more stable accuracy.

2, Crankshaft longitudinal, compact structure, beautiful appearance.

3, Electric adjustment of the height of the mould, digital display control height.

4, Rectangular block with a lengthened guide, bronze lining board, high guidance accuracy.

5, Combined pneumatic friction clutch brake, joint stable, action sensitivity.

6, Collapse type safety device, to ensure the safety of the whole machine.

7, Slider is high, there is a lifting type balance cylinder, to achieve the balance of the slider bar.

8, The slider can be moved with a small movement, emergency stop motion, more secure operation.

9, The circuit uses double valve control, the action is nimble, accord with the safety standard of press.

Punch Press Machine Application：

1, Suitable for blanking, punching, forming, bending, stretching and other cold stamping process to achieve.

2, Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial areas.

Punch Press Main Technical Specification:

Specification		Units	JB23-16	JB23-25	JB23-40	JB23-63	JB23-63A	JB23-80	JB23-100
Nominal pressure		KN	160	250	400	630	630	800	1000
Nominal force stroke		mm	2	2.5	4	4	4	5	5
Slider stroke		mm	50	70	80	80	80	100	100
Number of slider stroke		times/min	140	65	50	50	50	50	40
Maximum die set height		mm	170	200	230	250	300	300	300
Die set height adjustment		mm	30	30	45	50	50	60	80
Distance from slider center to frame		mm	160	200	220	250	250	260	310
Worktable dimension		mm	320x460	350x260	390x630	420x650	470x750	470x750	570x860
Thickness of the worktable panel		mm	45	50	70	70	80	80	90
Size of the handle hole (diameter x depth)		mm	φ40x60	φ40x60	φ50x70	φ50x70	φ50x70	φ60x80	φ60x80
Vertical columns distance		mm	240	240	330	320	390	300	420
Main motor	Model		Y90L-4	Y100L-4	Y112M-4	Y132S-4	Y132S-4	Y132S-4	Y132M-4
Main motor	Power	KW	1.5	3	4	5.5	5.5	5.5	7
Maximum tilting angle of body		°	25	25	25	25	25	20	20
Overall dimension(LxWxH)		mm	1130X830X1890	1120X860X2200	1600X1100X2250	1740X1100X2560	1740X1180X2560	1765X1265X2560	1940X1490X2850
Weight		Kg	1090	2100	2960	3800	4300	5015	6120
