Product Main Technical Parameters

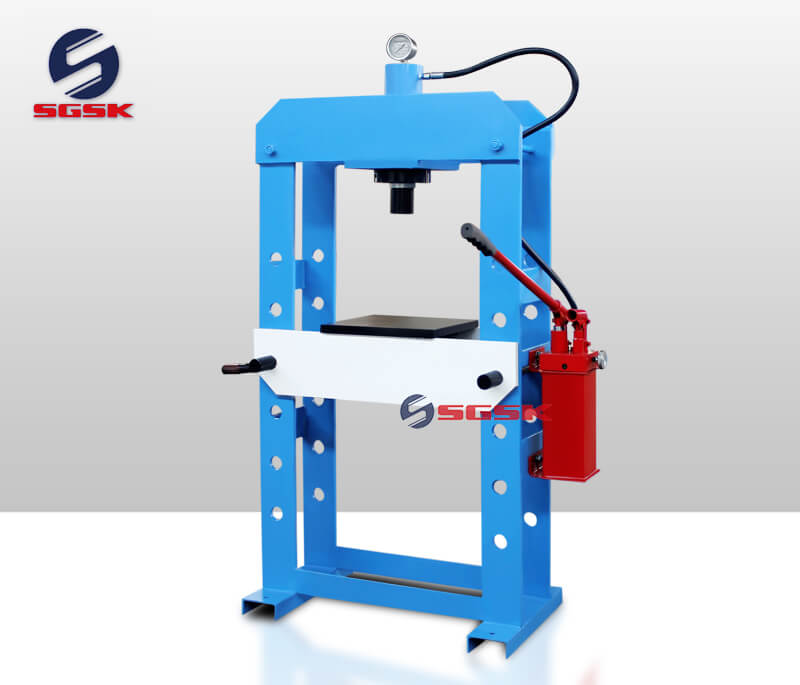

Manual Hydraulic Press Machine Main Performance Characteristics：
The HP-S series mandrel presses have the advantage of small volume ,simple structure, and little cost.
Manual Hydraulic Press Machine Application：
The machine is suitable for operating in the open airor the other special situation.
Manual Hydraulic Press Machine Main Technical Parameters:
| Specification | Units | HP-10S | HP-20S | HP-30S |
| Capacity | KN | 100 | 200 | 300 |
| Pressure | MPA | 20 | 50 | 50 |
| Piston Travel / Table travel | mm | 180+450 | 200+450 | 200+450 |
| Tale size | mm | 200x300 | 200x300 | 300x400 |
| Dimension | mm | 500x350x1300 | 500x350x1300 | 550x400x1500 |
| Weight | Kg | 220 | 260 | 320 |
