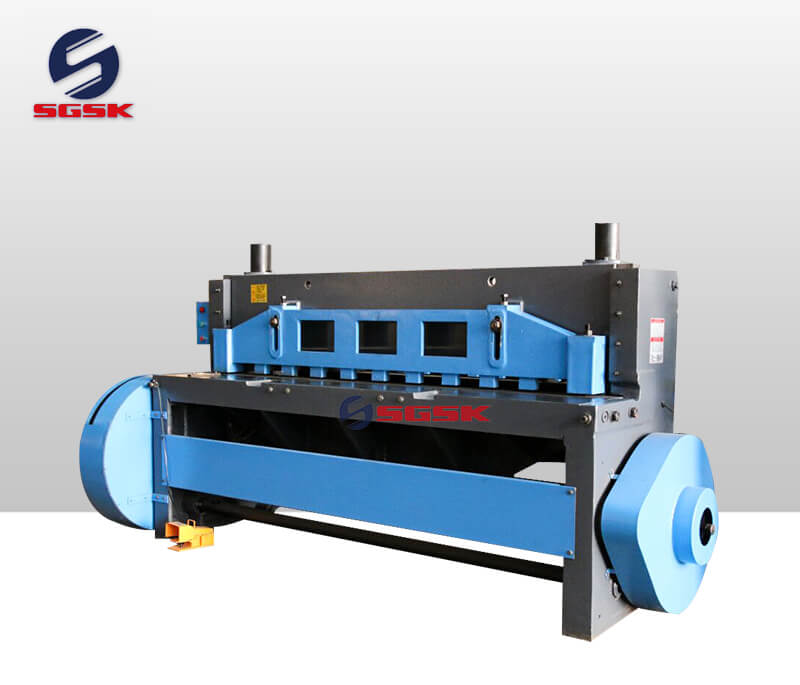

Q11 Electric Sheet Shearing Machine

Inquire Now Next Product

Product Main Technical Parameters

Electric Sheet Shearing Machine Specifications:

Long-life of high quality blade
Back gauge is available to give fine adjustment
Simple construction with good appearance

Electric Sheet Shearing Machine Features:

1. Structured finished products,

2. Low center of gravity,

3. Sound vibration-proof performance

4. Stable property.

5. Long-life of high quality blade

6. Back gauge is available to give fine adjustment

7. Simple construction with good appearance

8. Easy to operate with lower energy consumption

9. Widely used for medium and thick steel

10. Our electric shearing machine is used to cast components and has the advantages of producing firmly structured finished products, low center of gravity, sound vibration-proof performance, uniform transmission and stable property.

11. Its capacity range is from 1300 to 2500 mm length and the maximum thickness can reach 10 mm. Our electric shearing machine is used for shearing large and medium thickness plates.

Electric Sheet Shearing Machine Main Technical Specifications:

Specifications	Units	Q11-6X2000	Q11-6X2500	Q11-8X2000	Q11-8X2500	Q11-10X1500
Max.shearing thickness	mm	6	6	8	8	10
Max.shearing width	mm	2000	2500	2000	2500	1500
Shearing angle	°	2°	1°30	2°	1°42	3°
Travel times	Mm-1	20	20	20	14	20
Main motor power	kw	7.5	7.5	11	11	15
Back gauge stroke	mm	500	500	500	500	500
Over dimensions	mm	3100x1650x1610	3800X1770X1550	3350X1750X1820	3880X2500X1780	2900x1750x1820
Machine weight	kg	4100/4300	5200/5300	4500/4800	6800/7150	4000/4300
