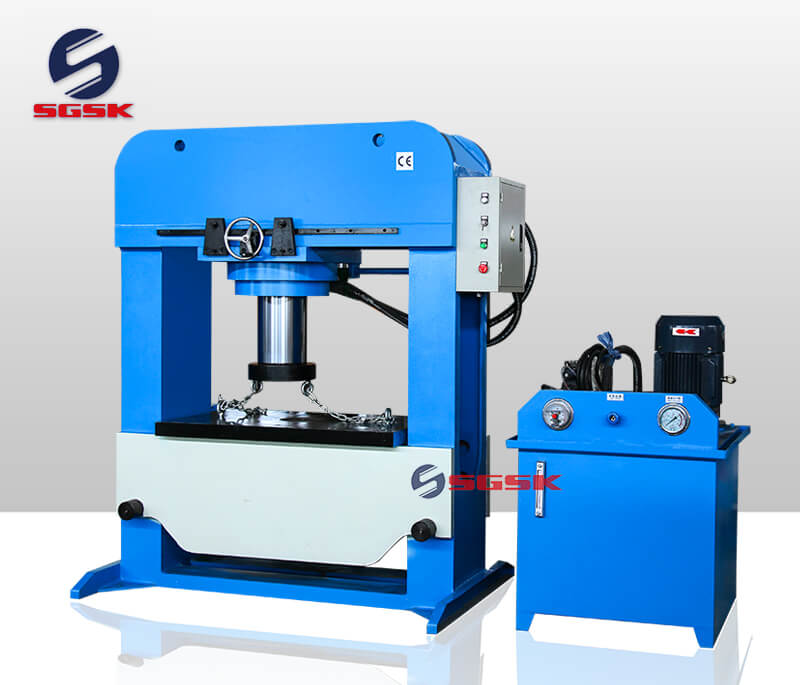

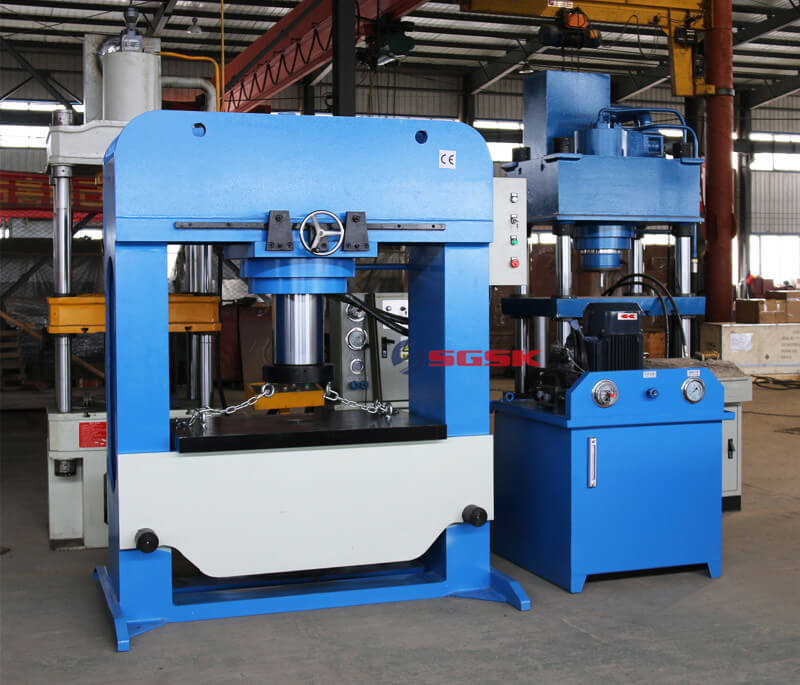

HP-300M HP-400M Movable Cylinder Hydraulic Press Machine

Inquire Now Next Product

Product Main Technical Parameters

Movable Cylinder Hydraulic Press Machine Main Performance Characteristics：

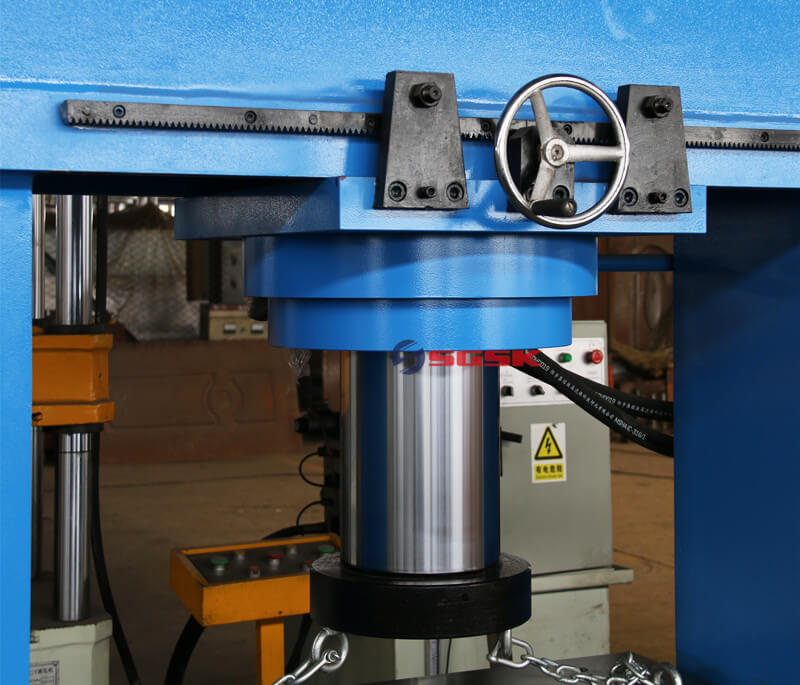

HP-M series Movable cylinder presses is improved based on traditional two-column hydraulic press machine. The hydraulic cylinder could move freely on frame, so enlarged the working space,

It takes the advantages of convenient and quick operation.

Movable Cylinder Hydraulic Press Machine Application：

The machine is suitable for operating in the open air or the other special situation.

Movable Cylinder Hydraulic Press Machine main technical parameters:

Specification	unit	HP-300M	HP-400M
Capacity	KN	3000	4000
Pressure	MPA	31.5	31.5
Travel	mm	300+405	300+405
Tale size	mm	700x1200	800x1200
Dimension	mm	2100x950x2700	2300x1000x2900
		1100x1200x1350	1100x1200x1350
Weight	Kg	4200	5500
