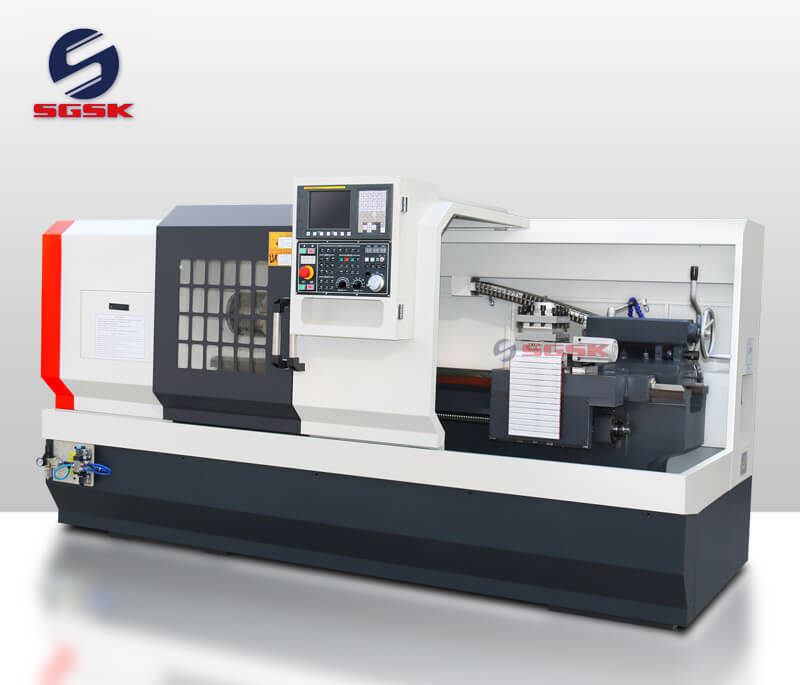

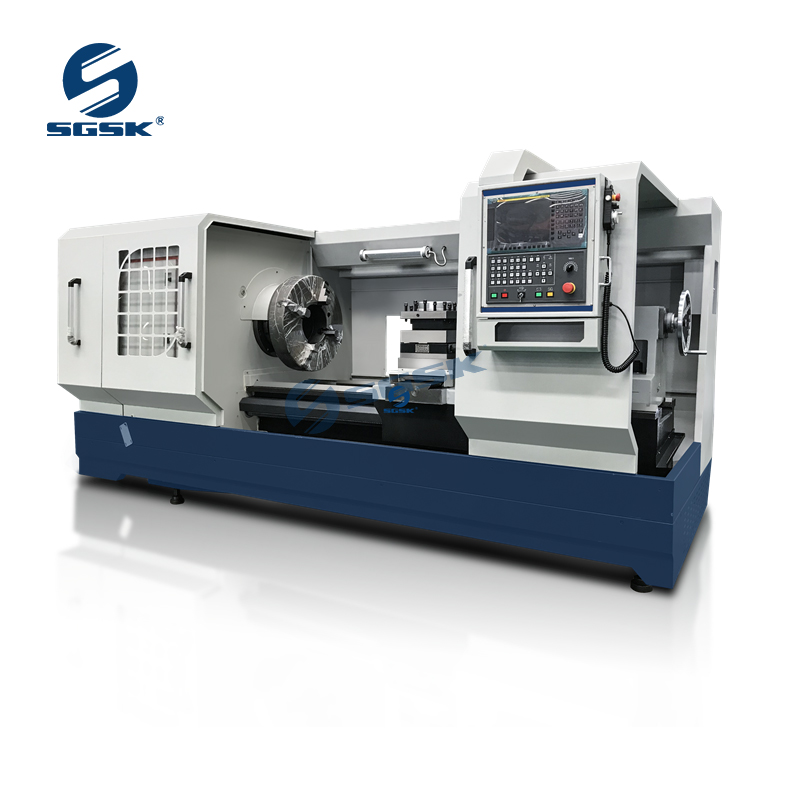

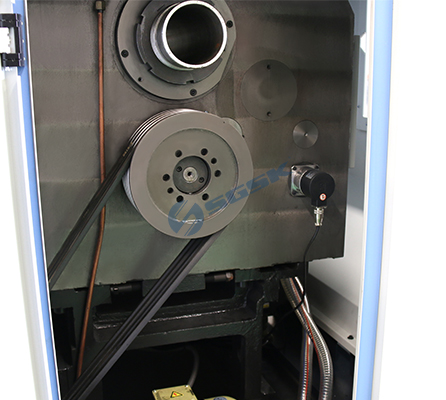

QK1322 CNC Pipe Thread Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

CNC Pipe Thread Lathe Machine Introduction:

This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.

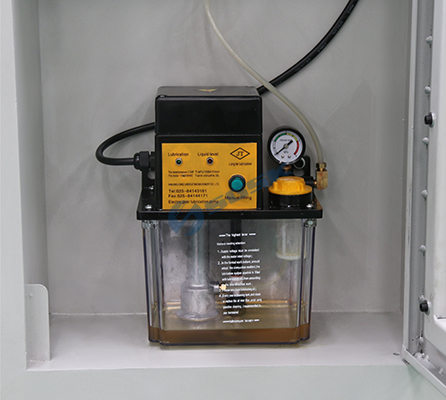

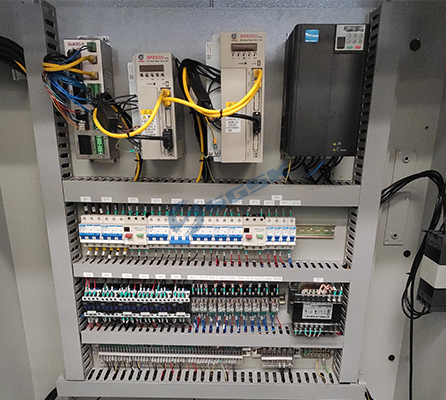

CNC Pipe Thread Lathe Machine Features:

Big spindle bore and double chuck to ensure process big diameter pipe

One-piece bed adopts high strength iron to ensure rigidity and precision

Ultrasonic frequency quenched guide-ways ensure good wear-resistance

Carriage and guide way contact surface use Turcite B to maintain accuracy

CNC Pipe Thread Lathe Machine Specification:

SPECIFICATION	Units	QK1322	QK1322
		Manual	HYD.
Swing over bed	mm	630/800
Swing over cross slide	mm	340/520
Distance between centers	mm	1000/1500/3000
Pipe threading range	mm	50-220
Guideway width	mm	550
Max. load capacity	T	3
Spindle bore	mm	225
Spindle speed steps	-	VF. 4 steps	HYD. 4 steps
Spindle speed range	rpm	20-550
Chuck	mm	φ500 3-jaw manual
Turret/tool post	-	CNC turret 4 position
Tool shank size	mm	32 x 32
X axis travel	mm	320/420
Z axis travel	mm	850/1350/2850
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000

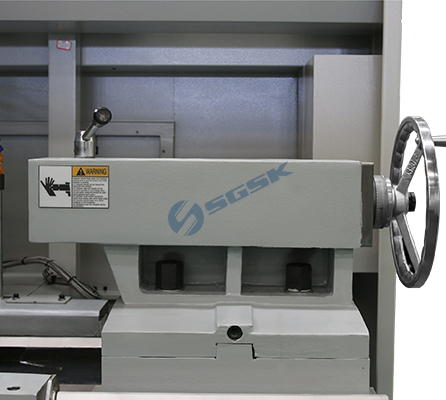

Tailstock quill diameter	mm	φ100
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	250
Main spindle motor	kW	11
Coolant pump motor	kW	0.125
Weight for 1000	kg	4700
Weight for 1500	kg	5200
Weight for 3000	kg	6200
Dimension for 1000	mm	5000x1880x1850
Dimension for 1500	mm	6500x1880x1850
