Product Model：
This machine is widely used in processing and manufacture the electric appliance ,instrumentation industry ,automobile ,motorcycle ,fastener bearings ,photographic and film machinery ,hardware tools ,watches ,glasses ,stationery ,motors ,valves and gas pipe and other high precise and complex components .
It is the ideal high efficient equipment in the hardware machining industry .
Features
CNC lathes, with their high precision, high efficiency, high automation, and powerful ability to process complex parts, have become the cornerstone of modern manufacturing.
They cover nearly every area of precision machining, from basic screws and nuts to cutting-edge aerospace components, and are a key force driving the development of industrial automation and intelligent manufacturing.
Application
CNC lathes are widely used in manufacturing industries requiring high-precision rotating parts, primarily in the following areas:
1. Aerospace: Processing high-precision, high-strength, complex alloy parts such as engine blades, rocket nozzles, and landing gear components.
2. Automotive: Manufacturing key components such as engine shafts, pistons, brake discs, and steering gear parts.
3. Mold Manufacturing: Processing cores and cavities for injection and die-casting molds.
4. Medical Devices: Manufacturing parts requiring high biocompatibility and precision, such as artificial joints, surgical instruments, and dental implants.
5. Electronics: Processing cavities, connectors, and precision shafts for communications equipment.
6. General Machinery and Military: Manufacturing standard and custom parts such as drive shafts, lead screws, nuts, valves, and sleeves.
Product Main Technical Parameters
CNC Lathe Machine Standard configuration:

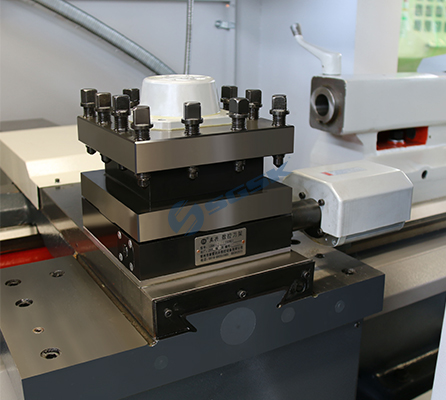

Gang type Tool post
3-jaw manual chuck

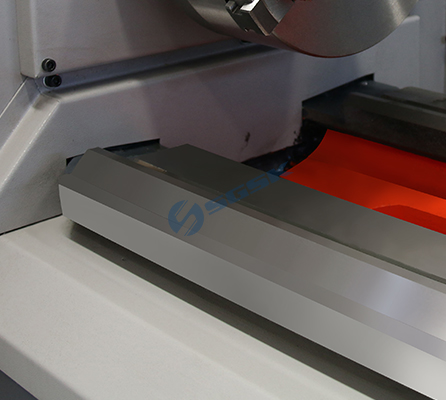

Double mountain guideway
CNC Lathe Machine Main Technical Specifications:
| SPECIFICATIONS | Units | CK6120 | CK6125 |
| Swing over bed | mm | 190 | 230 |
| Swing over cross slide | mm | 80 | 125 |
| Distance between centers | mm | 200 | 200 |
| Spindle bore | mm | 37 | 50 |
| Spindle bore taper | - | MT5 | MT5 |
| Spindle nose type | - | A2-4 | A2-4 |
| Spindle speed steps | - | Stepless | Stepless |
| Spindle speed range | rpm | 150-2500 | 150-2500 |
| Turret/tool post | - | Gang type | Gang type |
| Tool size | mm | 16 x 16 | 16 x 16 |
| X axis travel | mm | 300 | 300 |
| Z axis travel | mm | 320 | 320 |
| X axis rapid traverse | mm/min | 8000 | 8000 |
| Z axis rapid traverse | mm/min | 10000 | 10000 |
| Tailstock quill diameter | mm | Φ45 | Φ45 |
| Tailstock quill taper | - | MT4 | MT4 |
| Tailstock quill travel | mm | 50 | 50 |
| Main spindle motor | kw | 3 | 3 |
| Coolant pump motor | kw | 0.09 | 0.09 |
| Machine weight | kg | 800 | 850 |
| Overall dimension | mm | 1500x1000x1600 | 1500x1050x1750 |
