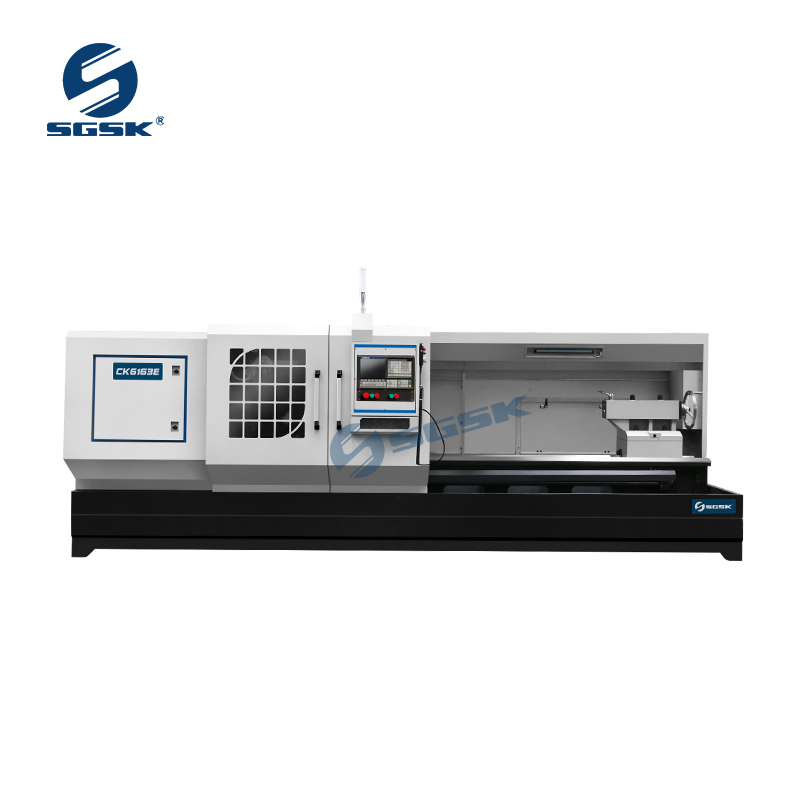

CK6165E Heavy Duty CNC Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Heavy Duty CNC Lathe Machine Application:

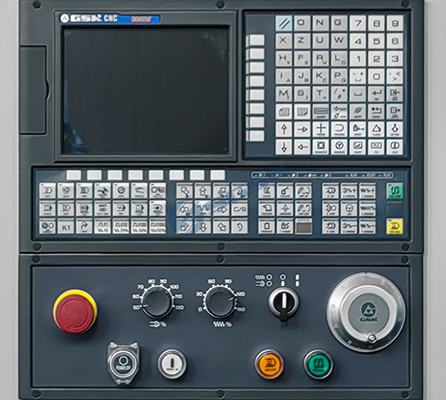

The machine through the numerical control system,this machine could process different inner bore,ex-circle,circular conical surface and screw thread,especially suitable for the small and middle-sized shaft and plate work piece from rough processing in batch.It has advantages like higher automaticity,simpler programming and higher accuracy.

Heavy Duty CNC Lathe Machine Features:

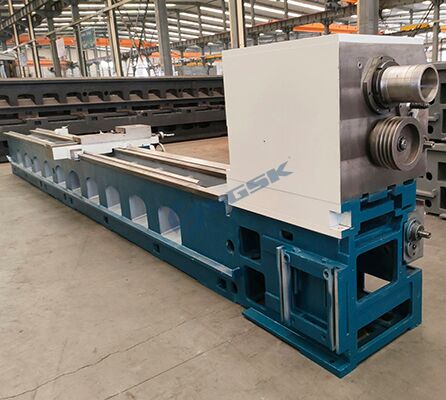

Higher stability one-piece machine bed

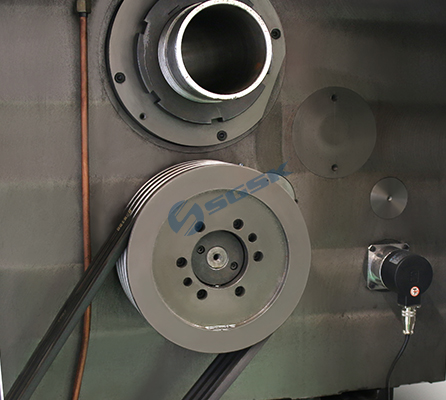

3-gear spindle speed,step-less in gear

Higher rigidity pedestal

Wider layer board

Integrated automatic lubrication system

Heavy Duty CNC Lathe Machine Main Technical Specifications:

Specifications	Unit	CK6165E
Max.swing over bed	mm	Φ650
Max.swing over cross slide	mm	Φ375
Max.processing length	mm	1000/1500/2000/3000
X/Z axis travel	mm	X:400 Z:1200/1650/2200/3100
Spindle transmission type		3 steps variable speed
Spindle speed steep		stepless
Spindle speed	rpm	10-85，40-350，110-850
Spindle nose		C11
Spindle bore	mm	Φ105
Spindle taper		Metric 120-1：20
Spindle motor	kW	11

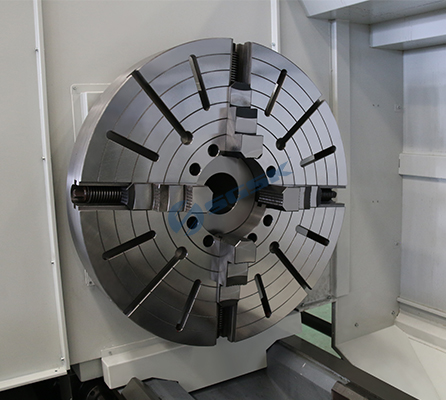

Chuck size	mm	Φ320
Ball screw dia.and pitch		2505/5010
X/Z axis feed motor torque	N.m	X:10 Z:15（30）
X/Z axis rapid traverse	m/min	4/5
X/Z axis repeatability	mm	±0.005
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ra1.6
Tailstock sleeve dia.	mm	Φ100
Tailstock sleeve travel	mm	250
Tailstock sleeve taper	#	MT6
Tool post type		4 station electric tool post (optional:6 station turret)
Cutting tool shape size	mm	32x32
Guide form		Flat bed cnc lathe
Total power capacity	KVA	15
Machine dimension(LxWxH)	mm	3200/3700/4200/5200x1800x1900
Net weight	kg	3900/4500/5400
