Product Model:

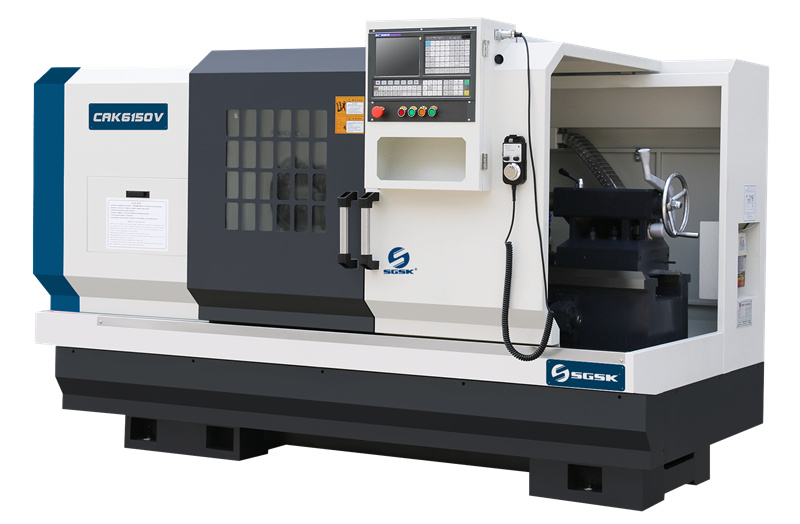

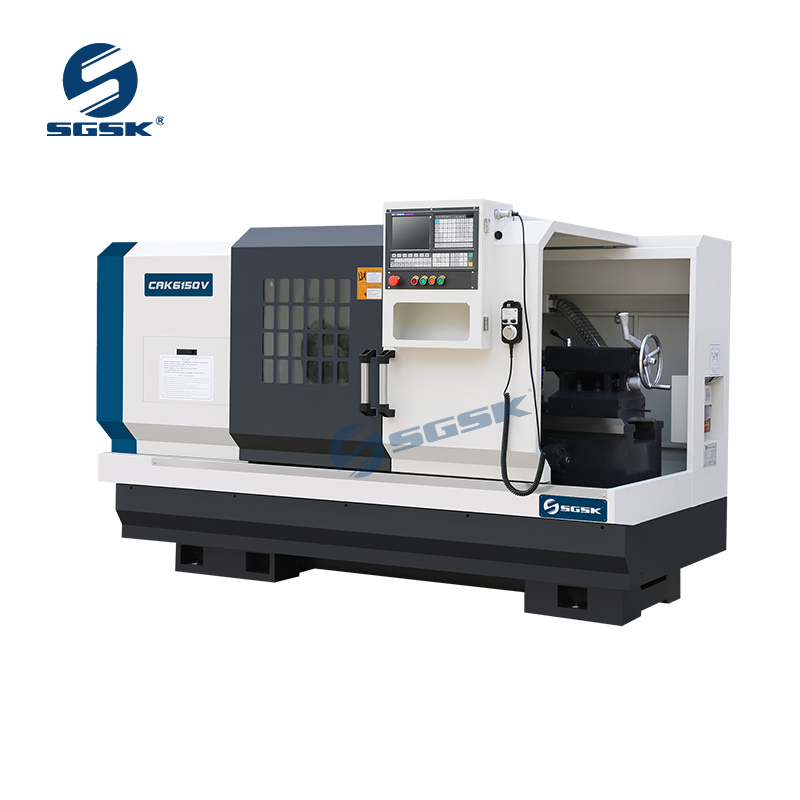

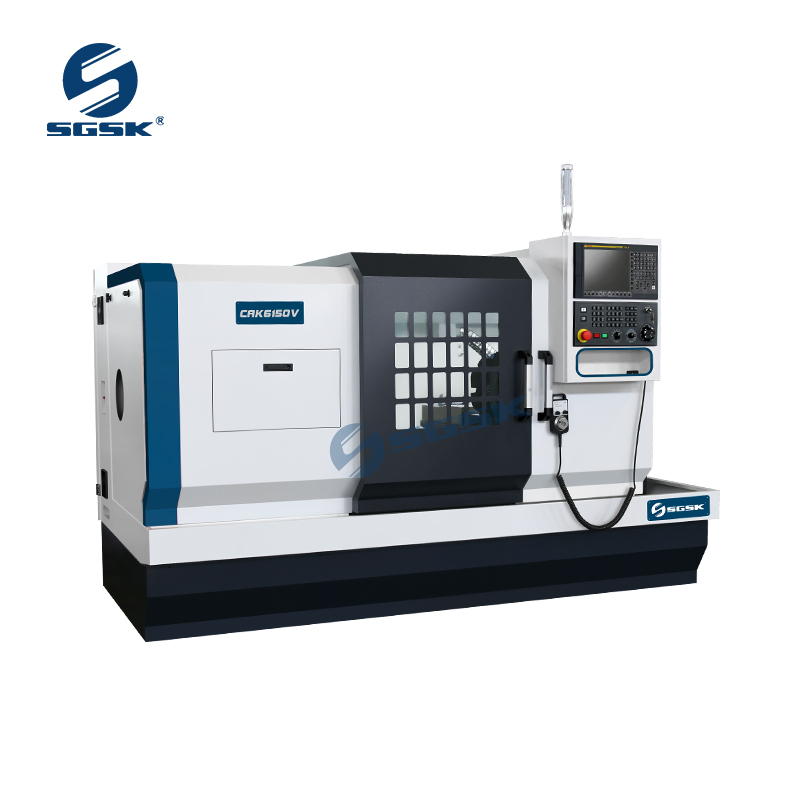

CAK6150V CNC Lathe Machine

Product Main Technical Parameters

CNC Lathe Machine Application:

Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,

inch and other standards.


CNC Lathe Machine Features:

1. A high strength ,widening the carriage ,suitable for heavy cutting

2.Four station electric tool post

3. Frequency conversion stepless speed regulation

4. Standard configuration: manual chuck

5. Optional configuration: hydraulic chuck



CNC Lathe Machine Main Technical Specifications:

SPECIFICATIONSUnitsCAK6150V
Swing over bedmm500
Swing over cross slidemm280
Distance between centersmm1000/1500/2000
Spindle boremm82 (Optional 130)
Spindle bore taper-Metric φ90/1:20
Spindle nose type-A2-8(A2-11)
Spindle speed steps-Stepless
Spindle speed rangerpm1800 (Optional 800)
Turret/tool post-Electric 4 position
Tool sizemm25 x 25
X axis travelmm300
Z axis travelmm1000/1500/2000
X axis rapid traversemm/min6000
Z axis rapid traversemm/min10000

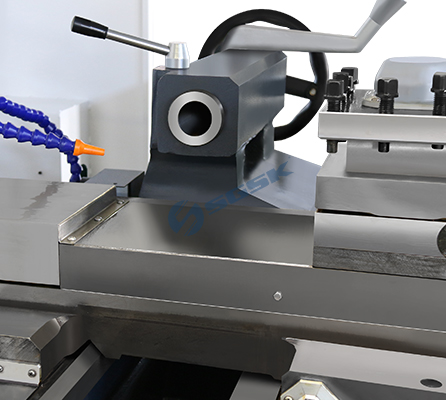

Tailstock quill diametermm75
Tailstock quill taper-MT5
Tailstock quill travelmm200
Main spindle motorkw7.5
Coolant pump motorkw0.125
Weight for 1000kg2900
Weight for 1500kg3300
Weight for 2000kg3700
Dimension for 1000mm2950x1700x1800
Dimension for 1500mm3650x1700x1800
Dimension for 2000mm4250x1700x1800
Standard configurationOptional Configuration

One piece casting

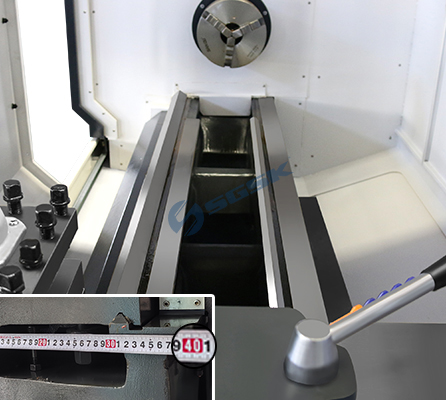

Guideway width 400mm

Independent spindle

3-jaw manual chuck

Electric 4 position

Hydraulic chuck

6/8 Electric turret

Hydraulic tailstock

Double chuck as optional (130mm)
