Product Main Technical Parameters

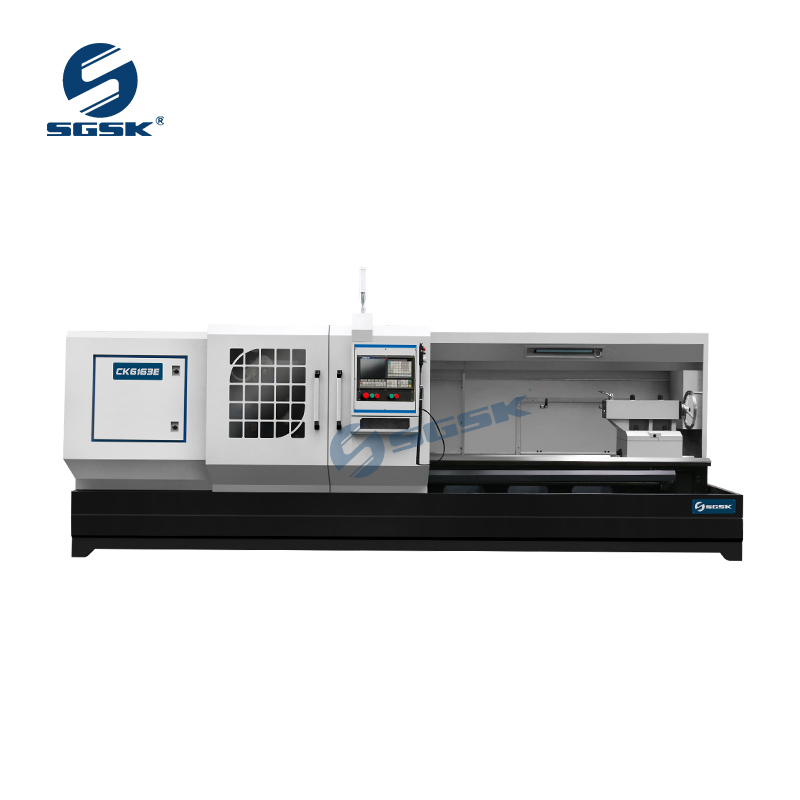

CNC Lathe Machine Specification:
| SPECIFICATIONS | Units | CK6163E | CK6163E | CK6180E | CK6180E | ||
| Manual | HYD. | Manual | HYD. | ||||
| Swing over bed | mm | 630 | 800 | ||||
| Swing over cross slide | mm | 350 | 520 | ||||
| Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000 | 1000/1500/2000/3000/4000/5000/6000 | ||||

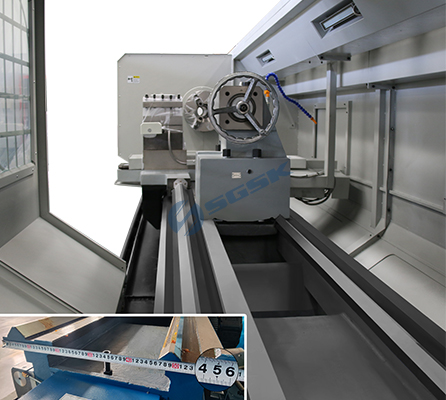

| Guideway width | mm | 550 | 550 | ||||
| Max. load capacity | T | 3 | 3 | ||||
| Spindle bore | mm | 104 | 104 | ||||
| Spindle bore taper | - | Metric φ120/MT5 | Metric φ120/MT5 | ||||
| Spindle nose type | - | C11 | C11 | ||||
| Spindle speed steps | - | VF. 3 steps | HYD. 4 steps | VF. 3 steps | HYD. 4 steps | ||
| Spindle speed range | rpm | 10-1000 | 17-1000 | 10-1000 | 17-1000 | ||
| Chuck | mm | φ315 3-jaw manual | φ315 3-jaw manual | ||||

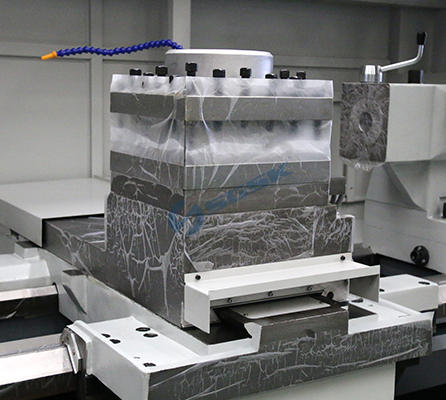

| Turret/tool post | - | Electric 4 position | Electric 4 position | ||||
| Tool size | mm | 32 x 32 | 32×32 | ||||
| X axis travel | mm | 320 | 420 | ||||
| Z axis travel | mm | 850/1350/1850/2850/3850/4850/5850 | 850/1350/1850/2850/3850/4850/5850 | ||||
| X axis rapid traverse | mm/min | 4000 | 4000 | ||||
| Z axis rapid traverse | mm/min | 6000 | 6000 | ||||

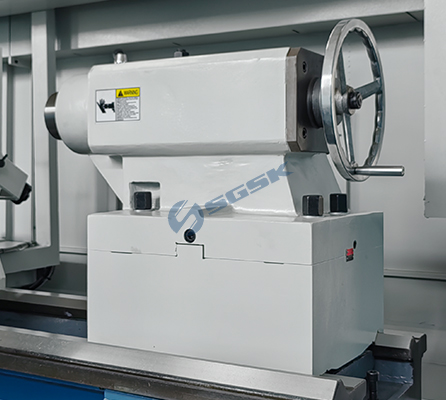

| Tailstock quill diameter | mm | φ100 | φ100 | ||||
| Tailstock quill taper | - | MT5 | MT5 | ||||
| Tailstock quill travel | mm | 250 | 250 | ||||
| Main spindle motor | kw | 11 | 11 | ||||
| Coolant pump motor | kw | 0.125 | 0.125 | ||||
| Weight for 1000 | kg | 3700 | 3900 | ||||
| Weight for 1500 | kg | 4100 | 4300 | ||||
| Weight for 2000 | kg | 4500 | 4700 | ||||
| Weight for 3000 | kg | 5300 | 5500 | ||||
| Weight for 4000 | kg | 6100 | 6300 | ||||
| Weight for 5000 | kg | 6900 | 7100 | ||||
| Weight for 6000 | kg | 7700 | 7900 | ||||
| Dimension for 1000 | mm | 3300x1750x1850 | 3300x1850 x1900 | ||||
| Dimension for 1500 | mm | 3800x1750x1850 | 3800x1850 x1900 | ||||
| Dimension for 2000 | mm | 4300x1750x1850 | 4300x1850 x1900 | ||||
| Dimension for 3000 | mm | 5300x1750x1850 | 5300x1850 x1900 | ||||
| Dimension for 4000 | mm | 6300x1750x1850 | 6300x1850 x1900 | ||||
| Dimension for 5000 | mm | 7300x1750x1850 | 7300x1850 x1900 | ||||
| Dimension for 6000 | mm | 8300x1750x1850 | 8300x1850 x1900 | ||||
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |

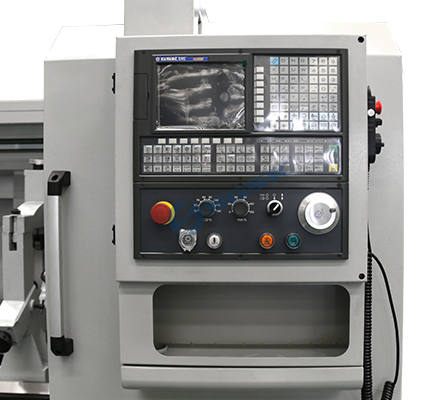

Eletric 4 position 3-jaw manual, manual tailstock, automatic lubrication, coolant pump, | Fanuc, Siemens or other brand CNC controller, 6/8 Electric turret, Hydraulic chuck hydraulic tailstock, Servo main motor |
