Product Main Technical Parameters

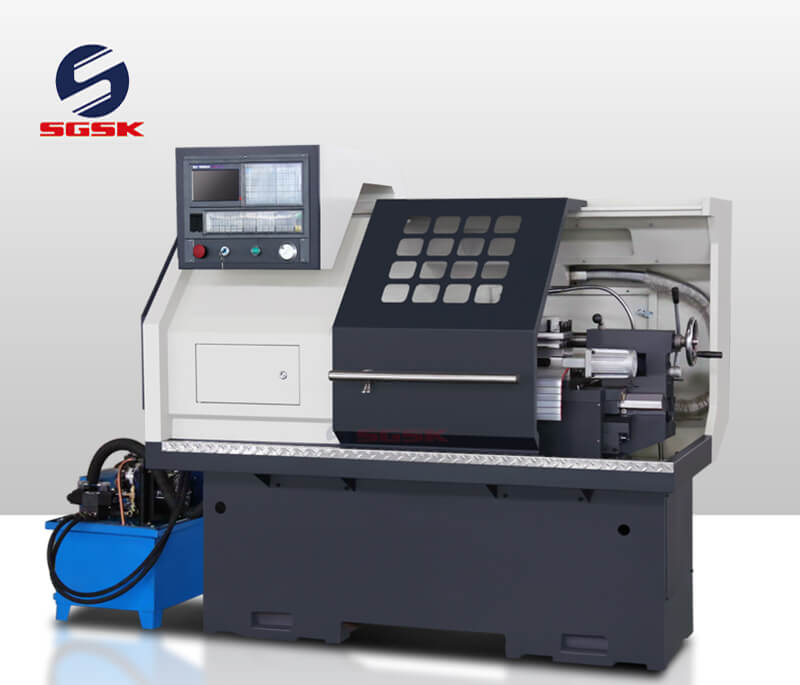

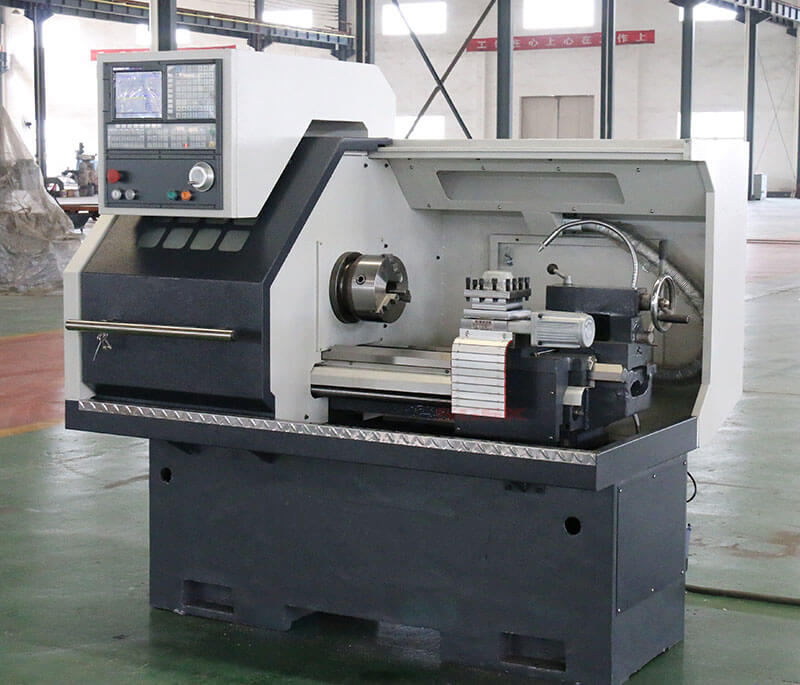

CNC Lathe Machine Standard Configuration:
CNC system:GSK980TB3
Collet (6 inch manual chuck as optional ) Tailstock:Manual tailstock

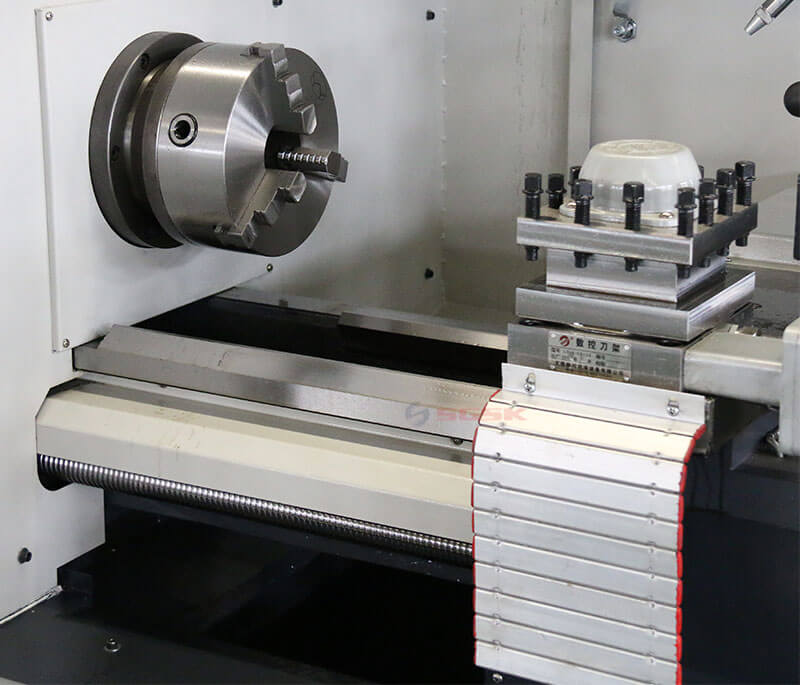

X,Z direction ball-type screw 4

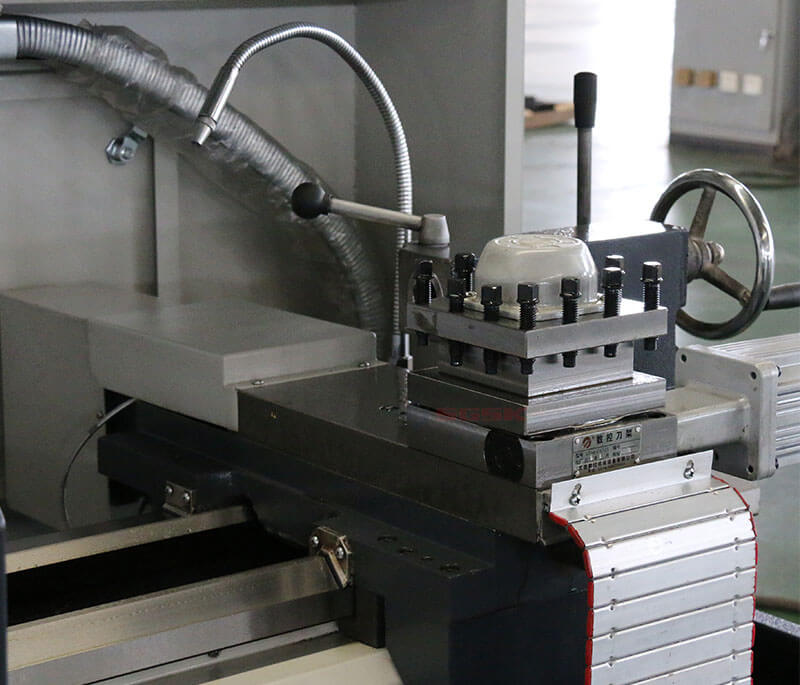

pcs Electric tool post
high-quality resin Casting .
Domestic electric lubricating oil pump, installation of lubricating oil circuit is completed.
CNC Lathe Machine Specification:
| SPECIFICATIONS | Units | CK30i |
| Swing over bed | mm | 300 |
| Swing over cross slide | mm | 100 |
| Bed width | mm | 230 |
| Max .Processing workpiece length | mm | 210(chuck) |
| Spindle bore | mm | 48 |
| Bar capacity | mm | 45 |
| Spindle bore taper | - | 40° |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 150-2000 |
| X/Z axis | N.m | Servo 4/4 |
| Turret/tool post | - | 4-station electric tool post (gang type tool post) |
| Tool size | mm | 20×20 |
| Tool post repeat positioning accuracy | mm | ≤0.004 |
| X axis travel | mm | 300 |
| Z axis travel | mm | 300 |
| X axis rapid traverse | mm/min | 8000 |
| Z axis rapid traverse | mm/min | 10000 |
| Tailstock quill diameter | mm | Φ52 |
| Tailstock quill travel | mm | 90 |
| Tailstock taper | MT4 | |
| Main motor Power | kw | 4 |
| Frequency changer’s motor | kw | 5.5 |
| Net weight | kg | 950 |
