Product Main Technical Parameters

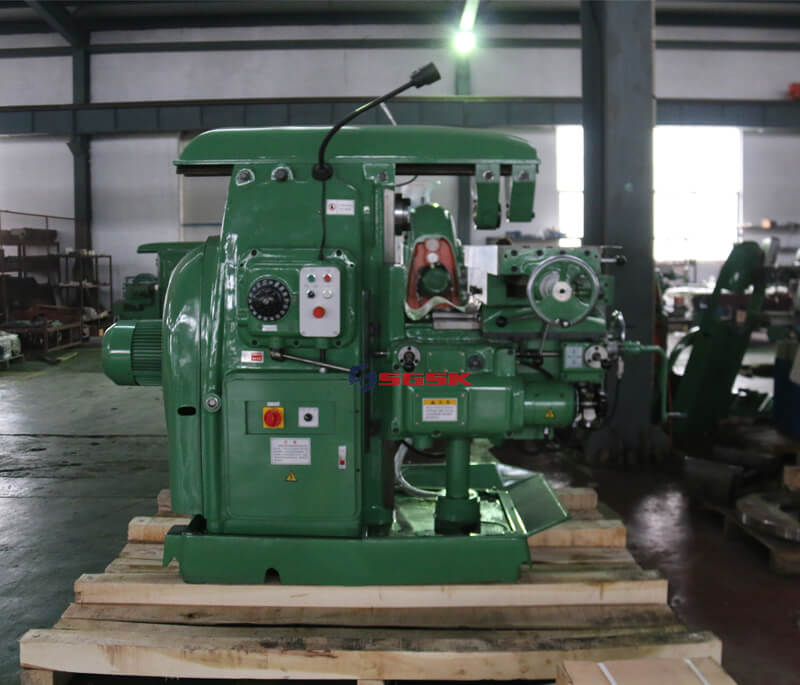

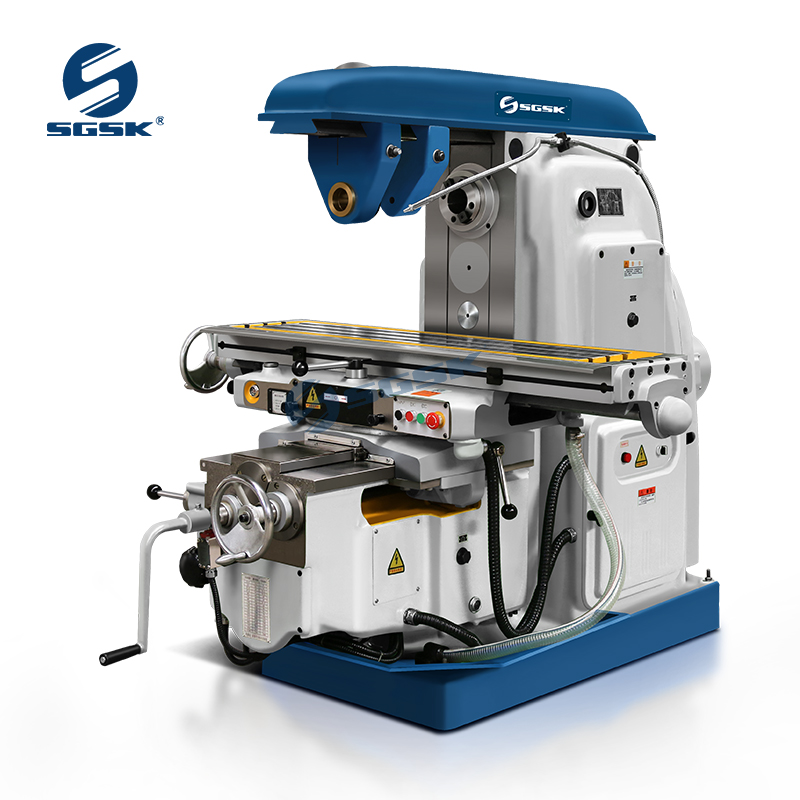

Horizontal Milling Machine main performance characteristics：
X, Y, Z axis super audio hardened guide rail and high precision grinding
Manual lubricating device can be used to lubricate the lead screw and guide rail.
Special accessories: vertical milling head, it can achieve the function of vertical milling.
Horizontal Milling Machinet main technical parameters:
| Specifications | Item | X6136 |
| Spindle taper | 7：24 ISO50 | |
| horizontal spindle center to the working table surface | mm | 0-420 |
| Horizontal spindle center to ram | mm | 175 |
| Spindle speed range | r/min | 60-1800（12 steps） |
| Working table size | mm | 1320*360 |
| Max.swivel angle of working table | ±30 | |
| Spindle travel(longitudinal/cross/vertical) | mm | 1000*280*400 |
| Working table feed speed longitudinal/cross | mm/min | 22-555（8 steps）（rapid speed 810） |
| Vertical lift speed of working table | mm/min | 590 |
| T-slot (number/width/pitch) | mm | 3/18/80 |
| Beam travel | mm | 500 |
| Main spindle motor | kW | 4 |
| Feed motor power | W | 1100 |
| Lift motor power | W | 1100 |
| Coolant pump motor power | W | 90 |
| Coolant pump flow | L/min | 25 |
| N.W./G.W. | kg | 2300/2400 |
| Machine size | mm | 1900*1830*2000 |
