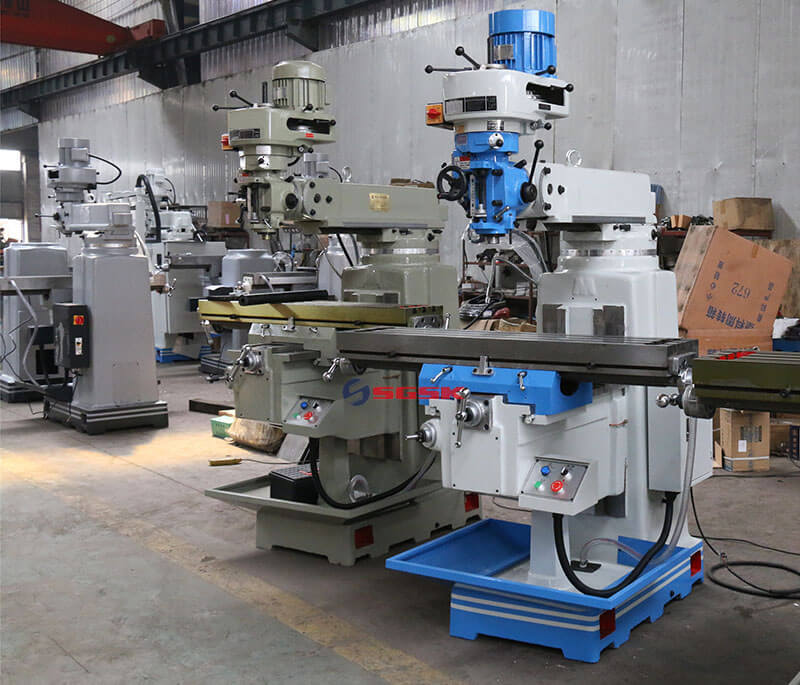

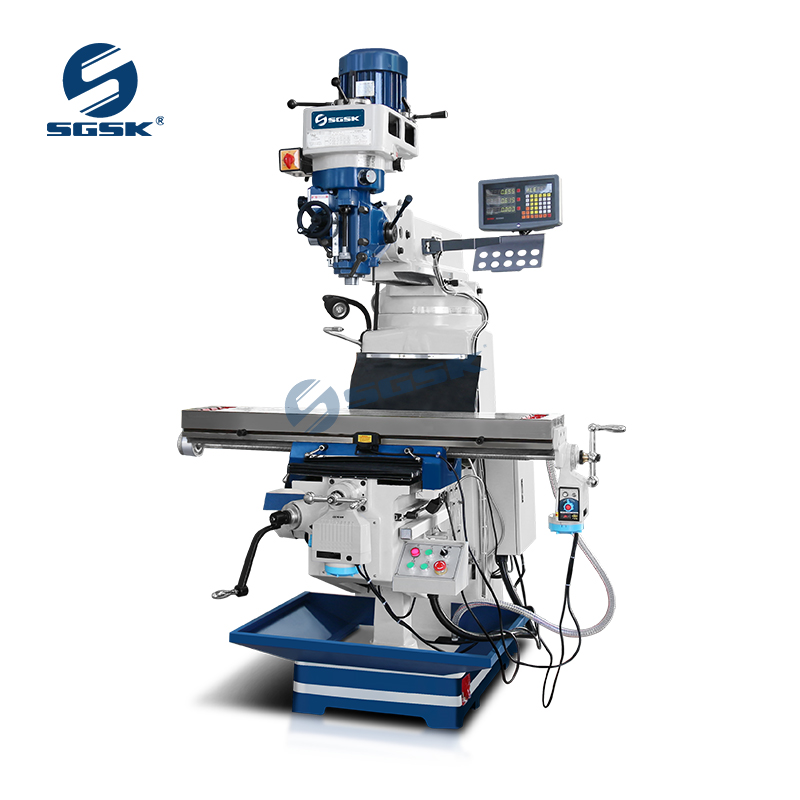

5H Turret Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Turret Milling Machine Main Performance Characteristics：

1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.

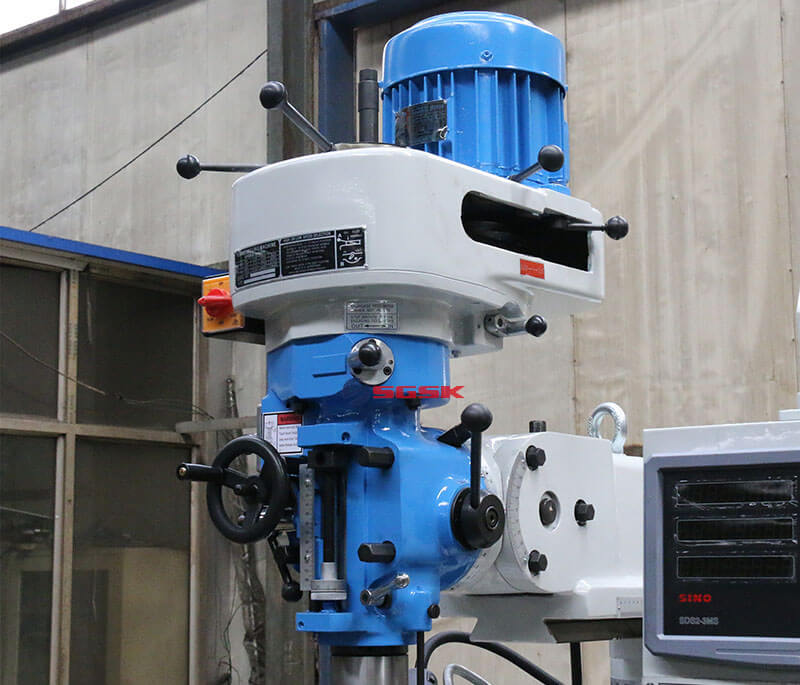

2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.

3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.

4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.

Turret Milling Machine Application：

The milling machine is a kind of universal light duty metal cutting machine,

Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..

Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Turret Milling Machine Main Technical Parameters:

Specifications	Units	4H	5H
Table size	mm	1270x254(10”x50”)	1370x305(12”x54”)
Table travel	mm	780/400/420	780/ 420 /420
T slot(number-width-pitch)	mm	3-16-50	3-16-65
Spindle taper		standard:R8optional:ISO40	standard:R8Optional :ISO40
Spindle speed range	rpm	standard:（16 steps）50HZ:65-4500 60HZ:80-5440
Spindle speed range	rpm	optional（variable）65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15(3 steps)	0.04,0.08,0.15(3 steps)
Distance between spindle nose and table surface	mm	90-510	90-510
Main motor power	kw	2.2	2.2
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1400	1600
Overall dimension	mm	1550x1650x2250	1550x1650x2250
