Product Model:

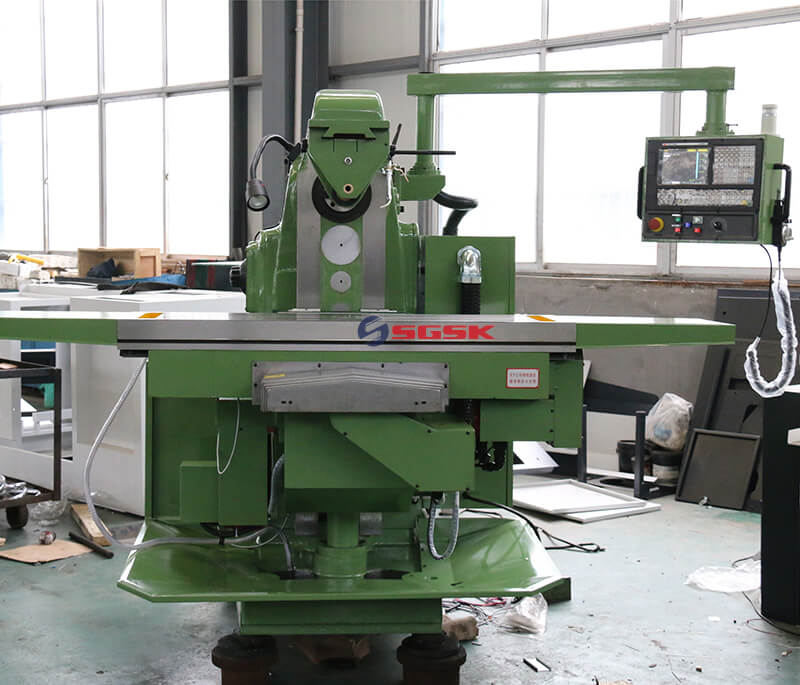

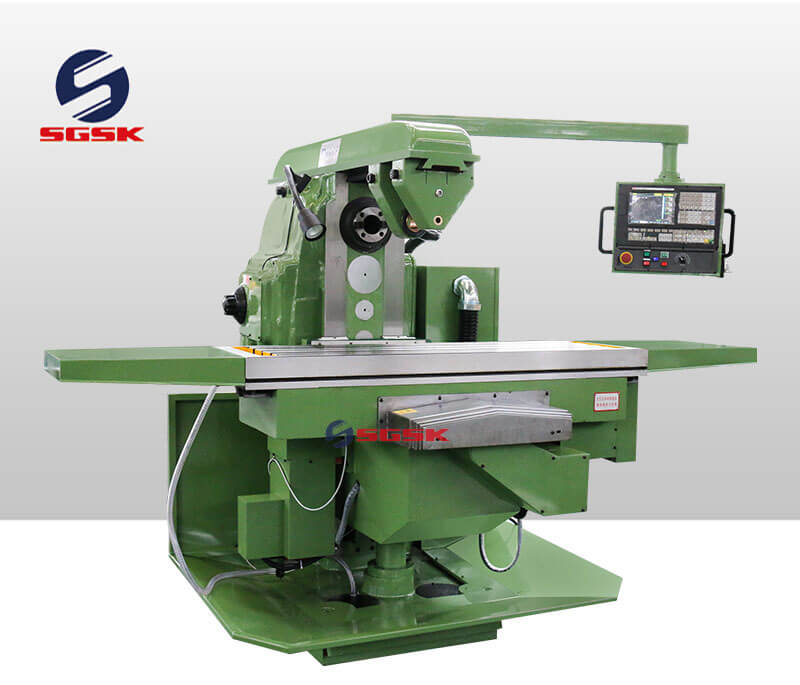

XK6132 XK6140 CNC Horizontal Milling Machine

Product Main Technical Parameters

CNC Horizontal Milling Machine Main Performance Characteristics:

1.CNC horizontal lifting platform milling machine is good rigidity, can bear heavy load cutting work.

2, CNC horizontal type lifting platform milling machine with enough power and wide range of spindle speed. High speed cutting can be made by using hard alloy cutter, and the cutting efficiency can be fully played.

3, the spindle speed has impulse device, easy to change, the machine can quickly and effectively brake.

4, machine tool and important mechanical parts are manufactured from the alloy steel, easy to wear and tear of the parts are made of wear resistant material, Plastic guide rail , to ensure the machine has enough service life.

5.CNC horizontal lifting platform milling machine three motion are limiting device to ensure the safety of workers and machine tool, but also can be used as the multi machine tool management.

6, CNC horizontal lifting platform milling machine has a perfect lubrication system, Important transmission parts and bearings have perfect lubrication device,At the same time an set indicator for Conduct  regular inspection

7, Good reliability, economical and practical, the price function than good


CNC Horizontal Milling Machine Application:

1. Horizontal lifting platform milling machine is available on a variety of cylindrical milling cutter, wafer type milling cutter, angle cutter, molding cutter and milling processing of various plane, inclined plane, such as grooves.

2. If you use the appropriate milling machine accessories, processing gear, cam, an arc-shaped groove and a helical surface of special shape of parts,

3. Configuration universal milling head, circular table and indexing head and so on milling attachment,Can further expand the scope of the milling machine, this machine is applicable to all kinds of mechanical processing industry.


CNC Horizontal Milling Machine Main Technical Parameters:

SpecificationsUnitsXK6132XK6140
Table sizemm1320x3201700x400
Table travel (X.Y.Z)mm900x290x350920x380x350
T-type slot  numbers / width /spacemm3-18-803-18-90
Max. load working tablekg320500
Distance from spindle axis to tablemm20-37030-410
Distance from column vertical guide way to the center of tablemm225-505275-625
Rapid feed speed(X.Y.Z)mm/min6000/3000/60006000/3000/6000
Feed speed (X.Y.Z)mm/min6-3200/3-1600/6-32006-3200/3-1600/6-3200
Spindle taper
ISO50(7:24)ISO50(7:24)
Spindle speed rangerpm30-1500(18 steps)30-1500(18 steps)
Spindle motor powerKW7.511
Longitudinal, transverse feed motor torque(X.Y)N. m1212
Vertical feed motor torque (Z)N. m2222
Max. spindle torqueN. m10001000
Overall dimensions(Lx W x H)mm2300x2055x24002400x2200x2400
Machine weightKg30004250
