Product Main Technical Parameters
| Specifications | Units | X5028 |

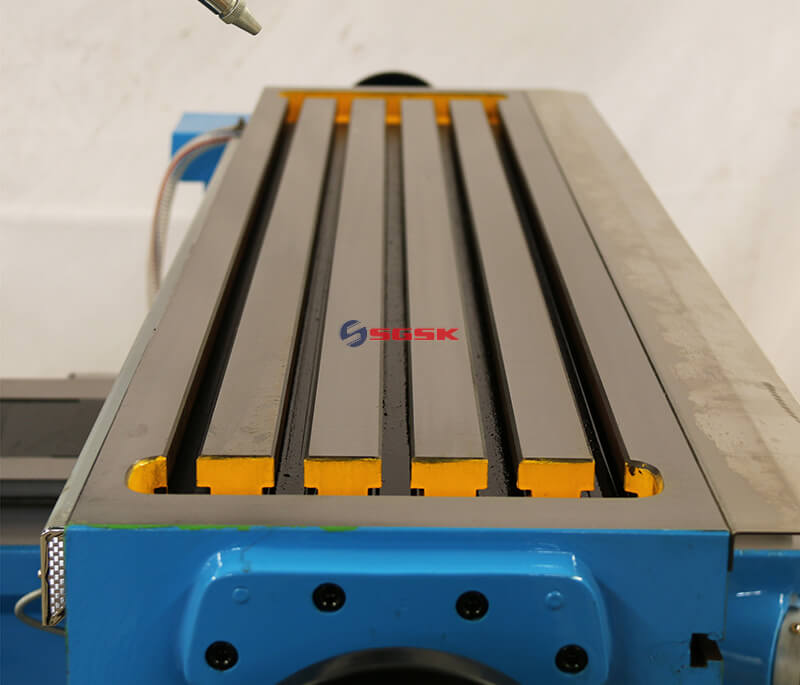

| Table size | mm | 1200×280 |
| Table travel | mm | 650/320/350 |
| T slot(number-width-pitch) | mm | 3-14-50 |
| Spindle taper | ISO40 7:24 | |
| Spindle speed range | rpm | 40-1300(12steps) |
| Distance between spindle nose and table surface | mm | 50-400 |
| Distance between spindle axis to column surface | mm | 320 |
| Main motor power | kw | 3 |
| Weight | kg | 1500 |
| Overall dimension | mm | 1700×1700×1850 |
