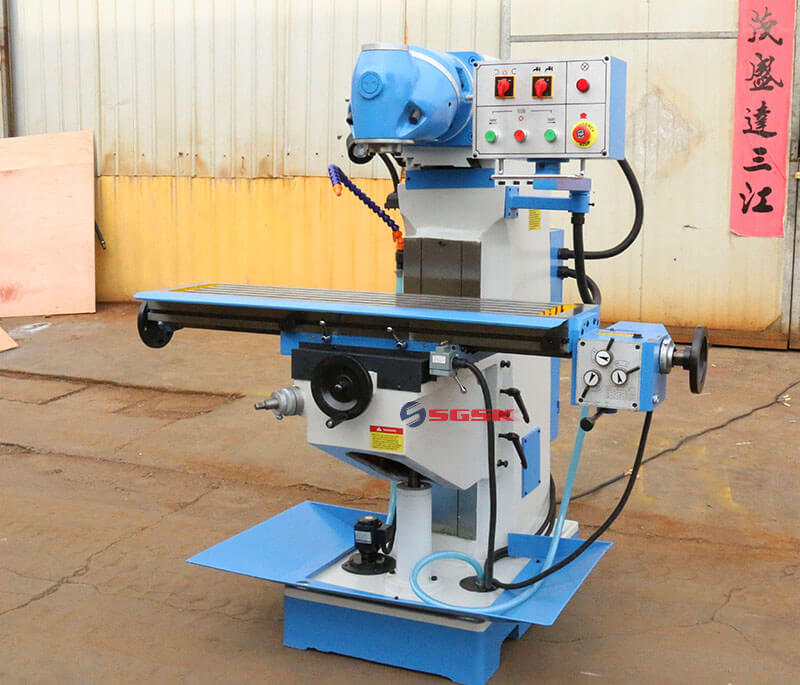

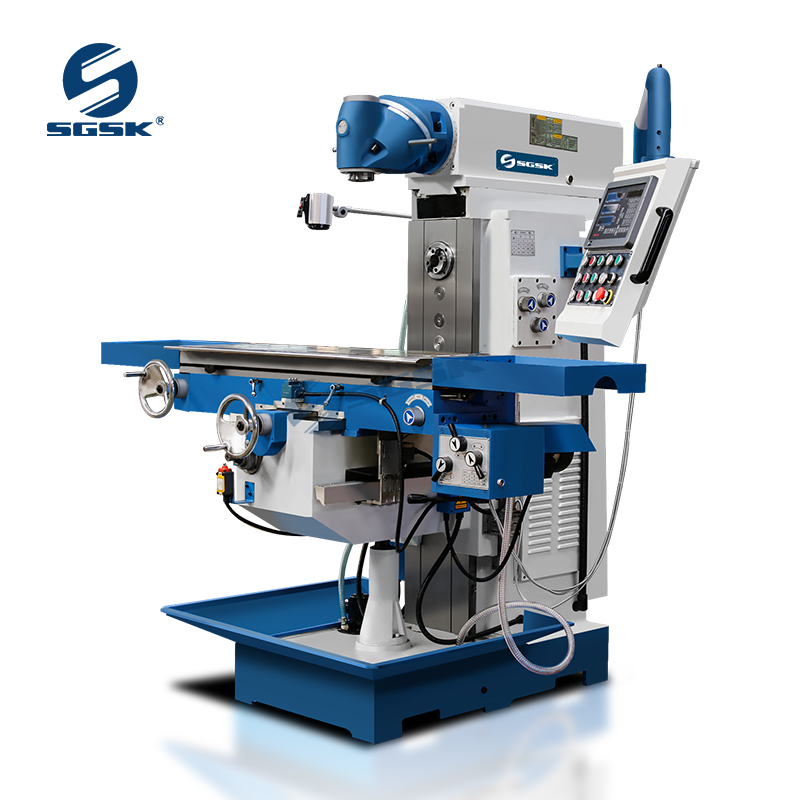

X6226 Swivel Head Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Swivel Head Milling Machine main performance characteristics：

1.It can realize vertical and horizontal milling two processing function;

2.The two rotary milling head, spindle at any angle rotating and adjustment;

3.Can be used for processing and mold shell;

4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.

5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable

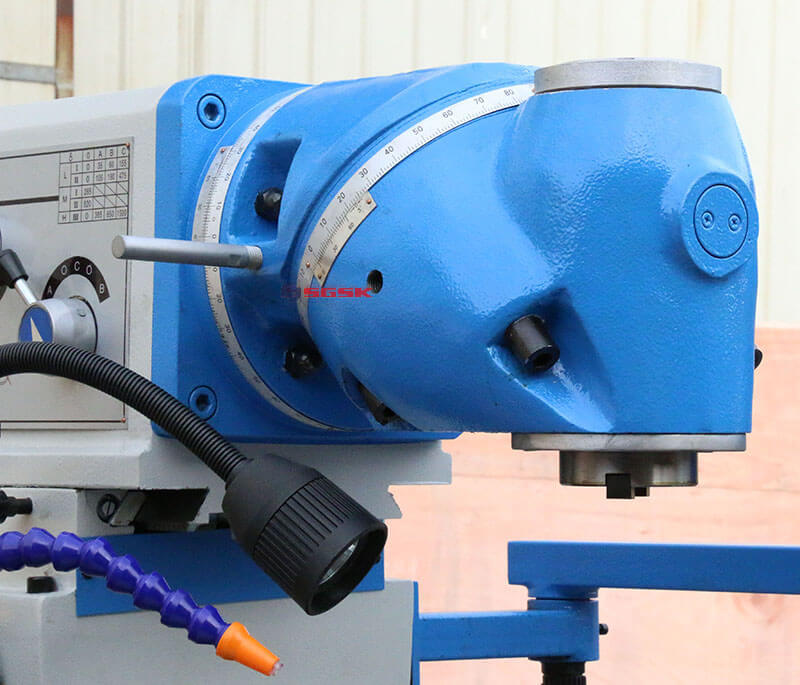

6.Spindle two head design, can easily achieve vertical, horizontal milling conversion and arbitrary angle combination, and stiffer than the three section head has greatly improved.

7.Two heads configuration precision positioning pin , accurate vertical horizontal milling conversion, more convenient operation.

Swivel Head Milling Machine Application：

1, Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.

2, Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. 3, Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Swivel Head Milling Machine main technical parameters:

Specifications	Units	X6226
Table size	mm	1120x260
Table stroke (X/Y/Z )	mm	580/270/400
Distance from spindle nose to table surface	mm	100-500
Distance from spindle center to column suface	mm	0-500
T slot number/size/width	mm	3/14/63
Spindle taper		ISO40 7:24
Spindle speed range	rpm	35-1600rpm

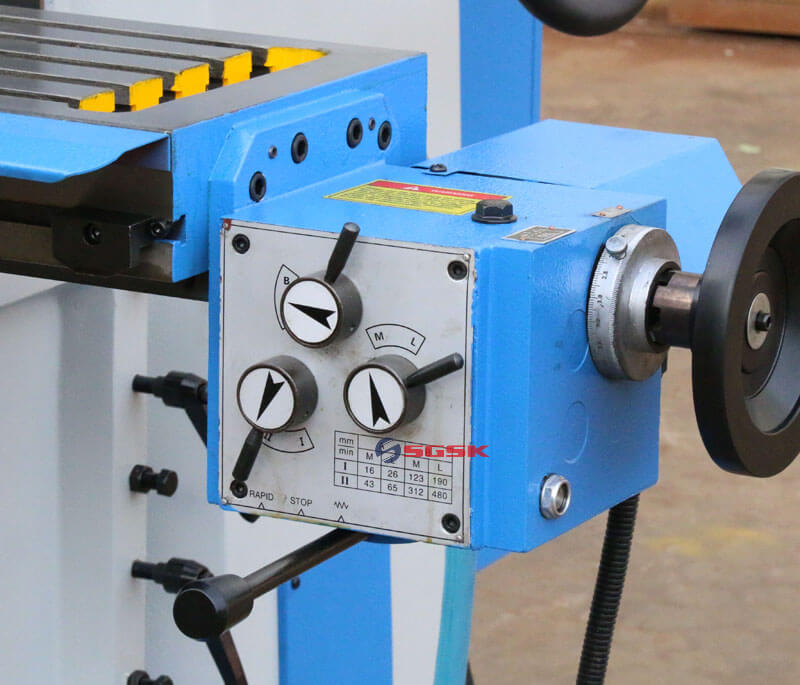

Worktable feed speed range	mm/min	18-308 (8 steps )
Swivel angle of swivel head		360°
Spindle motor power	KW	2.2
Worktable feed motor power	W	250
Coolant pump motor power	W	90
Cooling pump flow	L/min	25
Overall dimensions	mm	1655x1500x1750
Machine weight	Kg	1150/1300
