Product Model:

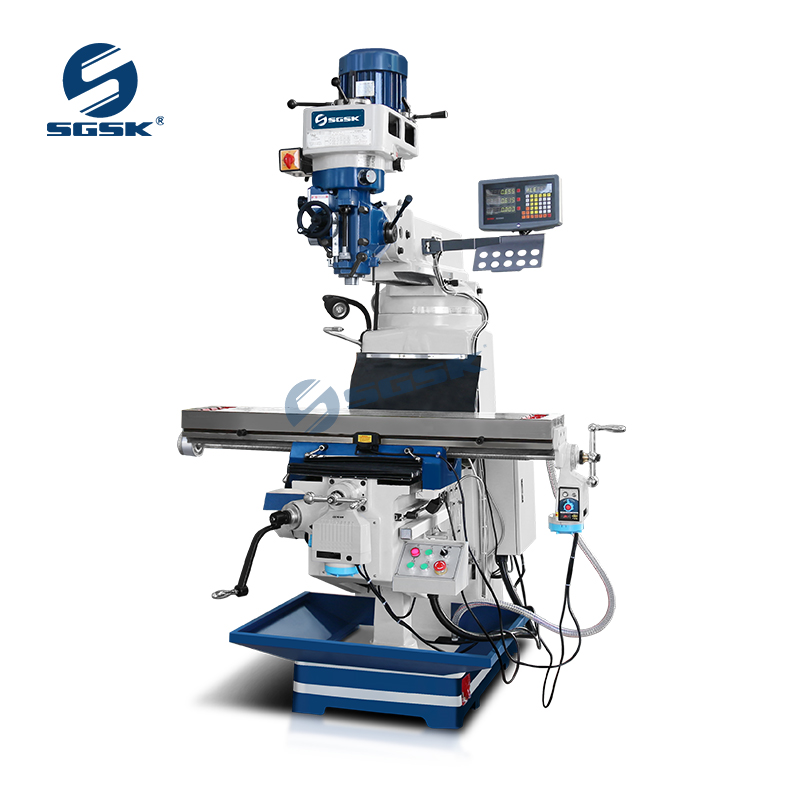

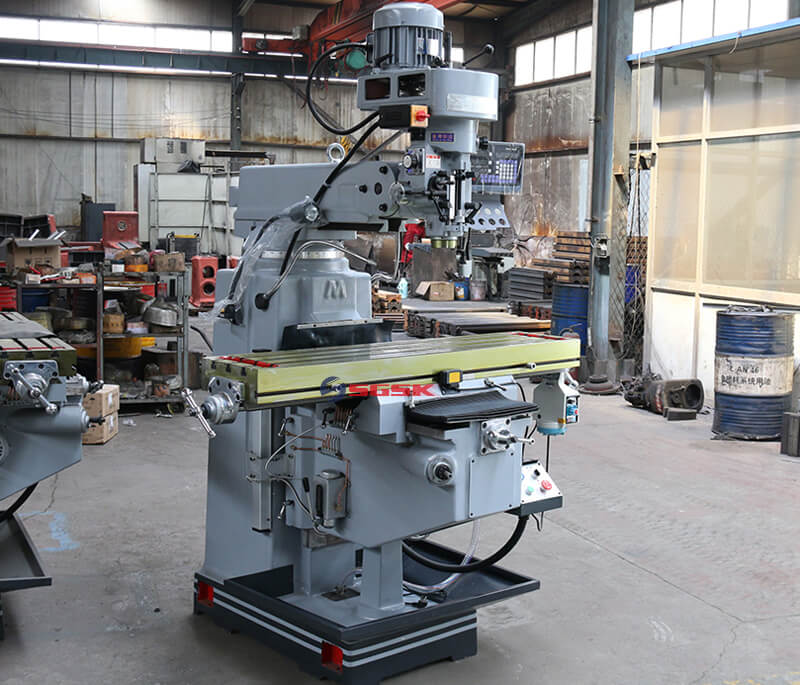

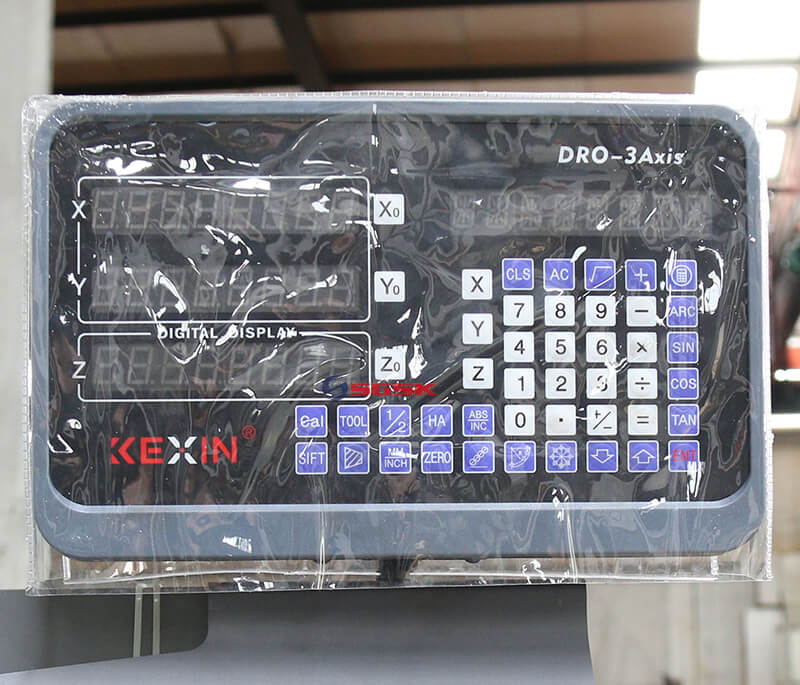

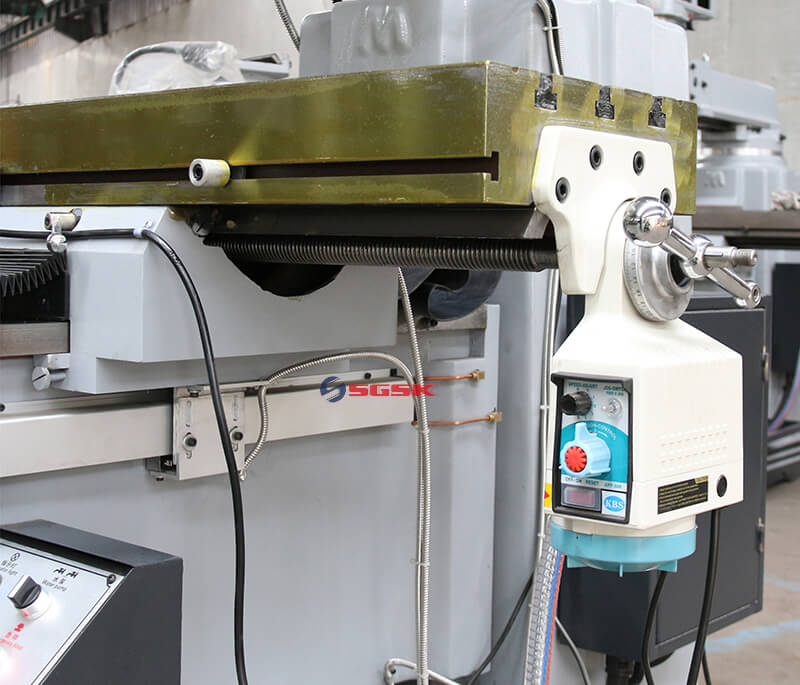

4H Turret Milling Machine

Product Main Technical Parameters

Turret Milling Machine Main Performance Characteristics

1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.

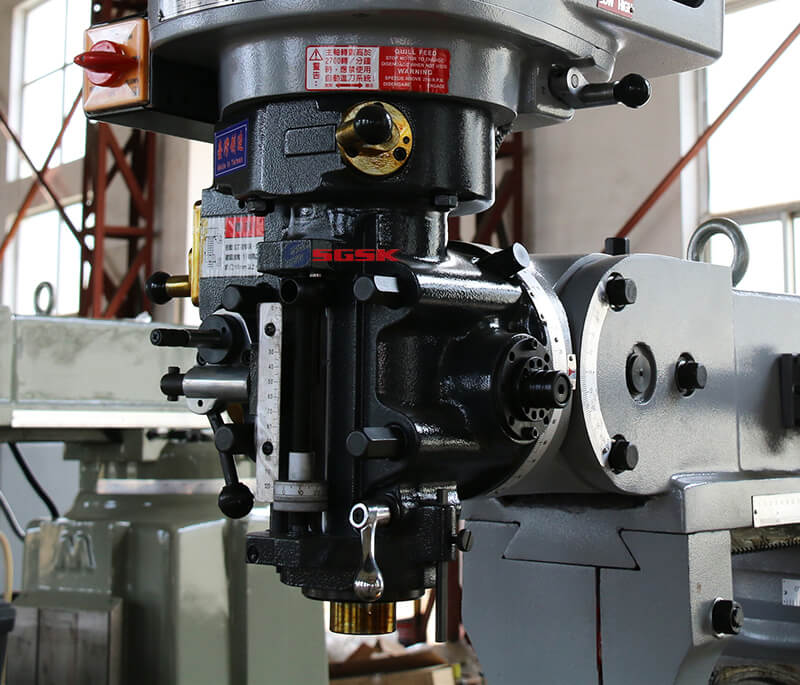

2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.

3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.

4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.


Turret Milling Machine Application

The milling machine is a kind of universal light duty metal cutting machine,

Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..

Widely used in mechanical processing, mold, equipment, instrumentation and other industries.


Turret Milling Machine  Main Technical Parameters:

SpecificationsUnits4H5H
Table sizemm1270x254(10”x50”)1370x305(12”x54”)
Table travelmm780/400/420780/ 420 /420
T slot(number-width-pitch)mm3-16-503-16-65
Spindle taper
standard:R8optional:ISO40standard:R8Optional :ISO40
Spindle speed rangerpmstandard:(16 steps)50HZ:65-4500 60HZ:80-5440
optional(variable)65-4000
Spindle travelmm127127
Spindle feed rangemm0.04,0.08,0.15(3 steps)0.04,0.08,0.15(3 steps)
Distance between spindle nose and table surfacemm90-51090-510
Main motor powerkw2.22.2
Head rotation (left - right )°±90°±90°
Head rotation (front - rear)°±45°±45°
Weightkg14001600
Overall dimensionmm1550x1650x22501550x1650x2250
