Product Model:

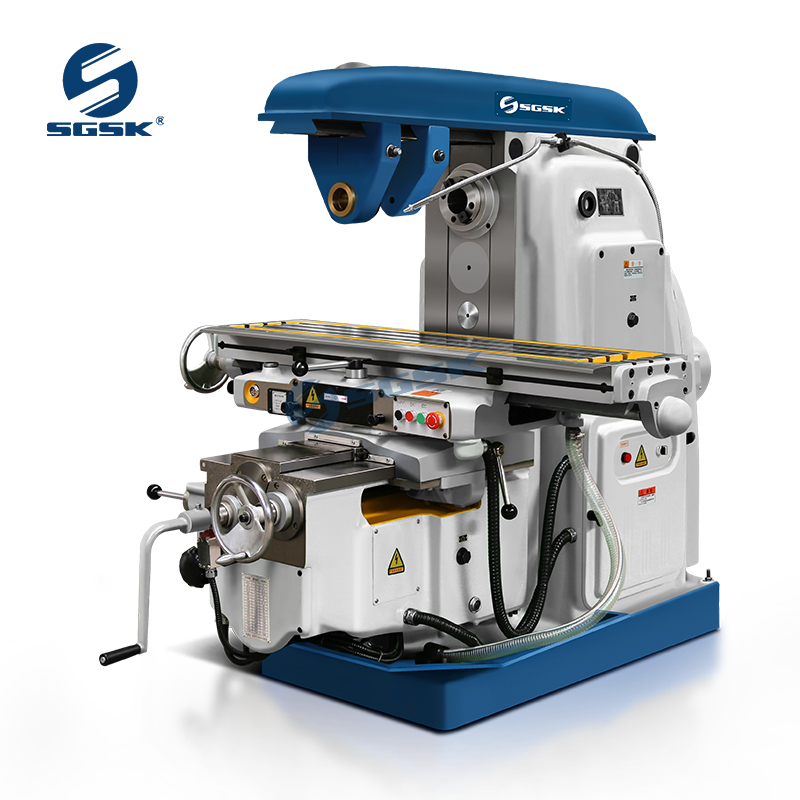

X6140 Horizontal Milling Machine

Product Main Technical Parameters

Horizontal Milling Machine Main Performance Characteristics

1. Using rectangular guide machine is Rigid good,

2. Work table and guide rail through the ultra audio spark quenching.

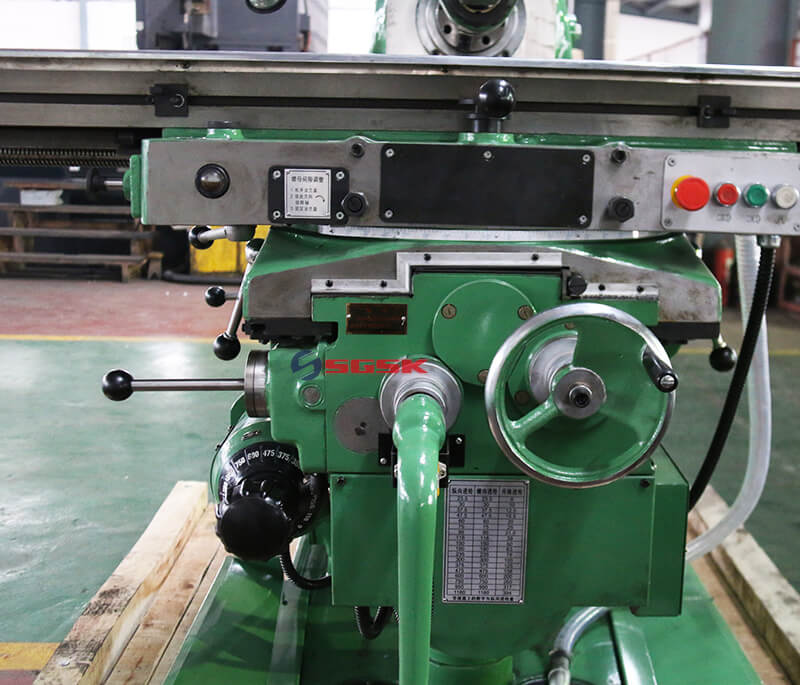

3. Work bench X. Y.Z  are gear drive automatic feed and manual operation


Horizontal Milling Machine Application

1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.

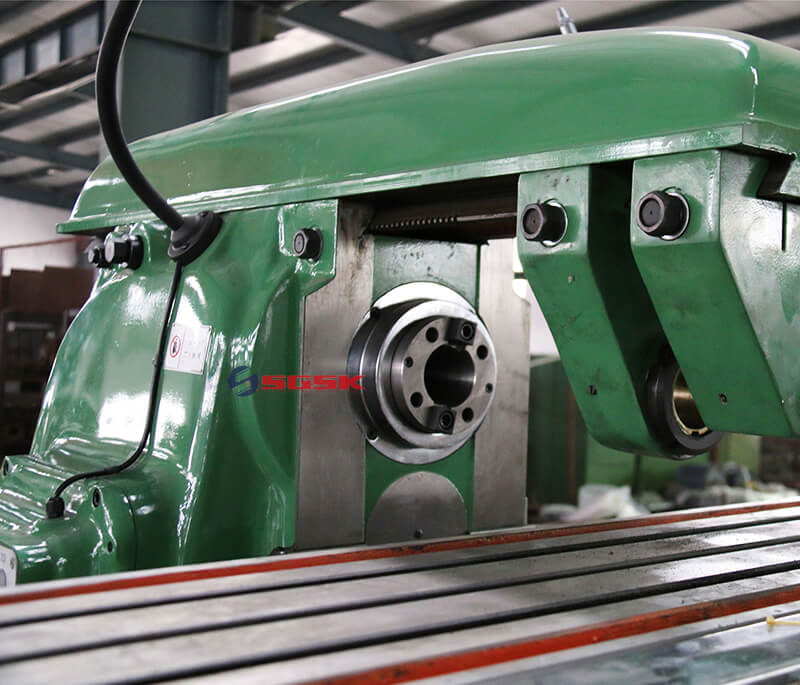

2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.

3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.


Horizontal Milling Machine Main Technical Specifications:

SpecificationsUnitsX6140
Table sizemm1700×400
Table loadkg800
T slot(number-width-pitch)mm3-18-90
Table travelmm900/880315/300350/330
Range of table feedmm /minXY:23.5-1180Z:8-394
Rapid speed of tablemm /minXY:2300Z:770
Spindle taper
ISO50 7:24
Spindle speed rangerpm30-1500 (18 steps)
Swivel angle of table°±45
Distance between spindle axis and table surfacemm30-380
Spindle motor powerkw11
Feed motor powerkw1.5
Weightkg3950/4200
Overall dimensionmm2560×2160×2100
