Product Main Technical Parameters
| Specifications | Units | X6128A | X6128C |

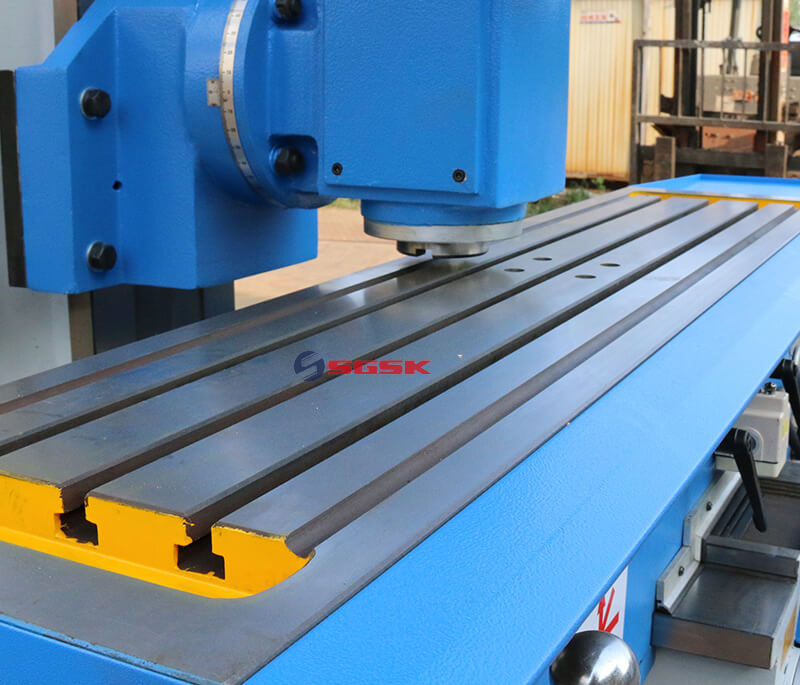

| Table size | mm | 1200×280 | 1200×280 |
| Table stroke | mm | 620/260/400 | 620/260/400 |
| T-type slot (numbers / width /space) | mm | 5/14/50 | 5/14/50 |
| Distance from spindle axis to table surface | mm | 110～510 | 110～510 |
| Spindle taper | 7:24 IS040 | 7:24 IS040 | |
| Spindle speed range | rpm | 8 steps 13～265 | 8 steps 32～840 |
| Spindle motor power | KW | 3 | 3 |
| Overall dimensions | mm | 1725×1450×1750 | 1725×1450×1750 |
| Machine weight | Kg | 1350 | 1380 |
