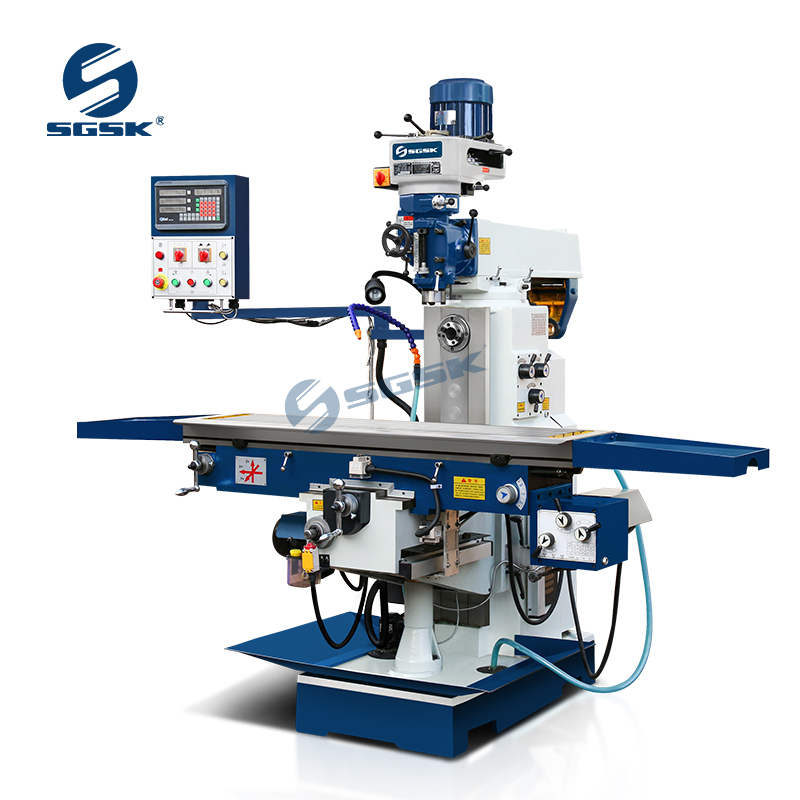

X6336 Turret Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Specifications	Units	X6336
Table size	mm	1500×360
Table travel	mm	1000/320/450
T slot(number-width-pitch)	mm	3-18-80
Spindle taper		ISO40 7:24 (V) ISO50 7:24 (H)
Spindle speed range	rpm	(V) 50HZ:65-4500 60HZ:80-5440 (16 steps)(H) 60-1800(12steps)
Spindle speed range	rpm	Optional:（variable）65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)
Distance between spindle nose and table surface	mm	140-590
Distance between spindle axis and table surface	mm	0-450
Main motor power	kw	3.7(V)4(H)
Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	2400
Overall dimension	mm	2600×2200×2550
