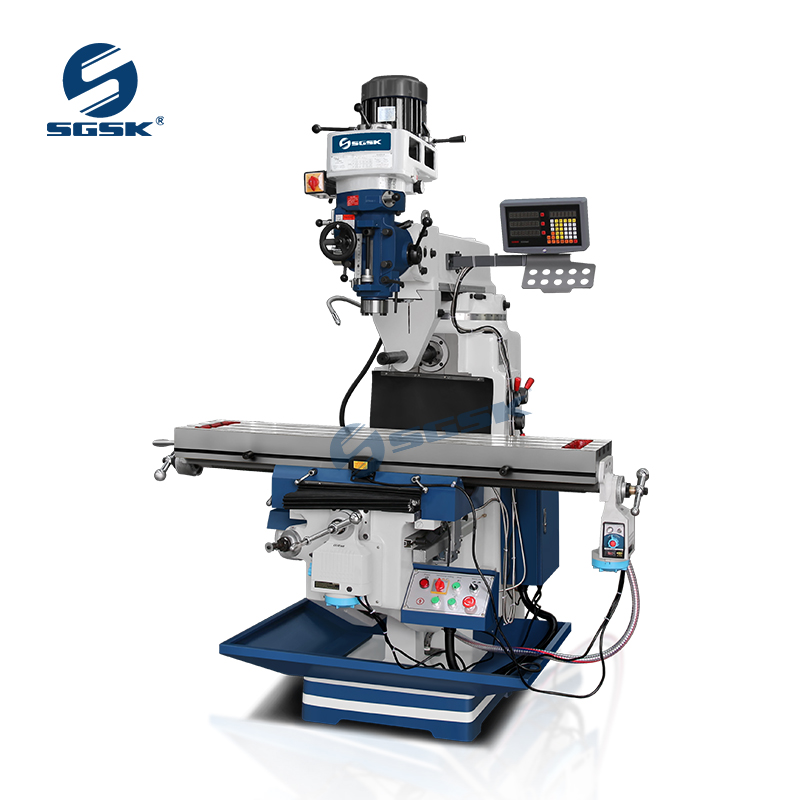

Product Main Technical Parameters
| Specifications | Units | X6325 |
| Table size | mm | 1270x254(10”x50”) |
| Table travel | mm | 780/400/400 |
| T slot(number-width-pitch) | mm | 3-16-50 |
| Spindle taper | standard:R8 Optional:ISO40 | |
| Spindle speed range | rpm | standard:16 steps50HZ:65-4500 60HZ:80-5440 |
| optional（variable）65-4000 | ||
| Spindle travel | mm | 127 |
| Spindle feed range | mm | 0.04,0.08,0.15(3 steps) |
| Distance between spindle nose and table surface | mm | 90-510 |
| Distance between spindle axis and table surface | mm | - |
| Main motor power | kw | 2.2 |
| Head rotation (left - right ) | ° | ±90° |
| Head rotation (front - rear) | ° | ±45° |
| Weight | kg | 1400 |
| Overall dimension | mm | 1550x1650x2250 |
