Product Main Technical Parameters
CNC lathe Machine Main Performance Characteristics：
Widening high stability bed
Two gear spindle speed,stepless in gear
Wider layor board
Intergrated automatic lubrication system
CNC lathe Machine Application：
The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .
This machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
CNC lathe Machine Main Technical Specifications:
| Specifications | Unit | CK6136 |
| Max.swing over bed | mm | 360 |
| Max.swing over cross slide | mm | 150 |
| Distance between centers | mm | 1000/1500 |
| X/Z axis travel | mm | X:220 Z:1050/1600 |
| Spindle transmission type | Mechanical 2 gear transmission ,in gear variable speed | |
| Spindle speed steep | variable | |
| Spindle speed | rpm | L:70～560，H:200～1600 |
| Spindle nose | C6 | |
| Thru-hole dia.of spindle | mm | 52 |
| Spindle taper | MT6 | |
| Spindle motor | KW | 5.5 |

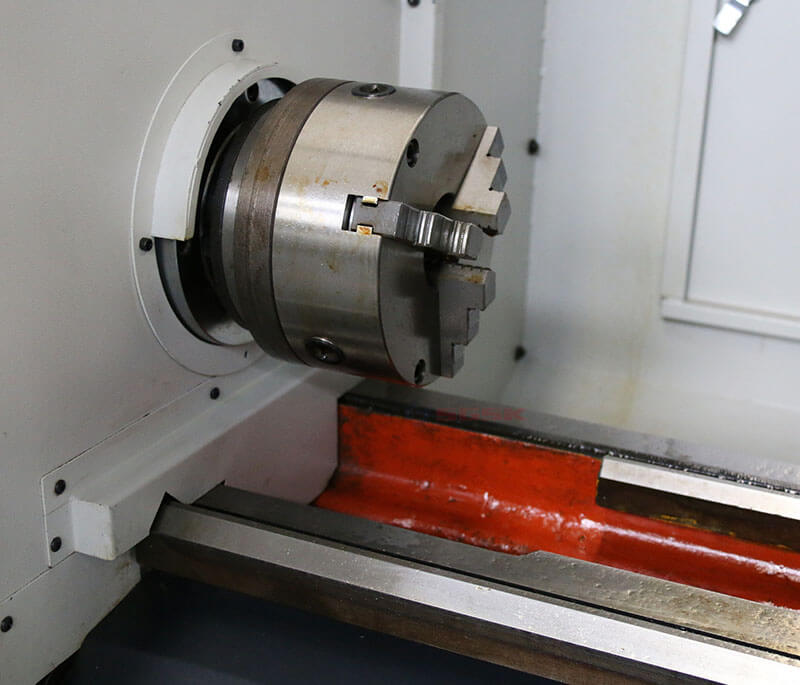

| Chuck size | mm | 200 |
| Ball screw dia.and pitch | mm | φ25X6/φ40X8 |
| X/Z axis feed motor torque | N.m | X:6 Z:10 |
| X/Z axis feed motor power | KW | X:1.5 Z:2.5 |
| X/Z axis fast moving speed | mm/min | X:6000 Z:8000 |
| X/Z axis Position accuracy | mm | 0.02/0.025 |
| X/Z axis repeatability | mm | 0.01/0.015 |
| Processing accuracy | IT6-IT7 | |
| Workpiece surface roughness | Ra1.6 | |
| Tailstock sleeve dia. | mm | 65 |
| Tailstock sleeve travel | mm | 140 |
| Tailstock sleeve taper | # | MT4 |
| Guide form | spindle mountain+flat rail | |
| Total power capacity | KVA | 10 |
| Machine dimension(L* W* H） | mm | 2500/3000*1500*1650 |
| N.W. | kg | 1500/2000 |
